WATERBURY-FARREL #ZR24-14, ROLLING MILL

ZR24-14 SPECIFICATIONS

MATERIAL - STAINLESS STEEL ALLOYS, CARBON STEEL ALLOYS

WIDTH 14" MAX TO 7" MIN

THICKNESS RANGE .05" MAX - TYPICALLY .032 to .0015

MAXIMUM TENSION - 7000 POUNDS 500 PIW

SPEED - MAXIMUM 1000 FPM

LIE DIRECTION - LEFT TO RIGHT

POWER 3 PHASE 480 VAC

PAYOFF 16" NPMONAL 14.5" TO 17.5" FULLY EXPANDED

PAYOFF COIL SIZE 16" TO 52" OD

PAYOFF HOLD DOWN ROLL WITH HYDRAULICALLY DRIVEN PINCH ROLL

PAYOFF TENSION BY AIR BRAKE

WINDER TYPE - REVERSE PYRAMID 16" ID TO 52" OD BUILT BY I2S

HYDRAULIC STRIPPER & GRIPPER

WINDER POWERING 250 HP 500/1500 RPM @ 345 VOLTS DC

WINDER GEARBOX - HORSEBURG SCOTT RATION 7.35 TO 1

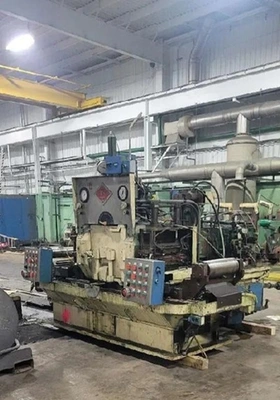

MILL HOUSING TYPE SENDZIMIR ZR 24-14 20 HI BUILT BY WF

MILL POWER 300 HP 862/1725 RPM 345 VDC

MILL STRIP WIPERS AND LOAD CELL TENSIOMETERS

MILL SCREWDOWN - MOOG SERVO VALVE DIGITAL POSITION CONTROLLED

MATERISL HANDLING EQUIPMENT

QTY 3 AUTOQUIP SCIZZORS TYPE COIL CARS WITH SELF CONTAINER HYDRAULICS

PAYOFF - DRIVEN ROLLER TYPE DECK WINDERS - V TYPE DECKS

MAX COIL WEIGHT RATING IS 9000 POUNDS

TRAVERSE SPEED 40 FPM MAXIMUM

COIL NESTS - 3 COIL STORAGE RAYED AT 21.000 POUNDS

FUME HOODS, FUME FILTER, AND EXHAUSE 17,000 CFM

SPARES:

MILL INCLUDES A COMPLETE SET OF BACKING ASSEMBLIES

NUMEROUS WORK AND INTERMEDIATE ROLLS AND NEW BEARINGS

DETAILED DOCUMENTATION INCLUDED

MILL REQUIRES THICKNESS GAUGES, ELECTRICS, HYDRAULIC, AND COOLANT SYSTEM.
