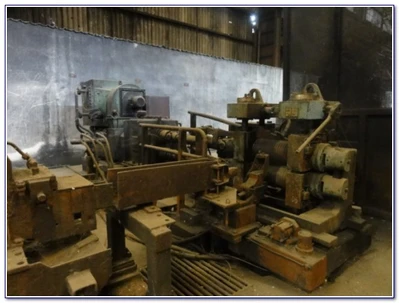

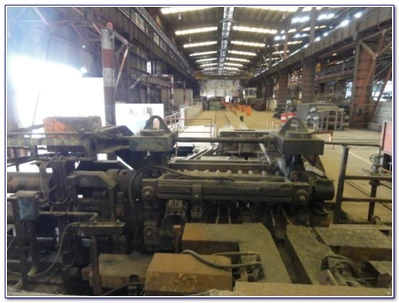

11 STANDS DANIELI BAR MILL

Year: 1995

Production Capacity: 270,000 Tons / Year.

Reheating Furnace: 50 Ton / H.

Mill Arrangement: Horizontal

Billet Size:120 X 120 / 130x130 / 140x140 / 130x190 X 6000 Mm

Finished Products: 10mm to 32mm

Round Deformed Bar

COMPONENTS:

REHEATING FURNACE

(1) Pusher Type, Natural Gas

DANIELIi ROUGHING MILL

2hi, Reversible Stand, Up to 7 Passes, Nominal

Production

(1) 2hi Reversible

Roll Size: 600mm Diameter X 1800mm Width

Stand Type P641

Motor 1500 Kw, Dc, Reversible

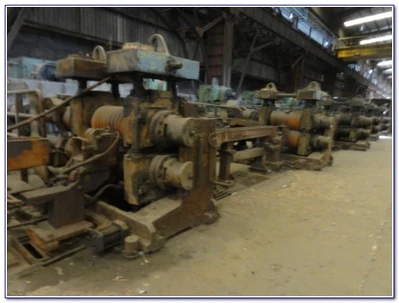

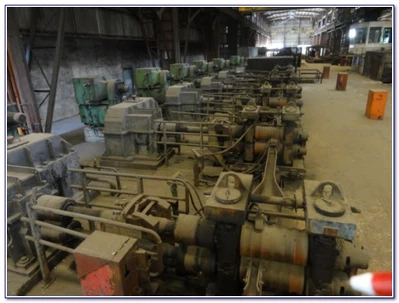

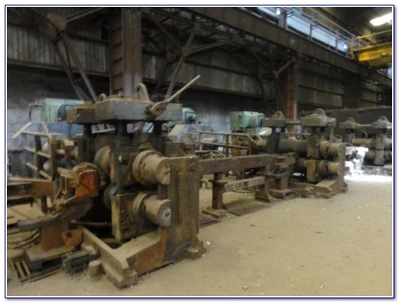

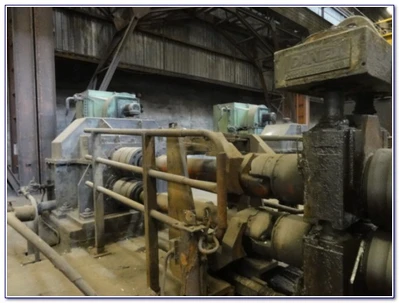

DANIELI ROLLING MILL, Continuous Train

10 Stands, Horizontal

Intermediate Mill

(5) Stands: 480mm Diameter X 814mm Width, Stand Type P635

Stand 2, 3, 4, 5 & 6 (600kw Motors Dc)

(2) Stands: 420mm Diameter X 814mm Width, Stand Type 635

Stand 7 and 8 (600 Kw Motors Dc)

(3) Stands: 320mm Diameter X 480mm Height, Stand Type

Stand 9, 10 and 11 (500 Kw Motors Dc)

Shears

(1) Shear Cv1, Brake/Clutch Type, Before 2nd Stand In Continuous Train

(1) Shear Cv2 Between Stands # 7 And 8, Brake/Clutch Type

(1) Shear Cv3, Brake/Clutch Type.

Hardening and Tempering System

(1) 2 Wire Drawer

(1) 1 Wire Drawer

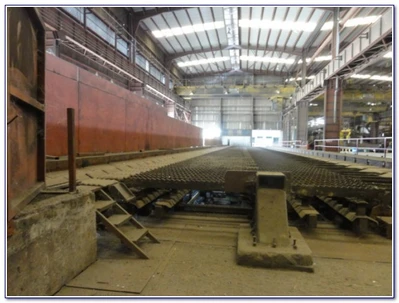

Cooling Trough, 8.13 Meters X 54 Meter Length

Hydraulic Discharge System

Cut to Length Shear, Cold

Fixed Base Shear With Movable Stop For Measurement Between 6m - 14 M

6 to 14 Meter Length

Packaging System

Roller Conveyor, Elevator

Ats Strapping & Marking, Single Or Double Strapping

Packaging Evacuation System With Transferring Chains

(2) Scales

Length: 6 Meter
