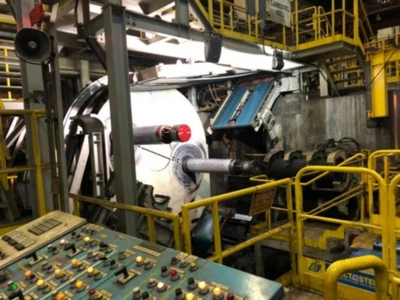

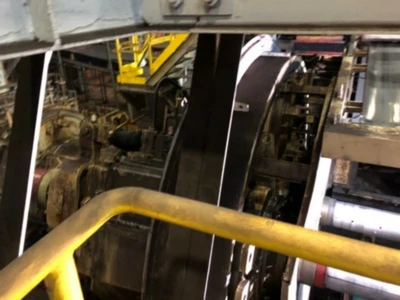

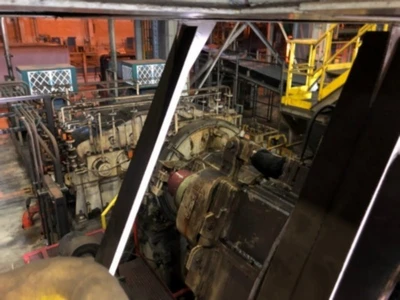

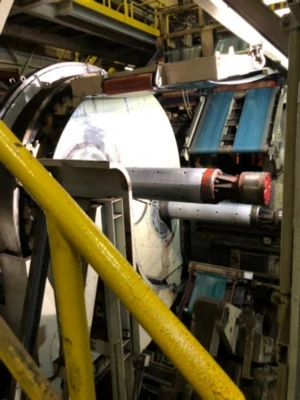

54" (1400mm) x 60,000# KAWASAKI-MITSUBISHI DOUBLE MANDREL CAROUSEL RECOILING

DESCRIPTION:

THIS DOUBLE MANDREL CAROUSEL RECOILING SYSTEM ENABLES A PROCESS LINE TO RUN

CONTINUOUSLY AND EFFICIENTLY ALLOWING FOR A FINISHED COIL TO BE WOUND ON THE

FIRST RECOIL MANDREL AND COIL REMOVED AS THE SECOND MANDREL IS POSTIONED TO

RECEIVE THE INCOMING COIL. DOUBLE MANDREL CAROUSEL SYSTEM IS CURRENTLY

INSTALLED ON CONTINUOUS ANNEALING LINE FOR TINPLATE AND SHEET STEEL

PRODUCTION.

GENERAL DESCRIPTION:

MANUFACTURER - KAWASAKI MITSUBISHI

EXIT SPEED TIN PLATE - 2300 FPM

EXIT SPEED SHEET - 12078 FPM

TINPLATE THICKNESS RANGE - 0.203MM - 0.381MM

SHEET THICKNESS RNAGE - 0.305MM - 1.626MM (DQSK/DDQ - 0.305MM - 1.2MM)

WIDTH TINPLATE - 635-1016MM

WIDTH SHEET - 609.6 - 1371.6MM

COIL WEIGHT MAX - 30 TON

COIL ID - 420MM - 508MM (WITH RUBBER SLEEVE)

COLLAPSED ID - 387.5MM

COIL OD MAX - 1981MM

COIL OD MIN TINPLATE - 1019MM

COIL OD MIN SHEET - 838MM

LINE DIRECITON - RIGHT TO LEFT

GENERAL COMPONENT LIST FOR DOUBLE CAROUSEL RECOILING SYSTEM

ROCKING TYPE FLYING EXIT SHEAR W/ PINCH ROLL

150 HP/110 KW, 515 RPM DC MOTOR W/ GEARBOX AND COUPLING

80MM STROKE

30-500 MPM

SCRAP DISPOSAL SYSTEM

EXIT DEFLECTOR ROLL W/ EXIT CONVEYOR

RUBBER SPOOL

TRAVELING BELT WRAPPER

CAROUSEL TENSION REEL W/ TWO MANDRELS

300 KW DC MAIN TENSION REEL DRIVE MOTOR & 2 SPEED GEARBOX ASSEMBLY

(2) 90KW DC MANDREL REEL MOTORS WITH GEARBOX ASSEMBLY , 850 INPUT RPM

OUTBOARD BEARING SUPPORT

SNUBBER ROLL

EXIT COIL CAR, COIL CAR CONVEYOR & BANDING UNIT

(8) COIL STORAGE POSITIONS

838MM - 1981MM COIL OD BANDING CAPABILITY

420MM OR 508MM COIL ID BANDING CAPABILITY

609MM - 1371MM COIL WIDHT BANDING CAPABILITY

0.203MM - 1.626MM THICKNESS CAPABILITY

UP TO 30 TON COIL WEIGHT BANDING COIL CAR, CONVEYOR AND BANDING CAPABILITY
