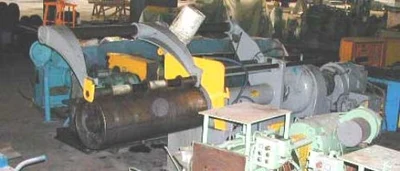

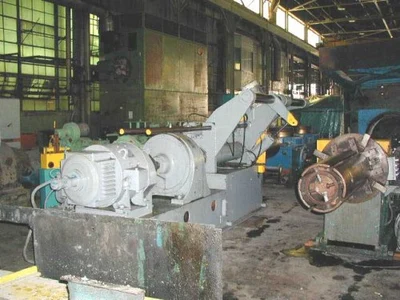

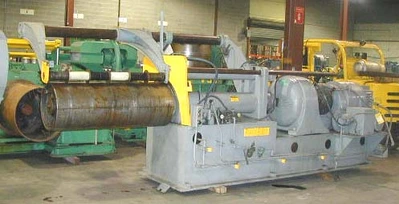

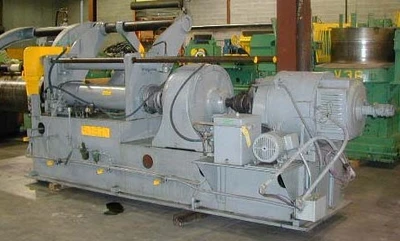

48" X 20,000# PAXSON RECOILER

NEW 1963

MANUFACTURER: PAXSON MACHINE CO.

CAPACITY: 20,000 LBS. MAX. COIL WEIGHT

TYPE: EXPANDING MANDREL

TYPE OF EXPANSION: HYDRAULIC

MANDREL SIZE:

MANDREL O.D.: 19-1/2" - 20-1/2"

WIDTH: 52"

MAX. COIL O.D.: 72"

MAX. COIL WIDTH: 48"

TYPE OF COIL STRIPPER: HYDRAULIC

EQUIPPED WITH OVERARM SEPARATOR

SHAFT DIAMETER: 2 1/2"

SPACER OD: 3 1/2"

OVERARM SEPERATOR KNIFE OD: 6"

DRIVE MOTOR: 60 HP, 1150/2000 RPM, 206 AMPS,

240 VOLTS, D.C.

GEAR REDUCER: RATED 75 HP, INPUT RPM 1730, OUTPUT

RPM 56, RATIO 31.4 TO 1

SELF-CONTAINED HYDRAULICS:

MANUFACTURER: PAXSON MACHINE CO.

SERIAL NO.: 649

DRIVE MOTOR: 3 HP, 230/460 VOLTS, 3 PH., 60 HZ

OVERALL FLOOR SPACE: 4 FT. x 17 FT.

DISTANCE FROM FLOOR TO TOP OF DRUM - 54"

**PRICE QUOTED IS EX WORKS AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
