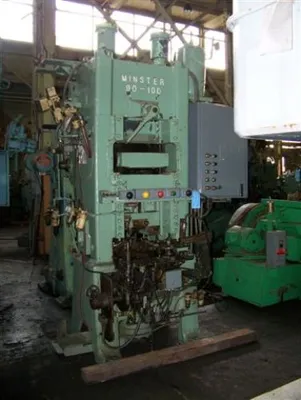

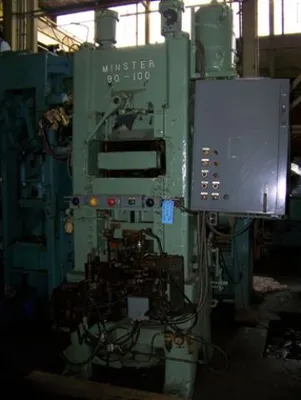

100 TON MINSTER MODEL #90-100 KNUCKLE JOINT PRESS

RATED CAPACITY ........................... 100 TONS

SPM ..................................... 30-60

SLIDE ADJUSTMENT ......................... 1/2"

STROKE OF SLIDE .......................... 3-1/2"

SHUT HEIGHT .............................. 10"

BED AREA ..........(LR X FB).............. 24" X 22"

RAM AREA ..........(LR X FB).............. 20" X 10"

BOLSTER AREA ......(LR X FB X THICK)...... 24" X 27" X 3"

DISTANCE BETWEEN GIBS .................... 16-1/2"

SIDE FRAME OPENING ...(FB X HIGH)......... 6" X 11"

WIDTH BETWEEN UPRIGHTS ................... 24" TO CLEAR

WEIGHT ESTIMATED ........................ 16,000#

O.A. DIMENSIONS ...(LR X FB X HIGH)....... 7' X 5'3" X 11'6" WITH MOTOR

EQUIPPED WITH: AIR CLUTCH

TIE ROD FRAME CONSTRUCTION

DIRECT V-BELT MOTOR DRIVEN

5 HP 3/110-440/60 (1800 RPM) MOTOR WITH

VARIDRIVE AND CONTROLS

AIR COUNTERBALANCE

AIR CUSHION

RATCHETING SLIDE ADJUSTMENT

KNOCKOUT IN RAM

PALM BUTTONS

11 STATION X 15" DIAMETER DIAL FEED
