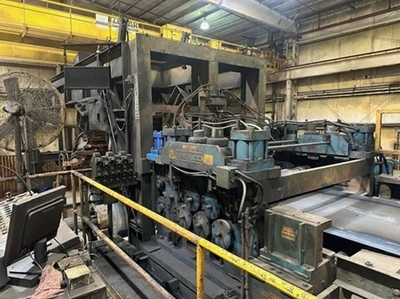

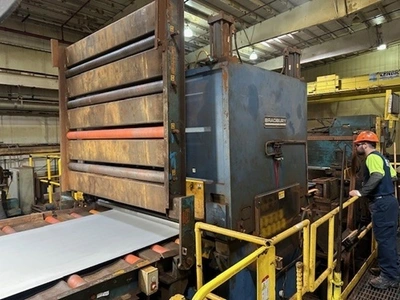

72" x .250" BRADBURY 11 ROLL, 4HI AUTO-SELECTIVE PULL-THRU LEVELER
Specs
MANUFACTURER - BRADBURY
YEAR - 2011
TYPE - PULL THRU HYDRAULIC LEVELER
MATERIAL - HOT ROLLED PICKLED
MAX CAPACITY - 72" X 0.250" @ 65,000 PSI - GRADE 50
MIN CAPACITY - 36" X 0.105" @ 65,000 PSI, 36" X 0.075" @ 50,000 PSI
NUMBER OF WORK ROLLS - 11
WORK ROLL CONFIGURATION - 5 OVER 6
WORK ROLL SIZES - 4" DIAMETER X 96" FACE
BACK UP FLIGHTS - 7 TOP, 7 BOTTOM
TOTAL LEVELING FORCE - 1,050,000 LBS
DRIVE - PULL THRU
PASS LINE HEIGHT - 60"
INTERMEDIATE ROLLS - 4HI
LINE DIRECTION - LEFT TO RIGHT
INCLUDES:
TRAVERSING BASE ALLOWS OFFLINE STORAGE WHEN NOT IN USE
Hydraulic Unit
