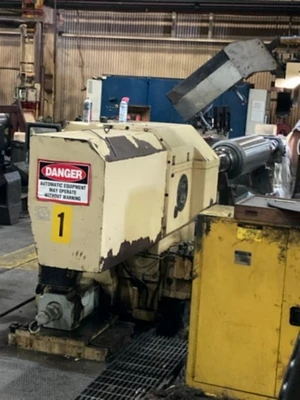

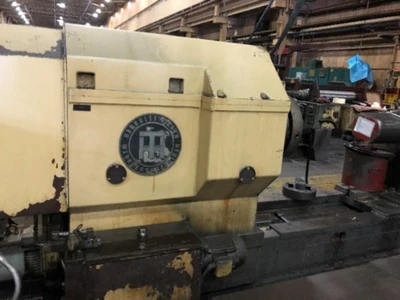

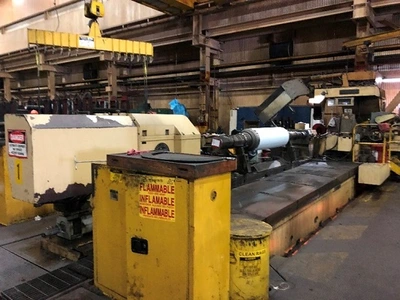

23.58" (600MM) / 17.68" (450MM) X 216" (5500MM) HERKULES WS600/450 X 5500 CNC

YEAR - 1988

MODEL - WS600/450 X 5500

TYPE - CNC ROLL GRINDER

STATUS - NOT IN OPERATION

WORKING RANGE:

ROLL DIAMETER RANGE - 23.58" (600MM)

LENGTH BETWEEN THE CENTERS - 216" (5500MM)

GRINDING LENGTH - 197"

MIN-MAX GRINDING DIAMETER - 0 - 55"

MAX WORK PIECE WEIGHT IN STEADY REST - 17,600 LBS.

MAX WORK PIECE WEIGHT IN CHOCKS - 88,000 LBS

HEADSTOCK

SPEEDS - 1.5-60 RPM

DRIVE POWER - 34 KW

TYPE OF DRIVE - TOOTH CHAIN

CENTER ACCOMODAITON HOEL - 3.93" DIAMETER, 1:10 TAPER

LONGITUDINAL ADJUSTMENT OF FACEPLATE - 6"

WORK PRESSURE OF HEADSTOCK HYDRAULIC - 25 BAR

TAILSTOCK

DRESSSING TOOL ACCOMODATION HOLE - MORSE TAPER #1

CENTER ACCOMODATION HOEL - 3.93" DIAMETER, 1:10 TAPER

MAX ADJUSTMENT OF CENTER SLEEVE - 6"

ADJUSTING PRESSURE OF HYDRAULIC - 275 BAR

HYDRAULIC PRESSURE TO RELEASE THE CLAMPING - 300 BAR

RAPID MOTION - 53"/MIN

GRINDING WHEEL

DIMENSIONS - 35.4 X 6 (4) X 20 INCHES

SPEEDS - 400 - 1200 RPM

DRIVE POWER - 110 KW MAX

GRINDING CARRIAGE MOVEMENTS

FEEDS - 4 - 160 IN/MIN

RAPID MOTION - 160 IN/MIN

SLOW MOTION - 4 IN/MIN

HYDRAULIC DISCHARGE OF CARRIAGE - 4 BAR MAX

GRINDNG HEAD INFEEDS

INFEEDS BY HAND - 0.0004"

AUTOMATIC INFEED ON CARRIAGE REVERSE - 0.0004" - 0.0035"

CONTINUOUS INFEED - 0.0004" - 0.008"/MIN

CONTINOUS MICRO ADJUSTMENT - 0.00004" - 0.002"/MIN

RAPID MOTION - 30"/MIN

SLOW MOTION - 1"/MIN

MICRO ADJUSTMENT BY HAND - 1 GRADUATION - 0.00004"

CONTINUOUS FINEST IN FEED - 0.00004" - 0.002"

FORM GRINDING DEVICE

MAX VALUE IN REFERENCE TO DIAMETER - 0.2"

MAX CORRECTION VALUES FOR CARRIAGE PATH

CORRECTION (RADIUS) - 0.039"

CORRECTIVE GRINDING (RADIUS) - 0.0039"

STEADY RESTS

ACCOMODATION CAPACITY -

23.6" - 31.5" DIAMETER

17.3" DIAMETER

8.66" - 12" DIAMETER

ADJUSTING SPEED - 0.04"/MIN

1 IMPULS - 0.0002"
