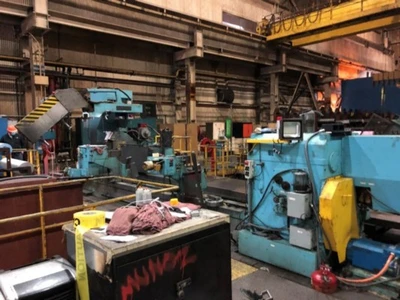

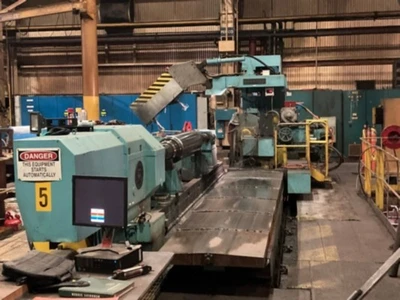

USED 1988 HERKULES WS600/450 X 5500

MANUFACTURER - HERKULES

YEAR - 1988

MODEL - WS600/450 X 5500

TYPE - CNC ROLL GRINDER

WORKING RANGE:

ROLL DIAMETER RANGE - 23.58" (600MM) / 17.68" (450MM)

LENGTH BETWEEN THE CENTERS - 216" (5500MM)

MIN-MAX GRINDING DIAMETER - 0 - 31.5"

MAX WORK PIECE WEIGHT IN STEADY REST - 17,600 LBS.

MAX WORK PIECE WEIGHT IN CHOCKS - 45,000 LBS

HEADSTOCK

SPEEDS - 10-70 RPM

DRIVE POWER - 15 KW

TYPE OF DRIVE - TOOTH CHAIN

CENTER ACCOMODAITON HOEL - 3.15" DIAMETER, 1:10 TAPER

LONGITUDINAL ADJUSTMENT OF FACEPLATE - 27.5"

WORK PRESSURE OF HEADSTOCK HYDRAULIC - 25 BAR

TAILSTOCK

DRESSSING TOOL ACCOMODATION HOLE - MORSE TAPER #1

CENTER ACCOMODATION HOEL - 3.15" DIAMETER, 1:10 TAPER

MAX ADJUSTMENT OF CENTER SLEEVE - 4.7"

ADJUSTING PRESSURE OF HYDRAULIC - 185 BAR

HYDRAULIC PRESSURE TO RELEASE THE CLAMPING - 235 BAR

RAPID MOTION - 87"/MIN

GRINDING WHEEL

DIMENSIONS - 36 X 6 (4) X 20 INCHES

SPEEDS - 400 - 1200 RPM

DRIVE POWER - 58 KW MAX

GRINDING CARRIAGE MOVEMENTS

FEEDS - 4 - 160 IN/MIN

RAPID MOTION - 160 IN/MIN

SLOW MOTION - 4 IN/MIN

HYDRAULIC DISCHARGE OF CARRIAGE - 4 BAR MAX

GRINDNG HEAD INFEEDS

INFEEDS BY HAND - 0.0004"

AUTOMATIC INFEED ON CARRIAGE REVERSE - 0.0004" - 0.0035"

CONTINUOUS INFEED - 0.0004" - 0.008"/MIN

CONTINOUS MICRO ADJUSTMENT - 0.00004" - 0.002"/MIN

RAPID MOTION - 30"/MIN

SLOW MOTION - 1"/MIN

MICRO ADJUSTMENT BY HAND - 1 GRADUATION - 0.00004"

FORM GRINDING DEVICE

MAX VALUE IN REFERENCE TO DIAMETER - 0.2"

MAX CORRECTION VALUES FOR CARRIAGE PATH

CORRECTION (RADIUS) - 0.039"

CORRECTIVE GRINDING (RADIUS) - 0.0039"

STEADY RESTS

ACCOMODATION CAPACITY - 7.8" - 17.3" DIAMETER

ADJUSTING SPEED - 0.04"/MIN

1 IMPULS - 0.0002"

UPGRADES

NEW CONTROLS, CONTROLS PLATFORM AND CALIPER TIP (YEAR 2020)

NEW LISMAR ROLL INSPECTION SYTSEM (YEAR 2020)
