USED 2002 SOCO SYSTEM IS SB-75X4B-1S
Specs

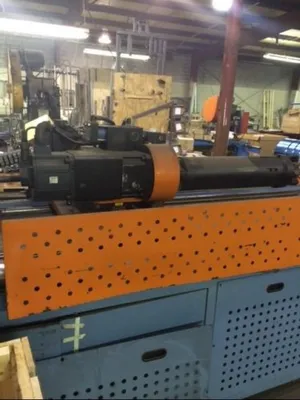

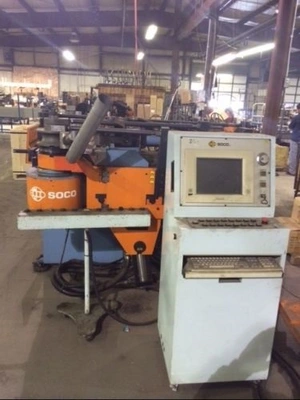

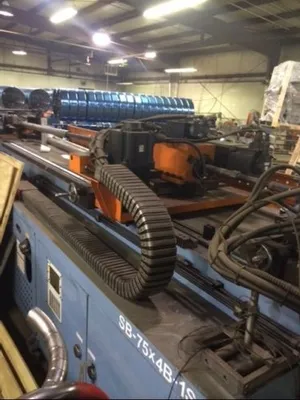

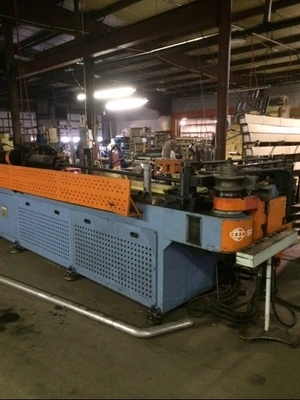

3" SOCO MODEL SB-75X4B-1S CNC TUBE BENDING MACHINE
MODEL: IS SB-75X4B-1S
BRAND: SOCO SYSTEM
CONDITION: USED
YEAR: 2002
EQUIPPED WITH:

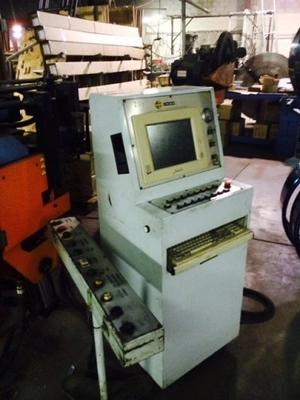

4-AXIS TOUCH SCREEN CNC CONTROL
HYDRAULIC MANDREL EXTRACTOR
CLAMP & PRESSURE DIE HOLDERS
PROGRAMMABLE PLANE OF BEND CARRIAGE
OVERHEAD TIE BAR SUPPORT
REMOTE OPERATOR CONTROL STAND
SPECIFICATIONS:
MAX. STEEL TUBE (.100" WALL X 1.5D 3" O.D.
MAX. STEEL TUBE (.170" WALL X 1.5D 2.75" O.D.
MAX. STAINLESS TUBE (.120" X 1.5D) 2.75" O.D.
MAXIMUM BENDING RADIUS 10"
MAXIMUM FEEDING STROKE 112"
MAXIMUM BEND ANGLE 190 DEGREES
NUMBER OF BENDS PER TUBE 12 BENDS
BEND ARM SPEED 25 DEG./SEC.
PLANE OF BEND SPEED 160 DEG./SEC.
FEEDING SPEED 31.5"/SEC
MAIN MOTOR 30 HP
APPROX. DIMENSIONS 195" X 73" X 61"
APPROX. WEIGHT 16,060 LBS.
