USED 2024 DN SOLUTIONS LYNX 2100LSYB

Manufacturer: DN Solutions
Model: Lynx 2100LSYB
Year: 2024
Manufactured: August 2024
Serial number: ML0406-001403

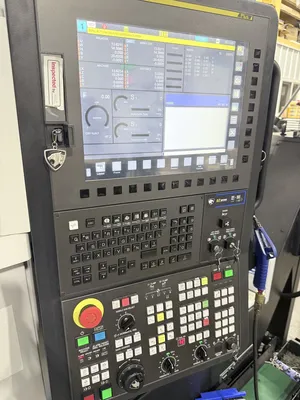

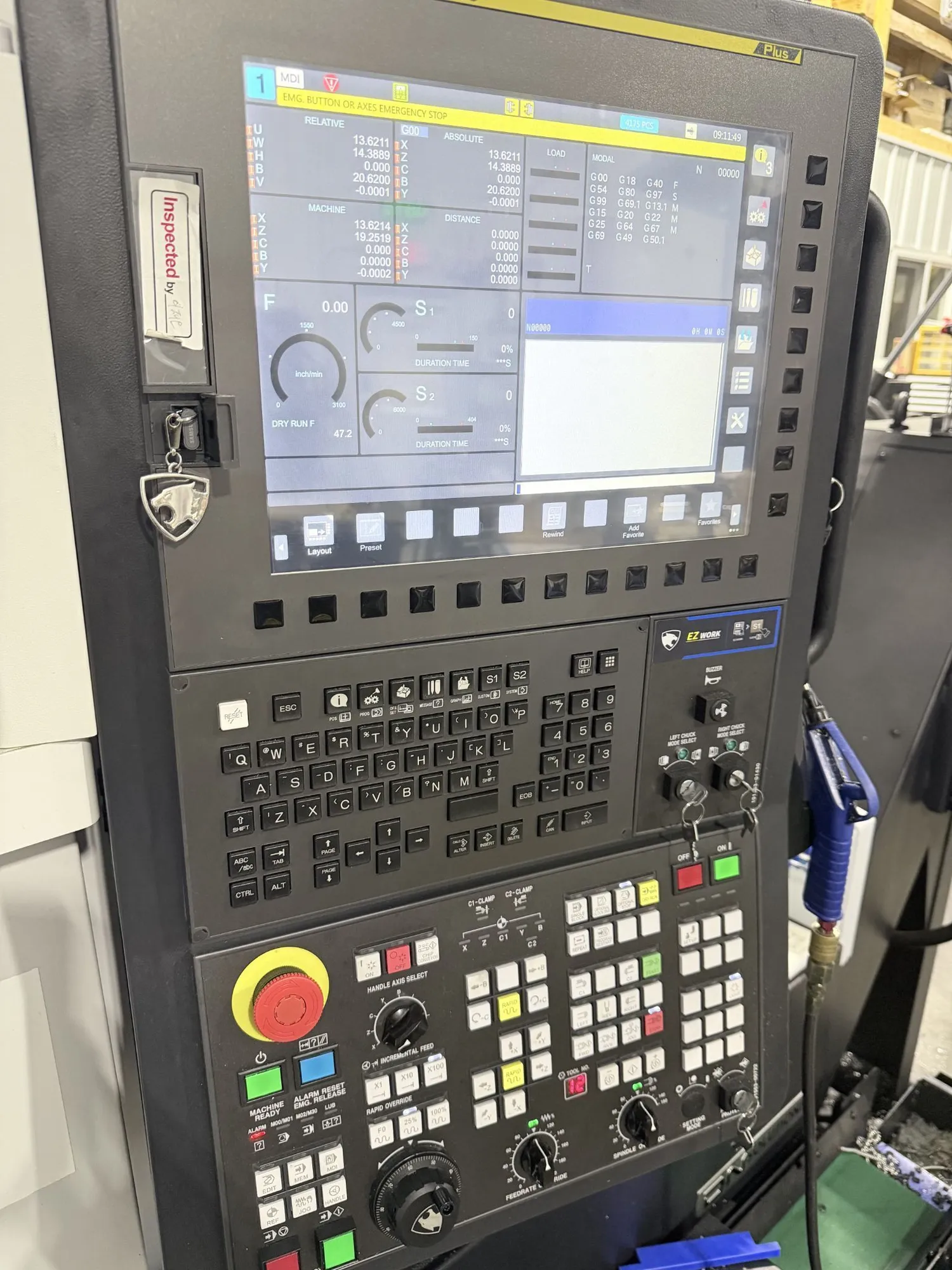

Control: FANUC CNC with i Plus interface
Configuration: X/Y/Z and C-axis machining, Y-axis, live tooling, sub-spindle
Swing over bed: 600 mm (23.62 in)
Swing over saddle: 400 mm (15.75 in)
Maximum turning diameter: 300 mm (11.81 in)
Maximum turning length: 510 mm (20.08 in)
Main chuck size: 8 in
Main spindle bar capacity: 65 mm (2.56 in)
Main spindle maximum speed: 4,500 rpm
Main spindle motor: 15 kW (20.1 hp) maximum
Sub-spindle maximum speed: 6,000 rpm
Live tooling maximum speed: 6,000 rpm

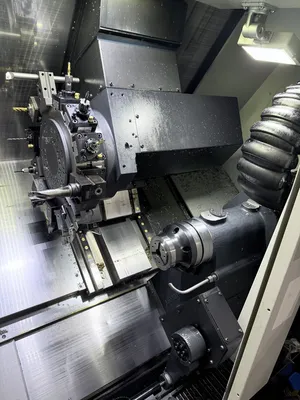

Turret: 12-station BMT45
X-axis travel: 205 mm (8.07 in)
Y-axis travel: 105 mm total (+/-52.5 mm; 4.13 in total)
Z-axis travel: 560 mm (22.05 in)
Sub-spindle B-axis travel: 560 mm (22.05 in)
Tailstock: No; sub-spindle configuration

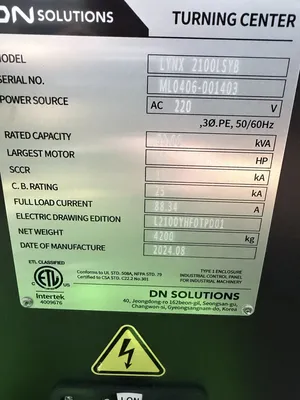

Power supply: 220 V AC, 3-phase, 50/60 Hz
Rated capacity: 33.66 kVA
Full-load current: 88.34 A
Net weight: 4,200 kg (9,259 lb)
Overall dimensions (L x W x H): 2,880 x 1,711 x 1,921 mm (113.39 x 67.36 x 75.63 in)
