USED NICHOLSON A5 27" RING DEBARKER

Nicholson A5 Ring Debarker

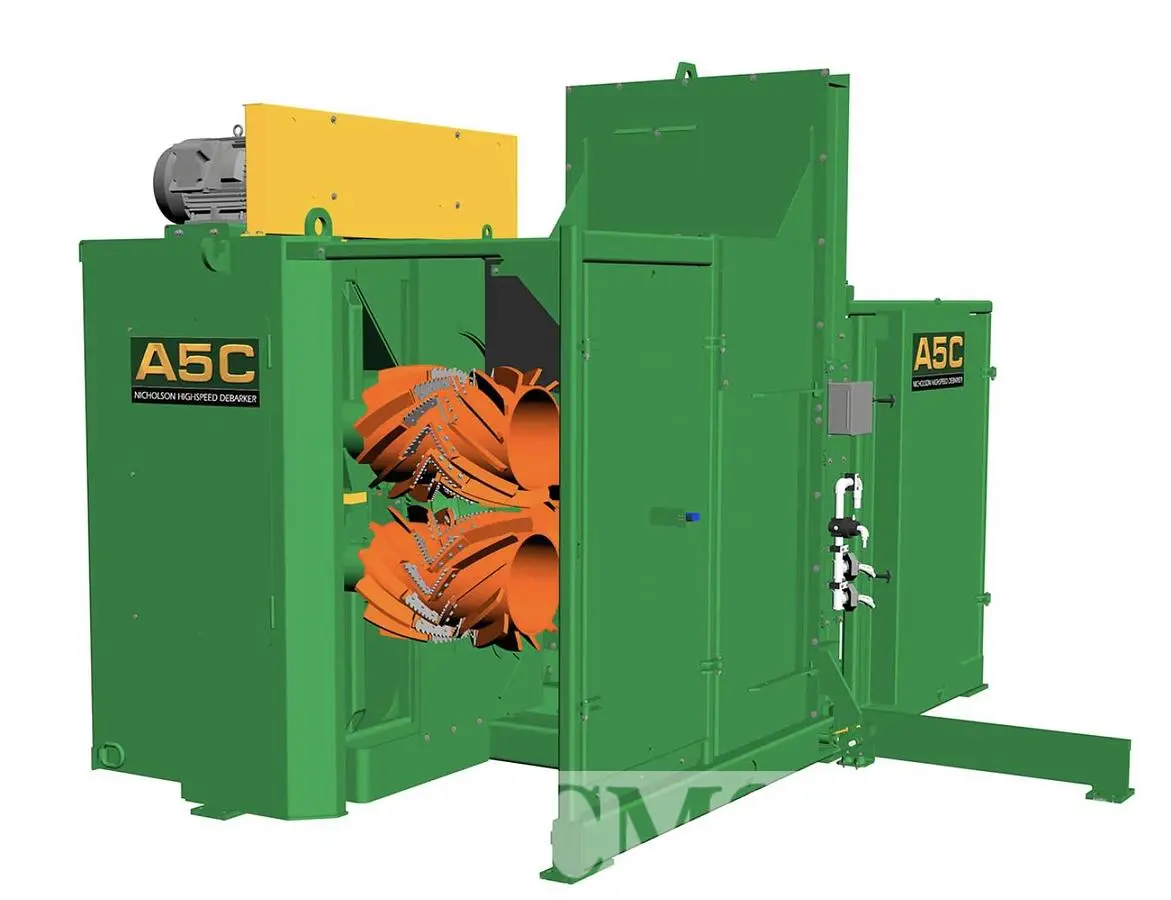

Photo for reference - photos coming!
27" Debarker
Left Hand Tandem A5
100 HP Motors
1185 RPM
Feed drive: 60 HP Motor
Recent inspection report:
This machine is a more modern A5 with both rings being bellows rings. Ring 1 has T arms
where ring 2 has plate arms. Ring 2 needs a new infeed clamp ring. Both rings are in good
condition with ring 1 at .015” axial clearance and ring 2 at .009”. Both rings are driven by
100 hp motors running at 1185 RPM with a 10.9” sheave. Both rings have had the air seal
repaired within the last 4 years.
There are a couple of repairs needed on the feed rolls but overall, they are in good
condition. The support arms are fitting with bearing housings, and all gears look good. The
support arm pivots appear to have been adjusted in the past as there are cut outs behind
the log tunnel, but the columns appear to be original. The bearing clearances are mostly
good and as follows:
#1 Upper 0”, #1 Lower 0”, #2 Upper 0”, #2 Lower 0”, #3 Upper .006”, #3 Lower 0”, #4
Upper .001”, #4 Lower 0”
The feed is driven by a 60 hp motor running at 1775 RPM with a 9.75” sheave to a gear
reducer with a 13.2” sheave. The main frame of this machine is in good condition with no
cracks being found anywhere on the frame or any of the columns. This machine is known
to being in good operating condition.
