USED PHD SCDAVRF-1-3/8X1

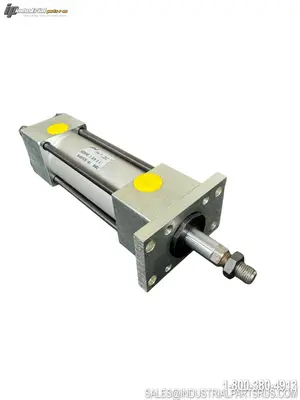

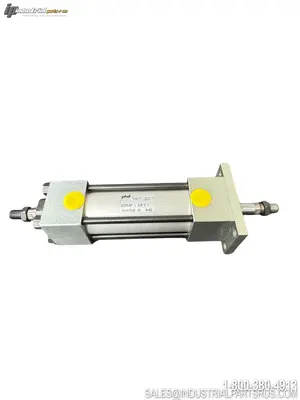

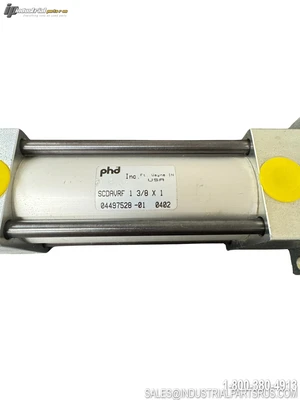

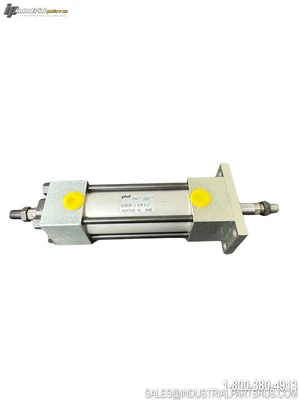

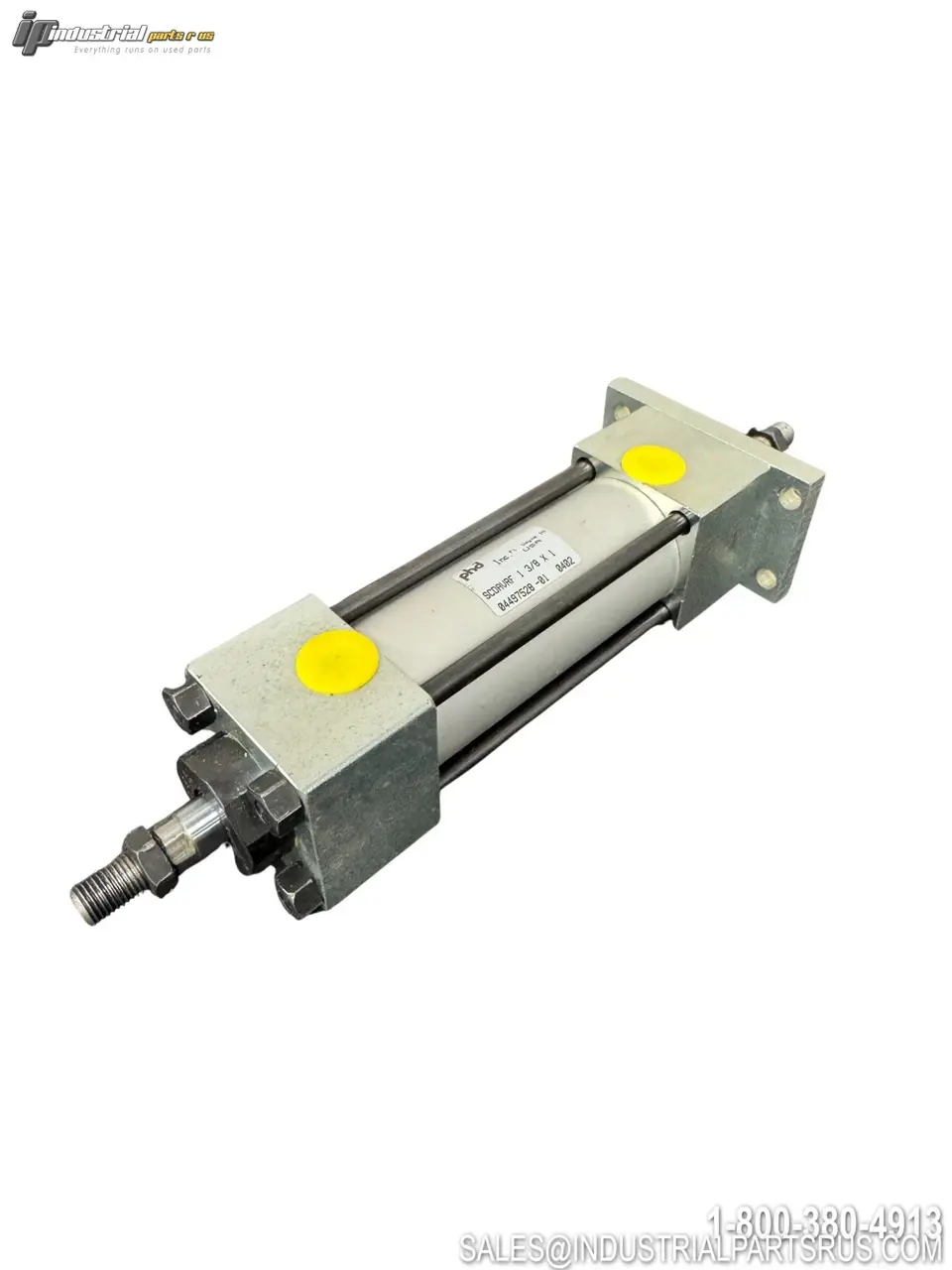

The PHD SCDAVRF-1-3/8x1 is a Tom Thumb® AV Series single-acting, spring-extend, double-rod-end tie-rod pneumatic cylinder designed to NFPA standards. With a 1-3/8" bore and 1" stroke, this cylinder features a spring that extends the rod (cap-end spring), and the double-rod configuration passes through both head and cap ends. It mounts via tapped holes on the front face of the head (rod mount style) and is rated for up to 150 psi air pressure. PHD's AV Series cylinders offer long service life, field repairability, and a wide range of compatible accessories and switch options.
Specification
Value
Brand
PHD
Model / Part Number
SCDAVRF-1-3/8x1
Series
AV Series (Tom Thumb®)
Product Type
Pneumatic Cylinder
Cylinder Action
Single-Acting, Spring Extend (Cap-End Spring)
Rod Configuration
Double Rod End
Bore Diameter
1-3/8" (1.375")
Stroke Length
1"
Maximum Operating Pressure
150 PSI (10 bar) Air
Minimum Operating Pressure
20 PSI (1.4 bar) Air
Port Size
1/8" NPT
Standard Rod Diameter
1/2"
Mounting Style
Rod Mount — Tapped Holes on Front Face of Head (RF)
Body Material
Anodized Aluminum
Operating Temperature
-20°F to +180°F (-29°C to +82°C)
Max Force @ 150 PSI
~223 lb (991 N) extend
Stroke Tolerance
±0.032"
Lubrication
Permanently Lubricated (Non-lubricated or lubricated air compatible)
Standards
NFPA
Maintenance
Field Repairable
Media
Compressed Air
We warranty all items for 30 days from date of purchase.
