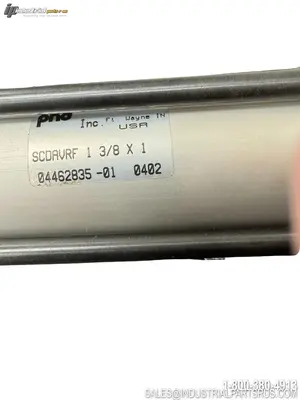

USED PHD SCDAVRF 1 3/8X1

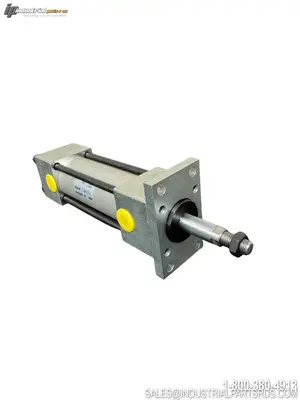

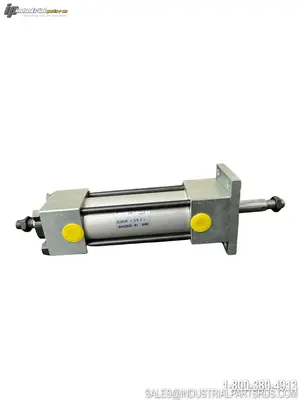

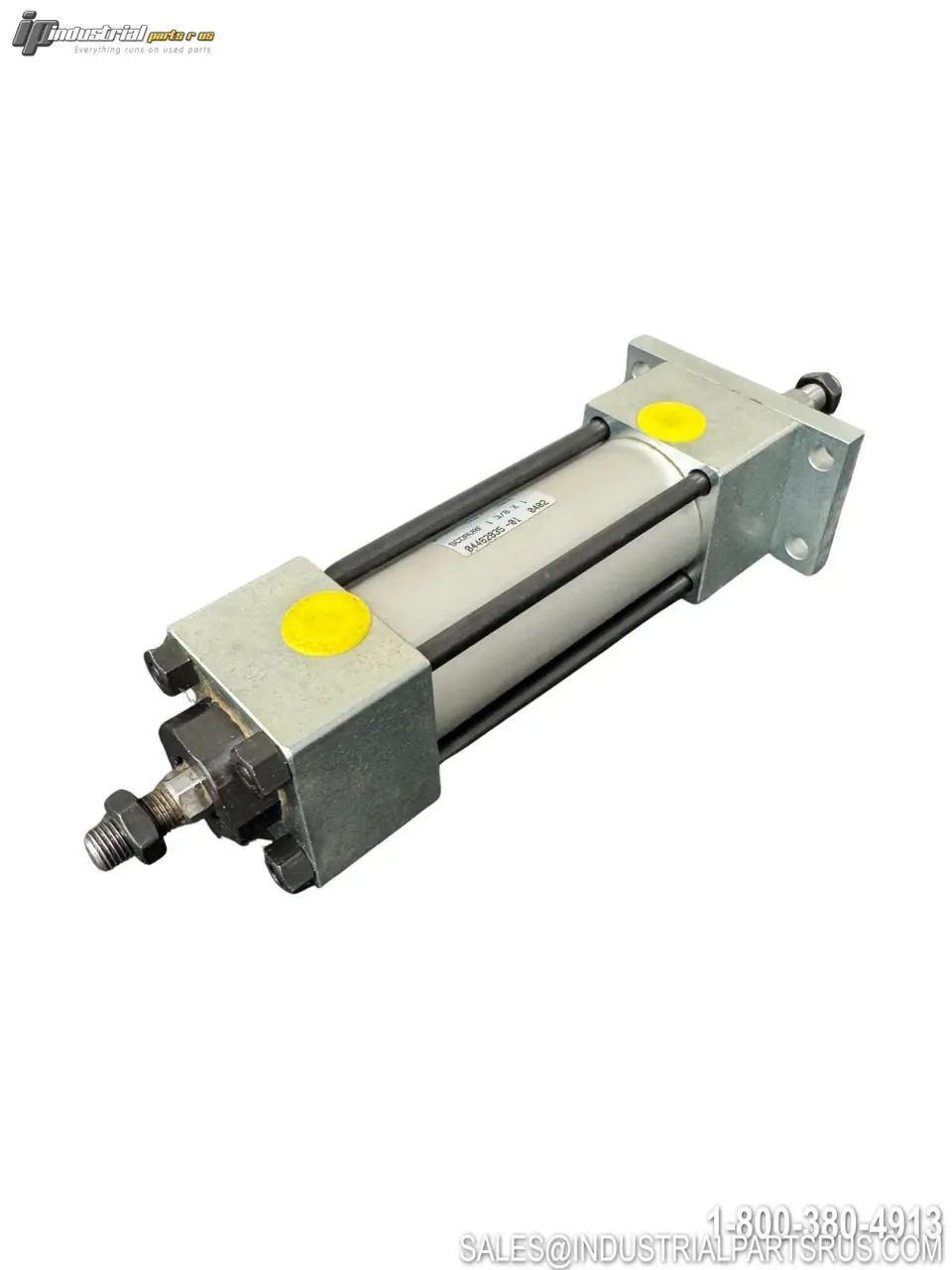

The PHD SCDAVRF 1 3/8x1 is a Tom Thumb® Series AV single-ended tie-rod pneumatic NFPA cylinder featuring a 1-3/8" bore and 1" stroke. Per PHD's model nomenclature, "SC" denotes a spring on the cap end (single-acting spring extend), "D" indicates a double rod end, "A" indicates a stroke adjustment option, "VRF" identifies the AV Series with rod-end and foot mounting styles. It is permanently lubricated, field repairable, and rated for 20 to 150 PSI air pressure with an operating temperature range of -20°F to +180°F.
Specification
Value
Brand
PHD
Model / Part Number
SCDAVRF 1 3/8x1
Manufacturer Full Name
PHD, Inc.
Product Series
AV Series (Tom Thumb® Tie-Rod NFPA)
Cylinder Type
Single-Ended Tie-Rod Pneumatic NFPA Cylinder
Acting Type
Single-Acting, Spring on Cap End (Spring Extend)
Rod Configuration
Double Rod End (D option)
Stroke Adjustment
Yes – 1/2" standard adjusting range (A option)
Bore Diameter
1-3/8" (1.375")
Stroke Length
1"
Mounting Style
Rod End (R) and Foot Mount (F) – counterbored through holes
Port Size
1/4" NPT (standard for 1-3/8" bore AV series)
Port Position
Position 1 (standard)
Rod End Thread
3/8"-24 UNF (male) – standard for 1-3/8" bore
Standard Rod Diameter
1/2" standard rod
Operating Pressure (Air)
20 to 150 PSI [1.4 to 10 bar]
Operating Temperature
-20°F to +180°F [-29°C to +82°C]
Stroke Tolerance
±0.032"
Lubrication
Permanently lubricated at factory (dry air or lubricated air)
Maintenance
Field repairable
Body / Piston Material
Anodized Aluminum
Input Medium
Compressed Air
We warranty all items for 30 days from date of purchase.
