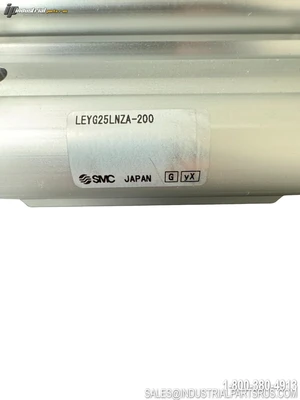

NEW SMC LEYG25LNZA-200

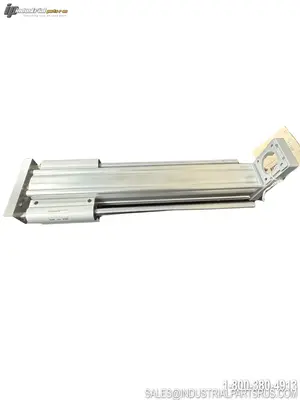

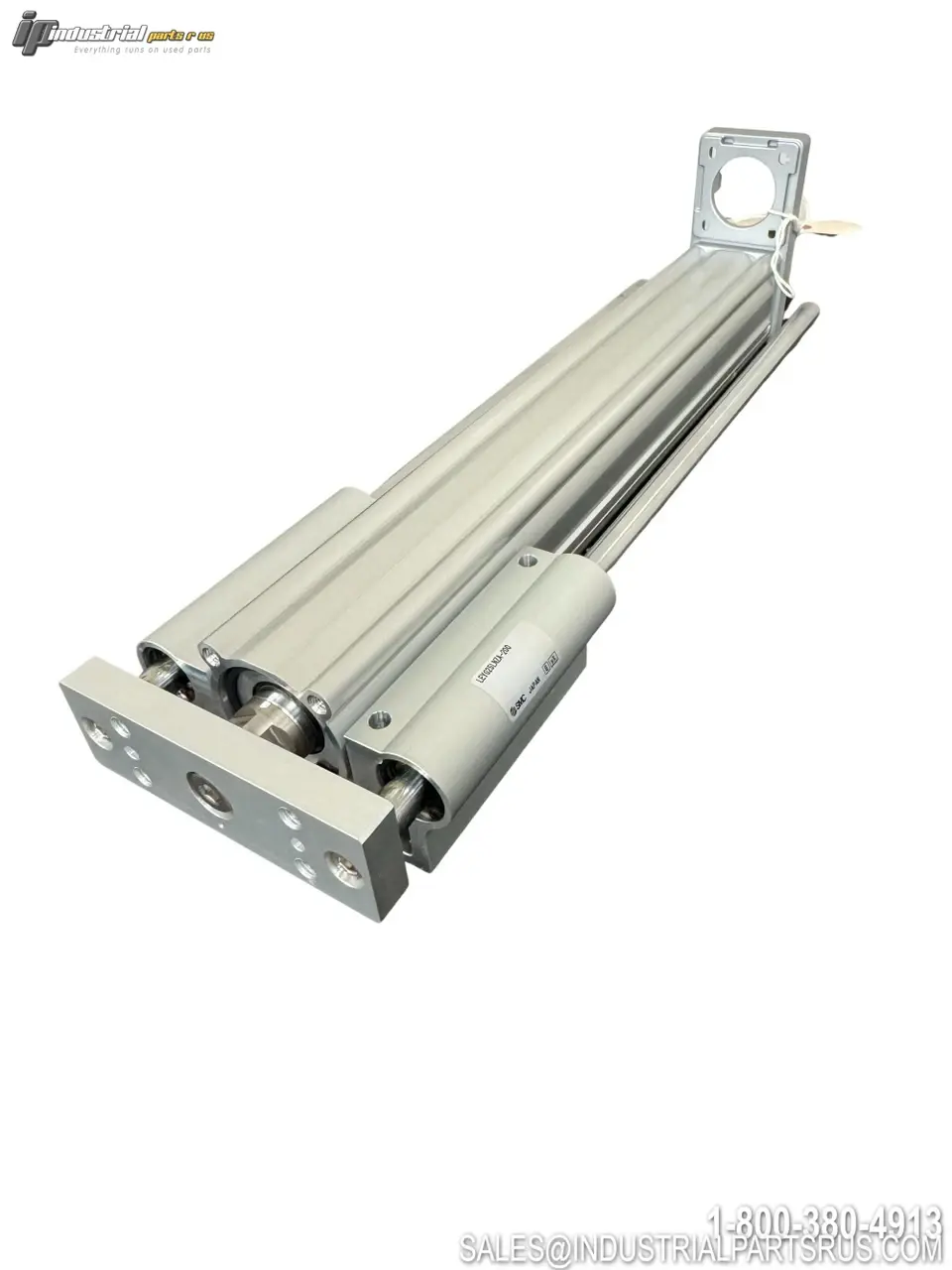

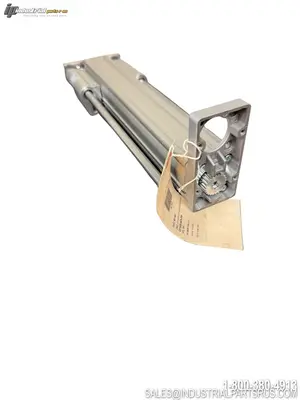

The SMC LEYG25LNZA-200 is a Size 25 motorless guide rod type electric actuator from SMC's LEYG series. It features a ball screw drive mechanism paired with a bolt-on bearing block with double guide rods that resist rotational and lateral loads. The motorless (N) configuration accepts a wide variety of third-party AC servo motors via Mounting Type Z (NZ) brackets, making it highly flexible for custom motion system designs.
Specification
Value
Brand
SMC
Model / Part Number
LEYG25LNZA-200
Series
LEYG
Product Type
Electric Actuator / Guide Rod Type / Motorless
Body Size
25
Stroke
200 mm
Lead (Screw)
12 mm (Lead Symbol A)
Bearing Type
Ball Bushing Bearing
Motor Mounting Position
Top Mounting
Motor Configuration
Motorless (N) — Motor Not Included
Motor Mounting Type
Type Z (NZ)
Drive Method
Ball Screw + Belt
Maximum Pushing Force
485 N
Maximum Speed
900 mm/s
Maximum Acceleration
5,000 mm/s²
Maximum Work Load (Horizontal)
60 kg
Maximum Work Load (Vertical)
44 kg
Positioning Repeatability
±0.02 mm
Non-Rotating Accuracy of Plate
±0.05° (ball bushing bearing)
Stroke Range Available
30 to 300 mm
Operating Temperature Range
5 to 40°C
Compatible Motor Types
AC Servo (Mitsubishi, Yaskawa, Sanyo Denki, Omron, Panasonic, FANUC, Rockwell Automation, and others)
Compatible Drivers
LECSS-T, LECY□ (when motor is installed)
Body Material
Aluminum Alloy
Approx. Weight (200mm stroke, Ball Bushing)
~2.90 kg (without lock)
Accuracy Class
Basic
Impact Resistance
50 m/s²
Vibration Resistance
20 m/s²
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
