Used

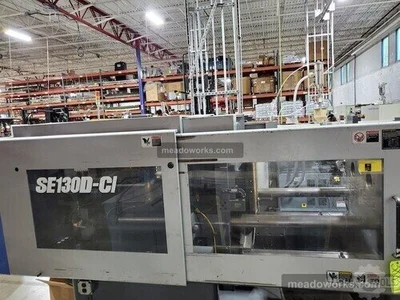

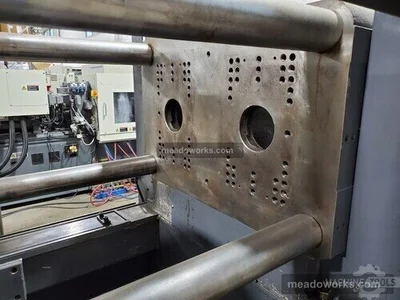

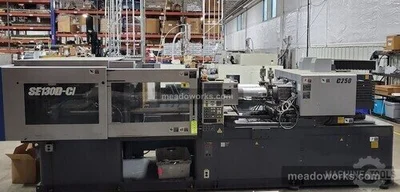

USED 2006 SUMITOMO SE130D-CI

Illinois, United States
242Listings|24Followers
Overview
Injection Molding Machines

Machine location: United States (exact location available on request). This listing shows Schaumburg, IL because that is the Meadoworks office address, not where the machine is located.

Full listing with all photos: meadoworks.com (Meadoworks item #4929)

Specs

DRIVE TYPE Electric
TONNAGE 143
SHOT SIZE OZ. 2.9
SHOT SIZE GRAMS 82.21355
TIE BAR SPACING 25.98 in x 14.17 in
CLAMP STROKE 20.08 in
EJECTOR STROKE 5.91 in
DAYLIGHT 32.18 in
VOLTAGE 208
MIN/MAX MOLD HEIGHT 8.27 in - 22.05 in
INJECTION UNIT SIZE C250
SCREW DIAMETER 28mm

2-Shot all-electric injection molder
