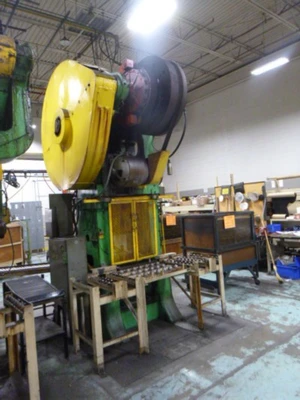

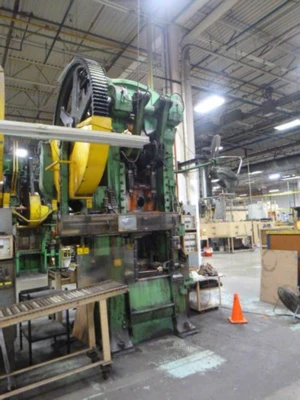

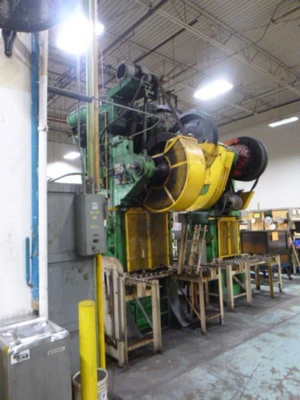

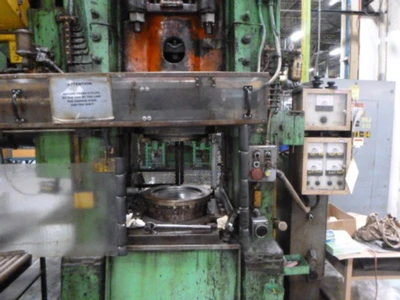

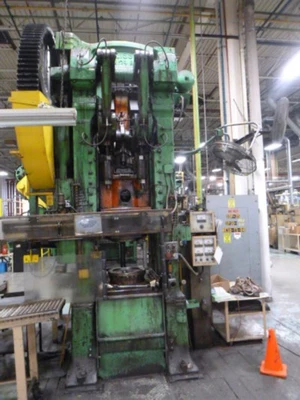

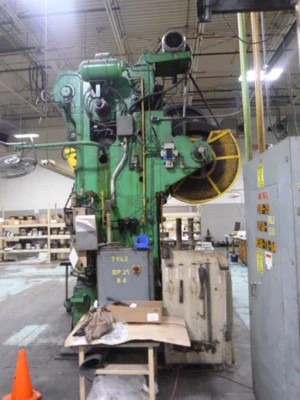

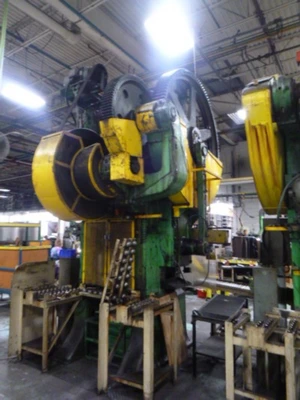

USED BLISS 3 3/4B

MANUFACTURER - BLISS

TYPE - TOGGLE

MODEL NUMBER - 3 3/4B

PLUNGER CAPACITY - 150 TON

BLANKHOLDER CAPACITY - 110 TON

CRANKSHAFT DIAMETER - 6.5" - 7.5"

WILL DRAW IN DEPTH AND LIFT UP TO - 10.5"

STROKE OF BLANKHOLDER SLIDE - 15"

STROKE OF PLUNGER SLIDE - 22"

ADJUSTMENT BLANKHOLDER & PLUNGER - 6"

DISTANCE BETWEEN UPRIGHTS - 30"

BED AREA - FB X RL - 30" X 29"

BED OPENING DIAMETER - 19"

BLANKHOLDER AREA - FB X RL - 25" X 24"

BLANKHOLDER OPENING DIAMETER - 16"

DIE SPACE DISTANCE TO BLANKHOLDER STROKE DOWN ADJUSTMENT UP - 28"

DIE SPACE DITANCE BED TO PLUNGER STROKE DOWN ADJUSTMENT UP - 30"

DIAMETER OF THREADED STEM IN PUNCH SLIDE FOR DRAWING PUNCH - 2.5" - 4"

BOLSTER PLATE THICKNESS WITH T-SLOTS - 4.5"

REDUCED PLATE THICKNESS AND DIEMETER OF OPENING - 2 " - 8"

STROKES PER MINUTE - 13"

HEIGHT (BASE TO CENTER OF CRANK SHAFT) - 122"

OVERALL HEIGHT - 176"

FLOOR SPACE OVERAL - FB X RL - 97" X 84" APPROXIMATE

MOTOR - 15 HP

APPROXIMATE WEIGHT - 42,500 LBS.

INCUDES:

AIR CLUTCH

CONTROLS

MOTOR

ELECTRICS
