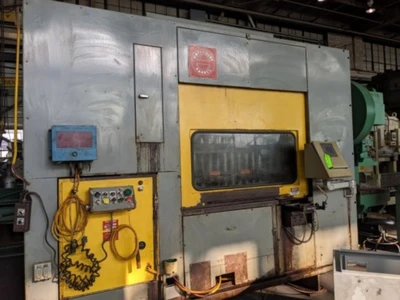

USED WATERBURY FARREL 2012

MANUFACTURER - WATERBURY FARREL

MODEL -2012

TPYE - EYELET TRANSFER PRESS

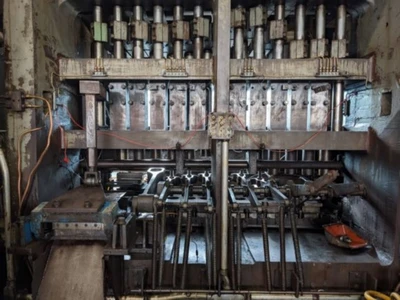

NUMBER OF PLUNGERS - 12 + 1

TYPE OF PLUNGERS - ROUND

RATED CAPACITY PER PLUNGER - 9 TON

MOTOR HP - 20

MAX DIAMETER OF BLANK USING SINGLE ROW BLANKING - 3.75" (95.3MM)

TWO ROW BLANKING WITH STAGER FEED -

USING SECOND STATION - 2.00" (50.8MM)

USING IDLE STATION - 3.75" (95.3MM)

MAX DEPTH OF DRAWN SHELL - 3.125" (79.4MM)

PIECES PER MINUTE - 35-70

TOOL CENTER DISTANCE - 4" (101.6MM)

SHUTHEIGHT - 6" (152.6MM)

FLOOR SPACE - 140" X 62" X 127" (3.56M X 1.57M X 3.23M)

APPROXIMATE WEIGHT - 30,500 LBS (13,725 KG)

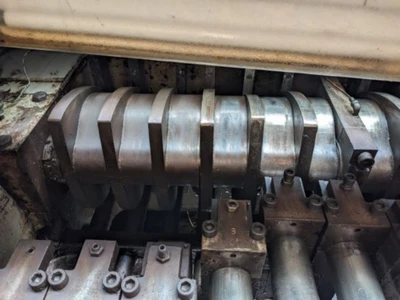

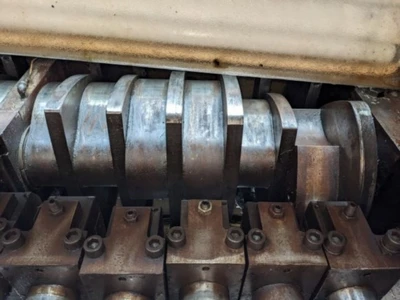

STANDARD CAM STROKES

CAM #1 - 2 _"

CAM #2 - 4.5"

CAMS #3-#4 - 5 3/8"

CAMS #5-#12 - 6.5"

INCLUDES

FEED ROLLS

PRESS CONTROLS

STRIPPER ARMS

TRANSFER DRIVE CAM

BLANK HOLDER

*Priced in "AS IS" condition, on location Connecticut, USA.

*Inspection report and rebuilt quote available
