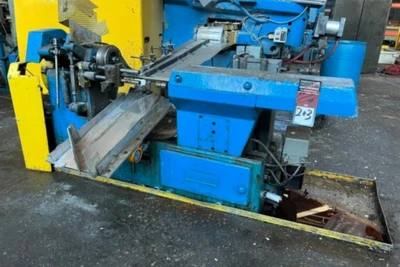

USED HERLAN BST

MANUFACTURER - HERLAN

MODEL - BST

CAPABILITIES - AUTOMATIC TRIMMING, THREADROLLING, BEADING AND KNURLING

OVERALL LENGTH (UNTRIMMED LENGTH) FOR

8MM - 38MM DIAMETER - UP TO 175MM

38MM - 120MM DIAMETER - UP TO 250MM

DIAMETER (AS PER THE ABOVE INDICATED PROVISIONS) - 8MM - 120MM

OUTPUT - 35-50 PIECES/MIN INFINITELY VARIABLE

THICKNESS RANGE

SHEET IRON - 0.6MM TRIMMING, 0.5MM BEADING & THREADROLLING

COPPER & BRASS - 0.8MM TRIMMING. 0.6MM BEADING & THREADROLLING

ALUMINUM - 1.0MM TRIMMING, 0.8MM BEADING & THREADROLLING

CENTER DISTANCE TOF TOOL SPINDLES - 62MM MIN. - 125MM MAX.

MOTOR - 1.1 / 1.5 KW, APPROXIMATELY 960-1430 RPM***

HEIGHT OF LOWER TOOL SPINDLE TO FLOOR - 610MM

MACHINE OVERALL DIMENSIONS (APPROXIMATE) - 2030MM L X 1020MM W X 900MM H

APPROXIMATE WEIGHT - 500 KILOGRAMS

*** FACTORY MOTOR SPECIFICATIONS, CUSTOMER SHOULD VERIFY CURRENT MOTOR PRIOR

TO PURCHASE

CATALONG SPECIFICATIONS - ALL INFORMATION MUST BE CONFIRMED BY SELLER PRIOR TO

PURCHASE.
