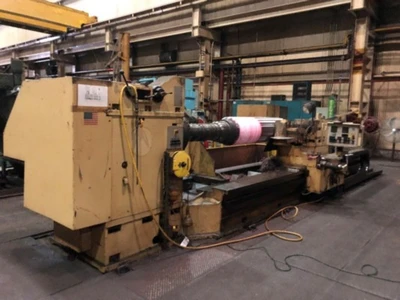

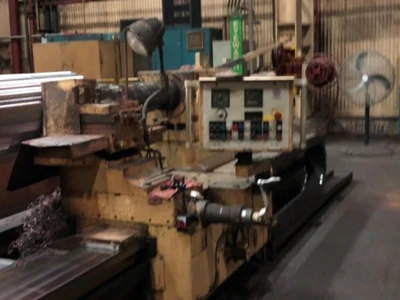

USED 1988 HERKULES WD 300 LE
Overview
Specs
MANUFACTURER - HERKULES
YEAR - 1988
MODEL - WD 300 LE
TYPE - MANUAL ROLL LATHE
MAX TURNING LENGTH - 177"
MAX SWING - 47"
MAX TURNING DIAMETER - 47"
MIN TURNING DIAMETER - 10"
MAX WEIGHT WORK PIECE - 33,000 LBS
HEADSTOCK:
CLAMPING DIAMETER AT FACEPLATE - 15.75" - 3.94"
SPEED OF THE FACEPLATE
2.7 RPM/31.0 RPM
3.9 RPM/44.0 RPM
5.5 RPM/62.0 RPM
7.8 RPM/88.0 RPM
9.3 RPM/105.0 RPM
13.2 RPM/150.0 RPM
18.7 RPM/211.0 RPM
26.5 RPM/300.0 RPM
SADDLE
SLOW MOTION LONGITUDINAL - APPROX 0.08"/MIN
FEED LONGITUDINAL - 0.2-23.6"/MIN
RAPID MOTION LONGITUDINAL - 157.5"/MIN
MAX CUTTING REACTION - 50 kN
INFEED UPPER SADDLE -
ONE REVOLUTION - 0.25"
ONE STROKE - 0.002"
INFEED TOOL REST -
ONE REVOLUTION - 0.2"
ONE STROKE - 0.002"
TAILSTOCK
ACCOMODATION HOLE CENTRE - 3.14" DIAMETER, 1:10 CONE
MAX STROKE OF CENTRE SLEEVE - APPROX 5"
MAX CENTRE PRESSURE - 19,800 LBS
