USED 2007 TAKUMI V15

2007 TAKUMI-SEIKI V-15 HEAVY DUTY 4-BOX WAYS VERTICAL MACHINING CENTER
KEY DESIGN FEATURES & QUOTATION AND FULLY CLEANED TESTED IN STOCK
FULLY INSTALLED UNDER POWER FOR INSPECTION.
A division of Hurco Companies, Inc.

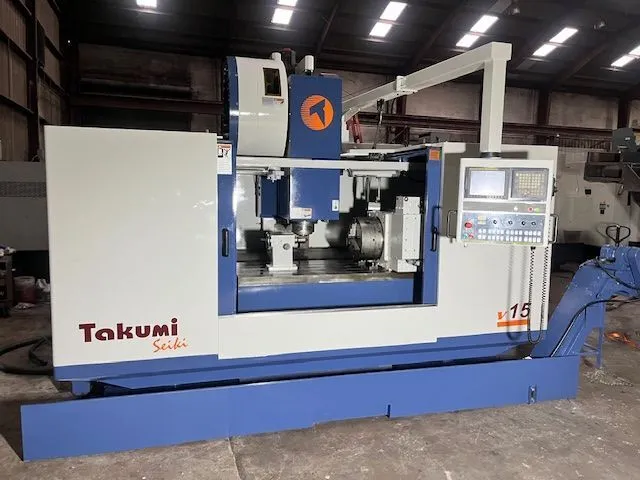

2007 Takumi V15 CNC machining center Fanuc 21i-MB CNC Control
V15 4-Axis Box-Way Machining Center, Built for heavy material removal,
production, and excellent surface finish.

Belt or geared spindles to provide maximum torque.
Large box ways for rigid and heavy cutting.
Pre-tensioned ball screws minimize thermal growth and improve accuracy.
Direct-coupled motors increase accuracy and speed.
Spindle chiller maximizes heat dissipation.
Extra-wide door openings facilitate easy loading and unloading.
Hand-scraped contact areas.
Robust, precision-machined castings.
Box-shape bed made of one-piece casting.
Integrated washdown and chip management system.
Absolute encoders ensure fast start-up.

Main Specifications

X-Axis 60" (1524 mm)
Y-Axis 30" (762 mm)
Z-Axis 28.3 in (720 mm)
Distance from Spindle Nose to Table
5.91 ~ 34.3 in (150 ~ 870 mm) Spindle Speed 6000 rpm
Spindle Power 25 HP (18.5 KW)
Spindle Taper CAT 50
Peak Spindle Torque
437.2 ft lb (592.76 Nm)
Through-Spindle Coolant 30 bar / 435 psi

Feed Rates
Rapid Traverse (X/Y/Z) 708 x 708 x 630 ipm (18 x 18 x 16 m/min)
Cutting Feed Rate 0.04 ~ 196.85 ipm (1 ~ 5, 000 mm/min)

Automatic Tool Changer
ATC Type Swing Arm
Magazine Capacity 24 Tools
Max. Tool Diameter Next pocket empty 4.33 / 8.66 in (110 / 220 mm)
Max. Tool Length 11.81 in (300 mm)
Max. Tool Weight 33 Lbs (15 kg)
Tool Shank CAT 50 Taper

Space & System Requirements
Machine Net Weight 30865 lbs (14000 kg)
Electrical Power Consumption 35 KVA
Pneumatic Pressure 5 CFM @ 85-115 psi (0.14m3 /min) @ 6-8 bar

Operating Dimensions
275.59 x 220.47 x 128.19 in (7000 mm x 5600 mm x 3256 mm)

Options Installed & Included:
MMK 6.5" Thru Hole Full-Forth Axis 15" Rotary Table with
Adjustable Tru-Set Scroll Chuck on Faceplate.
www.takumiusa.com

I thank you for your review and consideration and machine is top condition
ready for inspection and offer machine prep & rigging reasonable trucking
delivery to your shop arrangements.
