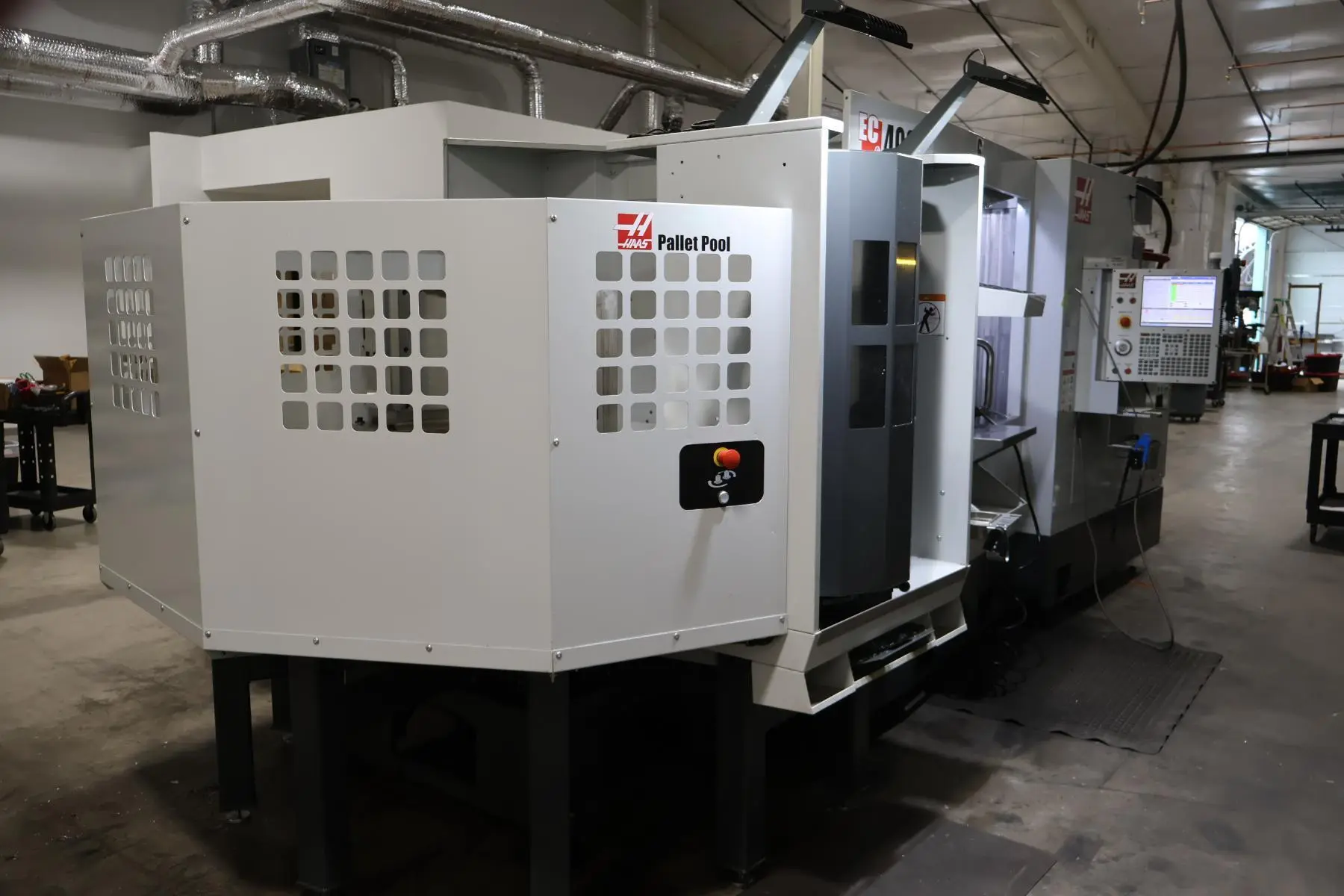

USED 2023 HAAS EC-400PP

Horizontal Machining Center
OEM: Haas Automation, Inc.
Model: EC-400PP (Pallet Pool)
DOM: November 2023 (Installed 2024)
Electrics: 220 Volt, 3 Phase, 50-60 Cycle, 40 Amp FLA
Main Motor: 30 HP
Hours:
...Cycle Time: 4,181
...Power On: 11,128
...Servo Time: 5,878
...Feed Time: 3,349
...Main Spindle, Total Usage: 4,259

Features and Specifications:
...CNC Control: Haas w/ Pendant
...6-Station Pool + 1 Load Station
...Pallet Size: 15.75” x 15.75”
...Pallet Load Max.: 880 lbs.
...Spindle Specs:
......CT40 Taper
......15,000 RPM
......Inline Direct Drive
......Thru Spindle Coolant
...Travels:
......X-Axis: 22"
......Y-Axis: 25"
......Z-Axis: 22"
...Cutting Feedrates:
......Cutting: 500 IPM
......Rapid (X,Y,Z): 1,000 IPM
...Tool Changer (ATC): 100 Slots
...Auger
...Rigid Tapping
...Full 4th-Axis Indexing System
...WIPS Probing
...Complete Coolant System
...Hennig Chip Conveyor
...Accessories:
......5 Pallets
......Haas Auxiliary Coolant Filtration

EC400 Equipment Dimensions (approx.): 176” x 92" x 101"
EC400 Equipment Weight (approx.): 17,520 lbs.
Pallet Pool Dimensions (approx.): 108” x 78” x 78”

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

1st-owner machine; in excellent condition. Comes with high-speed spindle, TSC, 6-station pallet pool, 5 pallets, 4th-axis, 100 slot ATC. Hours listed in my advertisement along with imbedded videos taken this September 2026. Buyer is responsible for rigging out of shop and loading on transportation. Machine is under power and is available for inspection and test.

Owner is selling machine because it has too large capacity for their product mix. They are looking for a smaller, 2-pallet machining center.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Vancouver, WA Metro Area

Equipment is under power; available for inspection.
Buyer is responsible for rigging and loading fee.
Buyer is responsible for freight logistics and expenses.
MD Equipment Services can provide quotation for loading and shipping.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
