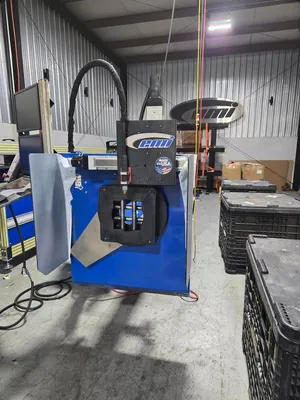

USED 2023 EMI EL-SQRD

Cost-Effective Multi-Profile Plasma Cutting with Manual Loading
Cut, Miter, Cope, Mark, Burn Holes & Slots
Round stock up to 6.625”
Square & Rectangle stock up to 6” x 6”
Channel stock up to C6 x 13lbs
Angle stock up to 6” x 6”
Flat stock up to 8″

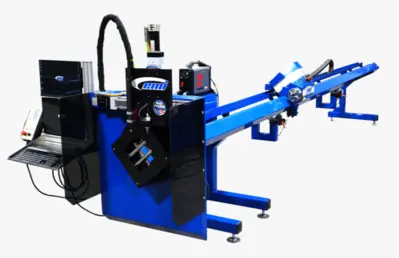

Material Processing Center – Model EL‑SQRD (New Generation 2.0)
HICKORY / YASKAWA Servo System
-Servo system base machine with 5 driven axes (X, Y, Z, A, U)

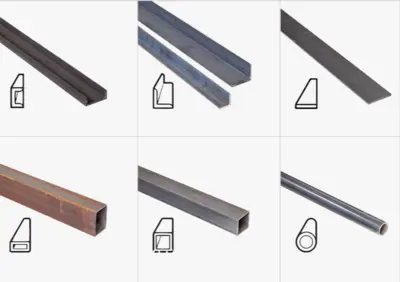

-Processes pipe, square tube, rectangular tube, angle, and flat stock
-Handles material lengths up to 24 ft (288")
-Works round material from ¾" diameter tube to 4" Sch80 pipe (19 lbs/ft)

Included Components & Features:
• Centroid CNC Hickory controller

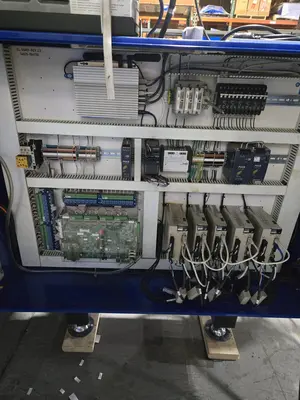

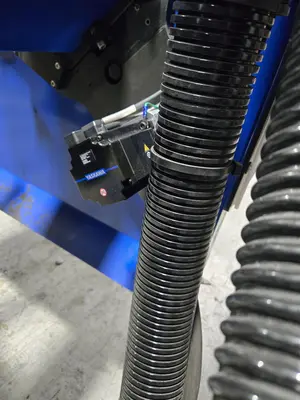

• Closed‑loop Yaskawa servo system
• Dual‑screen monitor station with keyboard/mouse
• High‑temp chassis / SSD industrial PC with Windows IoT OS
• Industrial‑grade connectivity: WiFi, USB, Ethernet
• Manual 4‑jaw chuck
• Air‑blast system

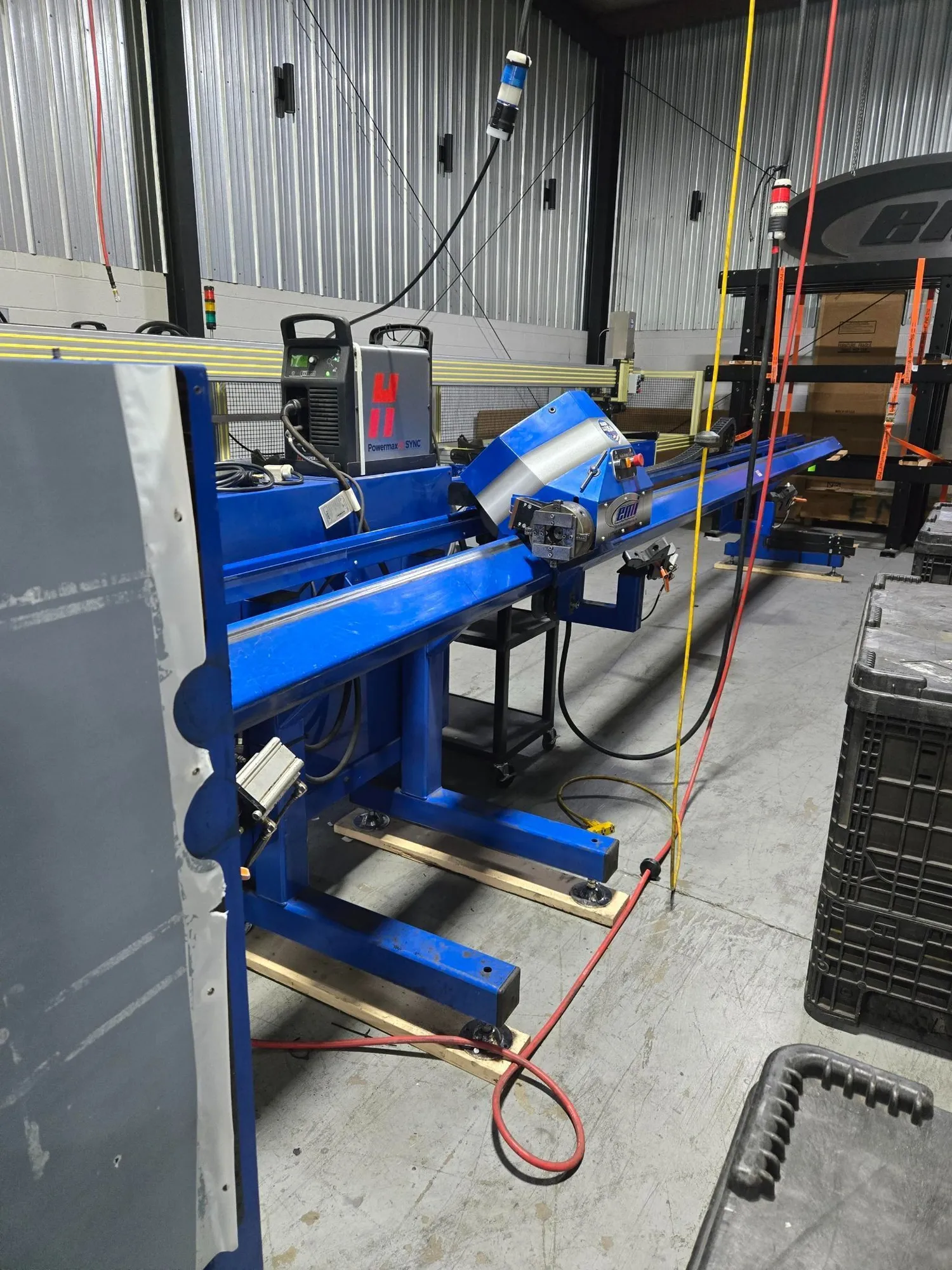

• Three automatic material supports

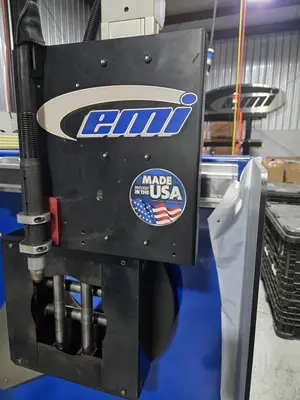

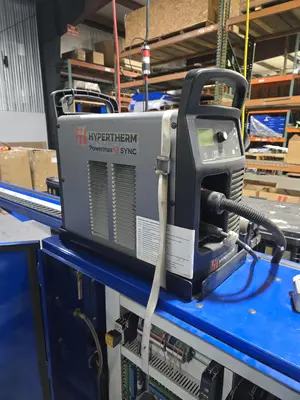

• Hypertherm 45A plasma system with torch & CNC interface (*Upgraded 65A option available, additional cost)
• Torch consumables (selection only)
• PieceMaker PRO software

Machine Specifications:
Dimensions: 29' × 7' × 6'
Weight: 2,400 lbs (including torch)
Serial Number: SN 14025
