NEW 2021 HAFFNER Mac440-30
Overview

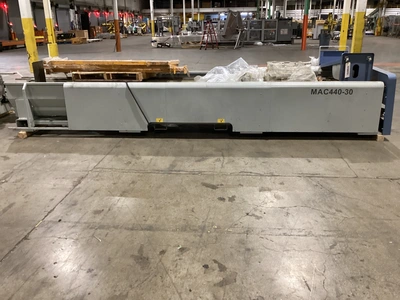

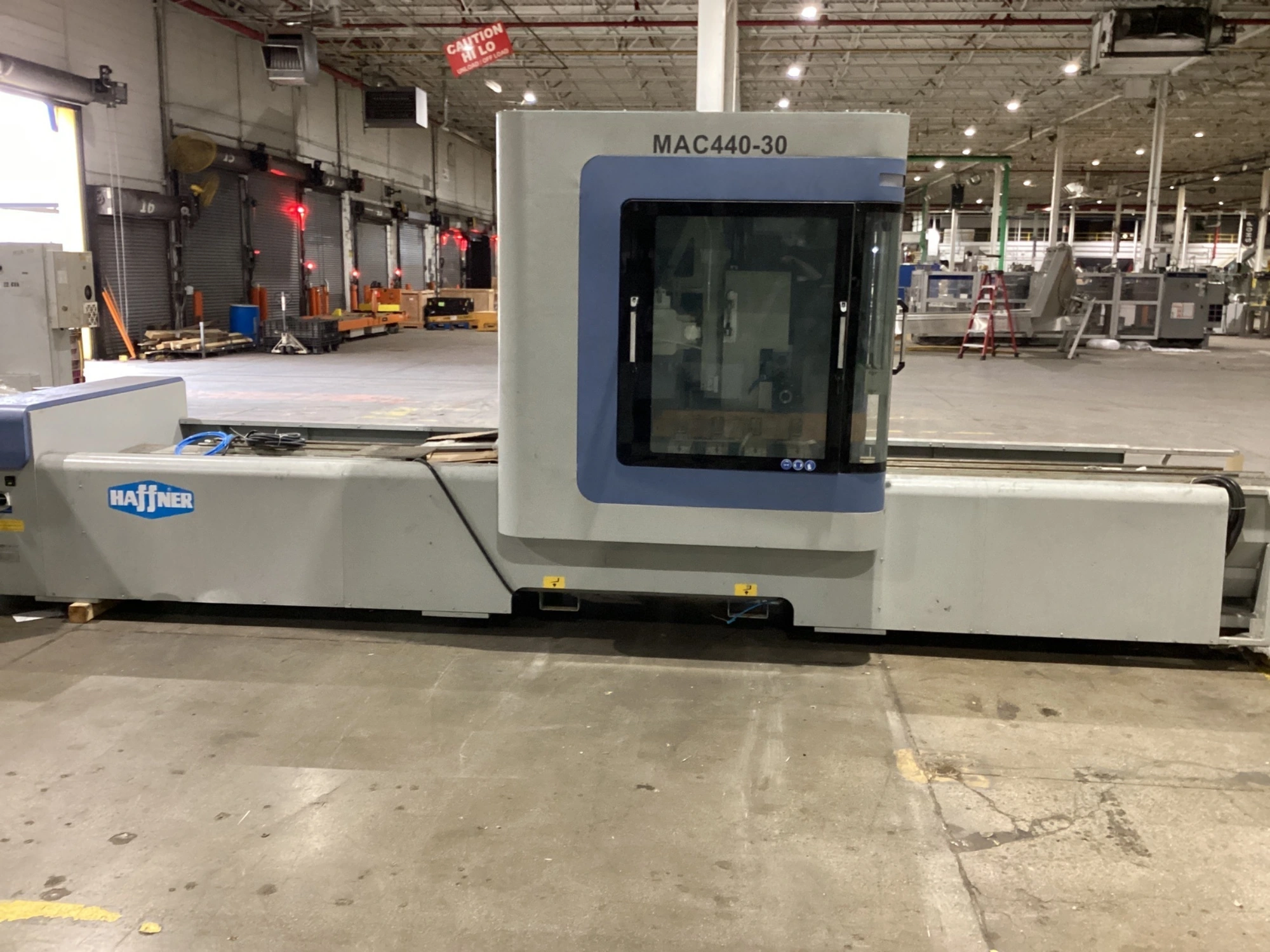

This listing is for a NEW Haffner MAC440-30 4-axis aluminum profile processing center. The CNC machine performs milling, drilling, cutting, tapping, flow drilling, and countersinking on aluminum profiles using a water-cooled high-speed spindle, automatic tool changing, and automatic workholding positioning.
Specs

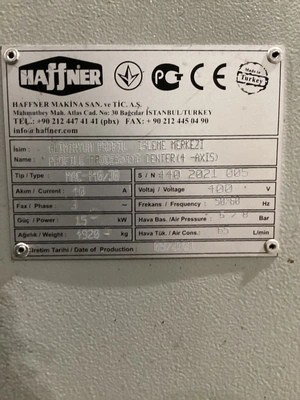

IDENTIFICATION
Manufacturer: Haffner
Model: MAC440-30
Product Type: 4-axis aluminum profile processing center
Serial Number: 440 2021 005
Condition: NEW
YOM: 2021-08
Country of Manufacture: Turkey
MACHINING
Controlled Axes: 4
Machining Operations: Milling / drilling / cutting / tapping
Additional Operations: Flow drilling / countersinking
A-Axis Processing Range: -120° to +120°
Maximum Milling Blade Dia.: 150 mm
Maximum Machinable Length: 4100 mm
Standard Processing Length: 4000 mm
AXIS TRAVEL / SPEED
X-Axis Travel: 4600 mm
X-Axis Maximum Speed: 120 m/min
Y-Axis Travel: 930 mm
Y-Axis Maximum Speed: 60 m/min
Z-Axis Travel: 625 mm
Z-Axis Maximum Speed: 60 m/min
SPINDLE
Spindle Type: Water-cooled electro spindle
Spindle Power: 8 kW
Maximum Spindle Speed: 24,000 RPM
Tool Interface: HSK F63
TOOLING
Tool Magazine Capacity: 6
Tool Change: Automatic
Maximum Tool Diameter: 150 mm

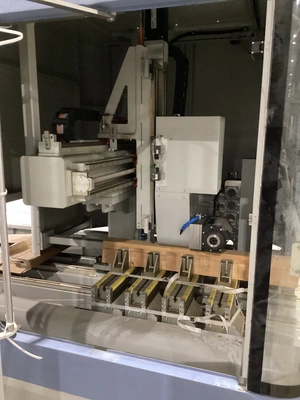

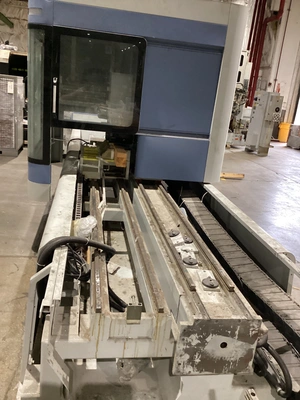

WORKHOLDING
Standard Vices: 4
Vice Positioning: Automatic by machine head
Clamp Recognition: Automatic
Clamp Positioning: Automatic
Stop References: 2
Stop Operation: Pneumatic
Profile Support Bed: Integrated

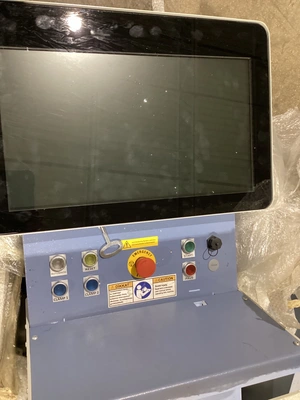

CONTROL / OPERATOR INTERFACE
Control Type: CNC
Operating System: Windows 10
Display Size: 19 in
Handheld Operator Terminal: Present
CAD/CAM Operation: Supported
Automatic Control: Present
Reset Control: Present
Clamp Controls: Present
Start Control: Present
Pause Control: Present
Emergency Stop: Present
Key-Operated Control: Present
ELECTRICAL
Supply Voltage: 400 VAC
Current: 40 A
Phase: 3
Frequency: 50 / 60 Hz
Machine Power: 15 kW
PNEUMATIC
Air Pressure: 6-8 bar
Air Consumption: 65 L/min
Pneumatic Workholding: Present
COOLING / LUBRICATION
Spindle Cooling: Water cooled
Central Lubrication: Present
CONSTRUCTION / INSTALLATION
Machine Configuration: Floor standing
Machining Area: Fully enclosed

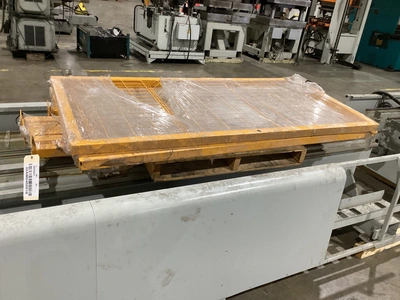

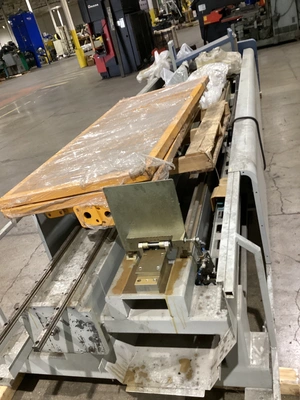

Extended Profile Bed: Integrated
Viewing Panels: Present

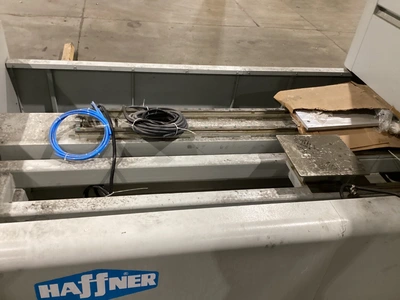

Linear Motion Hardware: Present
Ballscrew Drives: Present
Cable Carriers: Present
PHYSICAL
Machine Height: 2300 mm
Machine Length: 6200 mm
Machine Width: 1800 mm
Machine Weight: 4920 kg
