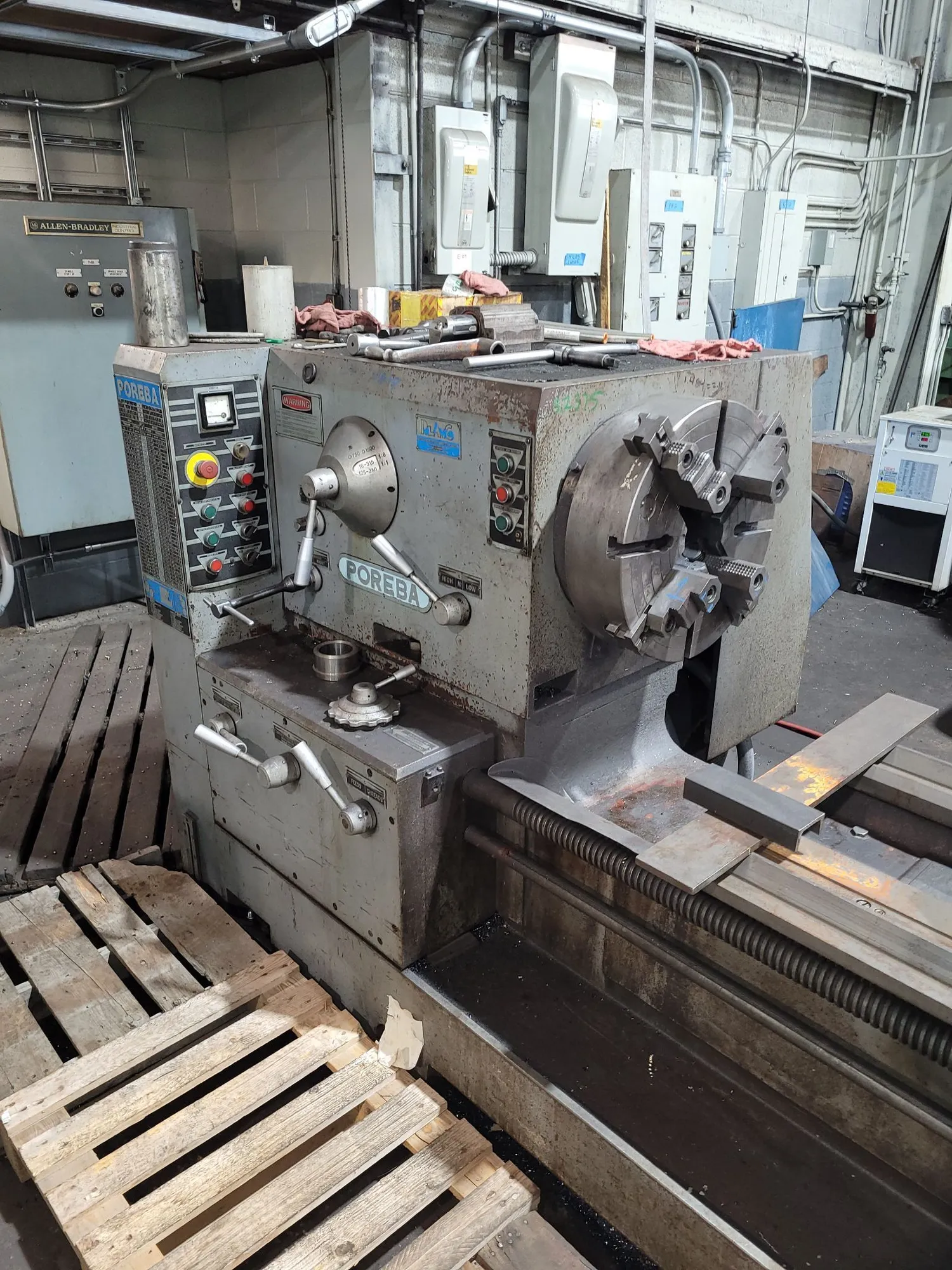

USED POREBA POLAMCO TPK-80A/6M

31.5/42.5" x 236" POREBA "UNIVERSAL" GAP-TYPE
ENGINE LATHE W/TAPER ATTACHMEMT
Serial No 0880-1179-677, Model TPK-80A/6M

EQUIPPED WITH:
Taper Attachment
Cross Slide Digital Readouts
Inch-Metric Threading Capabilities
Power Rapid Traverse To Carriage & Compound
18" 4-Jaw Chuck - 19” 4-Jaw Chuck - Tool Post
(2) Steady Rests
Induction Hardened & Ground Bed Ways

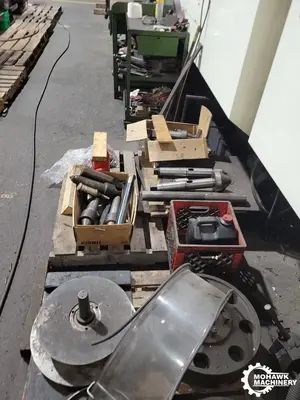

Extra Centers & Tool Holders ETC.

CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.75"
Swing Over Bed Ways, Rated 31.5"
Swing thru Gap 42.5"
Swing Over Carriage 21"
Turning Length In Gap 16.9"
Distance Between Centers 236"
Weight Capacity Between Centers 13500 LBS
Weight Capacity w/(1) Steady Rest 16500 LBS
Weight Capacity w/(2) Steady Rests 20000 LBS
Spindle Speeds, Range 16 to 1500 RPM
(80) Longitudinal Feeds, Range .0043 to .0670”
(80) Cross Feeds, Range .0021 to .033”
(61) Thread Range, Inches 1/4 to 30 TPI
(72) Metric Threads, Range 1 to 120 MM
Longitudinal Rapid Traverse to Carriage 13 FPM
Tailstock Quill Taper 6 MT
Tailstock Quill Diameter 5.12"
Tailstock Quill Travel 12"
Motor, Horsepower 30HP/22 KW
Weight Approximately 18000 LBS

F.O.B. ON WAY IN
