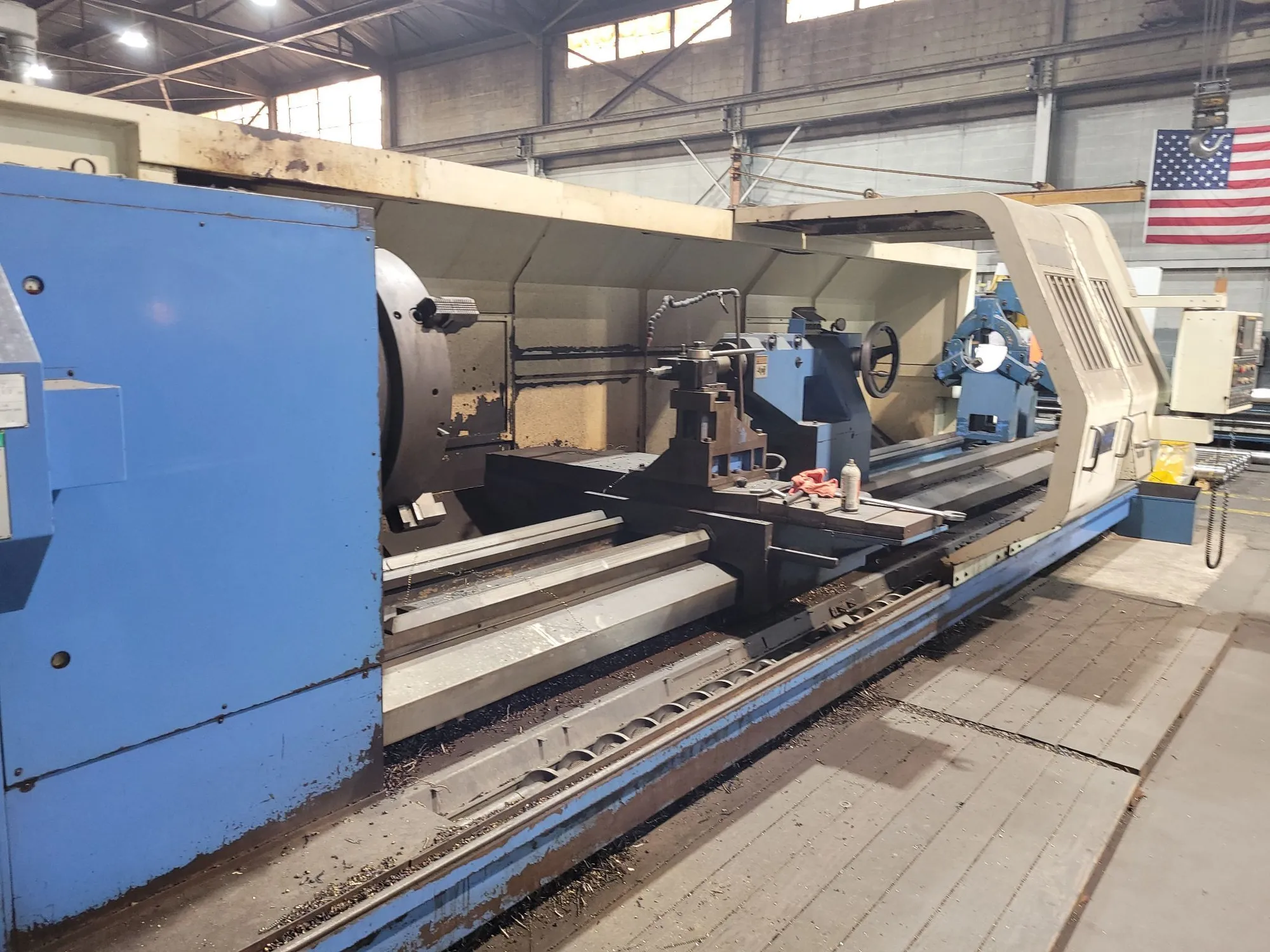

USED 2006 KINGSTON LD50-200

50” x 200” KINGSTON HEAVY-DUTY FLAT BED HOLLOW-SPINDLE
OIL COUNTRY LATHE
New 2006, Serial No LD2450/6087, Model LD50-200

EQUIPPED WITH:
14.5” Hole Thru Spindle

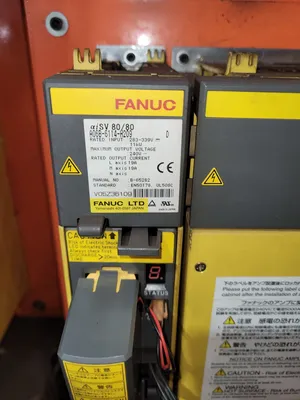

Fanuc Oi-TC CNC Control

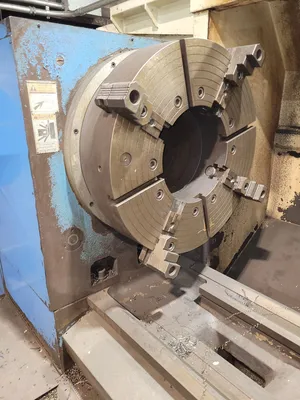

(2) 32” 4-Jaw Chucks (Front & Rear Mounted)

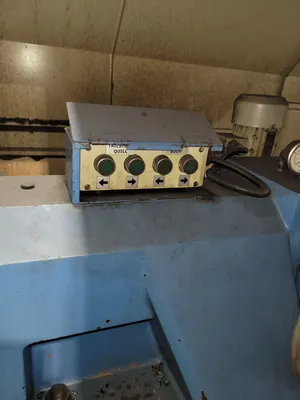

Hydraulic Tailstock w/Rotating Quill
A2-20 Spindle Nose - Auto Lube System
(2) Steady Rests - Tool Post
Heavy-Duty Flat Bed Design
Jorgensen Full Length Chip Conveyor

CATALOG SPECIFICATIONS:
Hole Thru Spindle 14.5”
Swing Over Bed 50”
Swing Over Cross Slide 33.5”
Center Height 25.6”
Center Distance 200”
Spindle Speeds, Range 9 to 300 RPM
Width Of Cross Slide 16.5”
Width Of Carriage 37.4”
X-Axis Travel 28.7”
Tailstock Spindle Center 6 MT
Weigh Approximately 50600 LBS

F.O.B. OUR WAREHOUSE
