USED 2021 HAFFNER TA 144
Overview

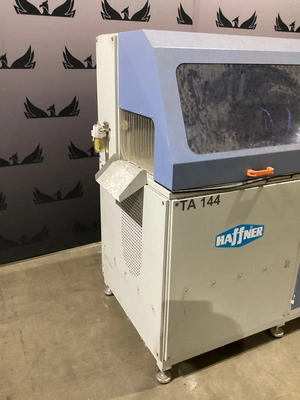

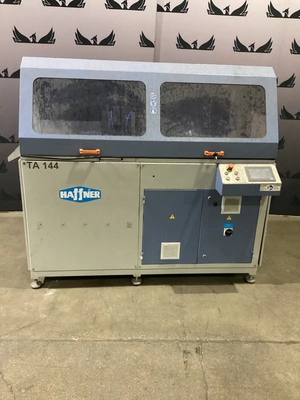

NEW Haffner TA 144 automatic aluminum cleat cutting saw. The CNC-controlled machine processes aluminum cleat profiles with a 600 mm saw blade, automatic profile feed, pneumatic clamping, and integrated touchscreen controls. Has an 8 kW, 400 VAC, three-phase electrical configuration.
Specs

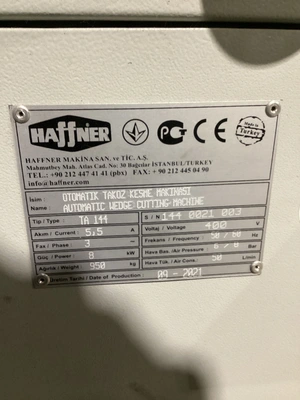

IDENTIFICATION
Manufacturer: Haffner
Model: TA 144
Product Type: Automatic aluminum cleat cutting saw
Serial Number: 144 0021 003
Condition: NEW
YOM: 2021-09
Country of Manufacture: Turkey
CUTTING
Operation: Automatic
Material Application: Aluminum profiles
Saw Blade Diameter: 600 mm
Spindle Speed at 50 Hz: 2,800 RPM
Spindle Speed at 60 Hz: 3,360 RPM
Maximum Profile Height: 200 mm
Minimum Profile Width: 200 mm
Feed Length Range: 5-700 mm
FEED / CLAMPING
Profile Feed: Automatic
Profile Clamping: Pneumatic
Horizontal Clamping: Present
Vertical Clamping: Present
Infeed Roller Conveyor: 3 m
Cutting List: Programmable
Cutting List Data Transfer: Network / USB

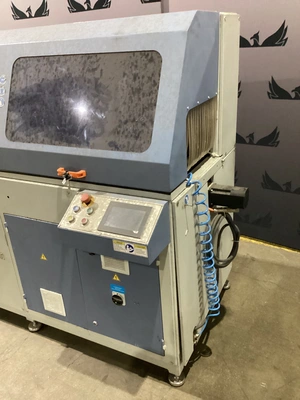

CONTROL / OPERATOR INTERFACE
Control System: CNC
Operator Interface: Industrial PLC panel
Touchscreen Size: 7 in
USB Interface: Present
Network Connection: Present
Safety Cover Switch: Present
Emergency Stop: Present
COOLING / LUBRICATION
Saw Cooling: Automatic spray
Blade Lubrication: Pulse spray mist
ELECTRICAL
Supply Voltage: 400 VAC
Current: 5.5 A
Phase: 3
Frequency: 50 / 60 Hz
Power: 8 kW
PNEUMATIC
Air Pressure: 6-8 bar
Air Consumption: 50 L/min
CONSTRUCTION / INSTALLATION
Machine Configuration: Floor standing
Cutting Area: Enclosed
Viewing Windows: Present
Leveling Feet: Present

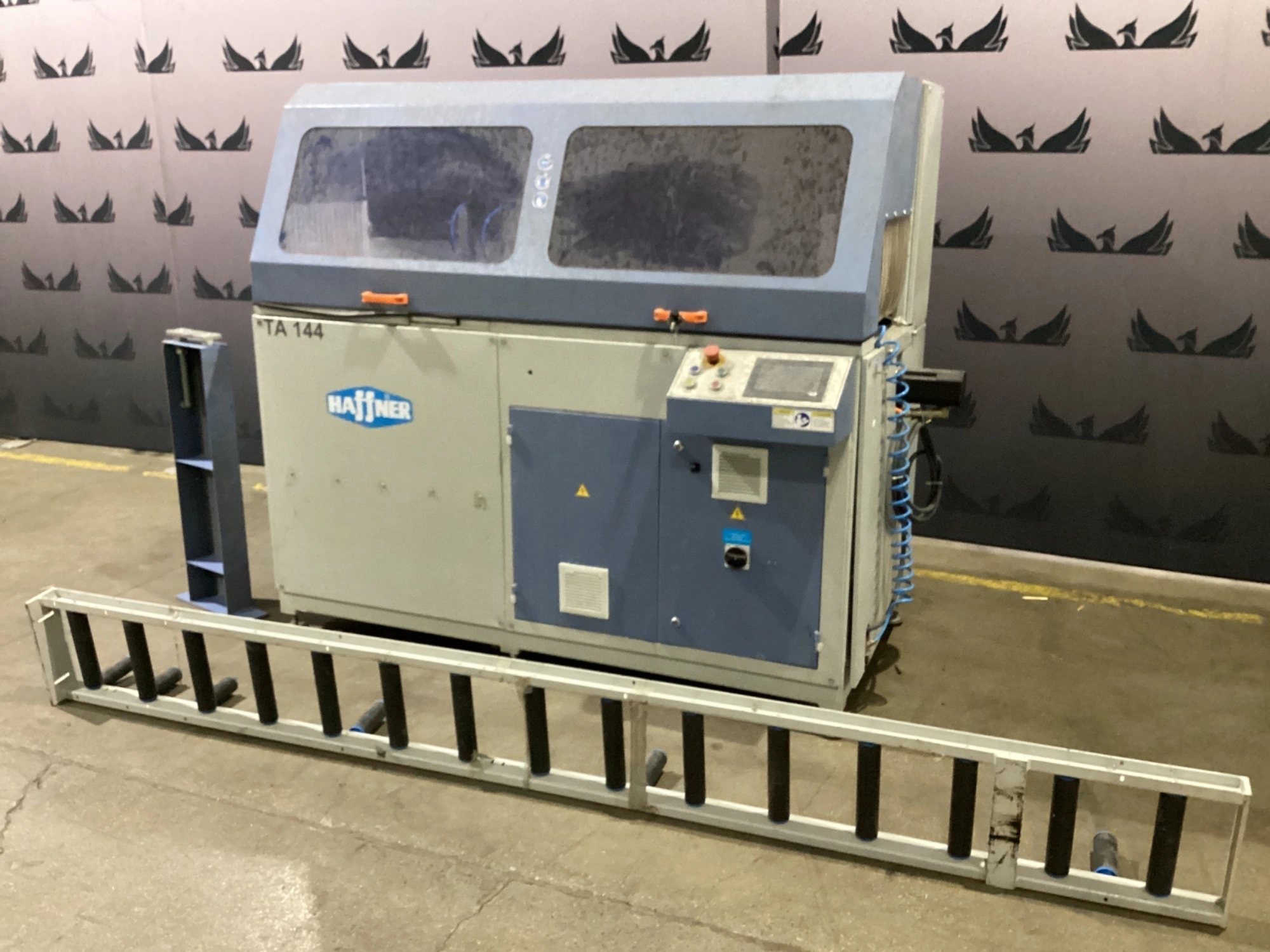

Roller Support: Included
PHYSICAL
Machine Height: 1,700 mm
Machine Length: 2,000 mm
Machine Width: 1,100 mm
Machine Weight: 950 kg
