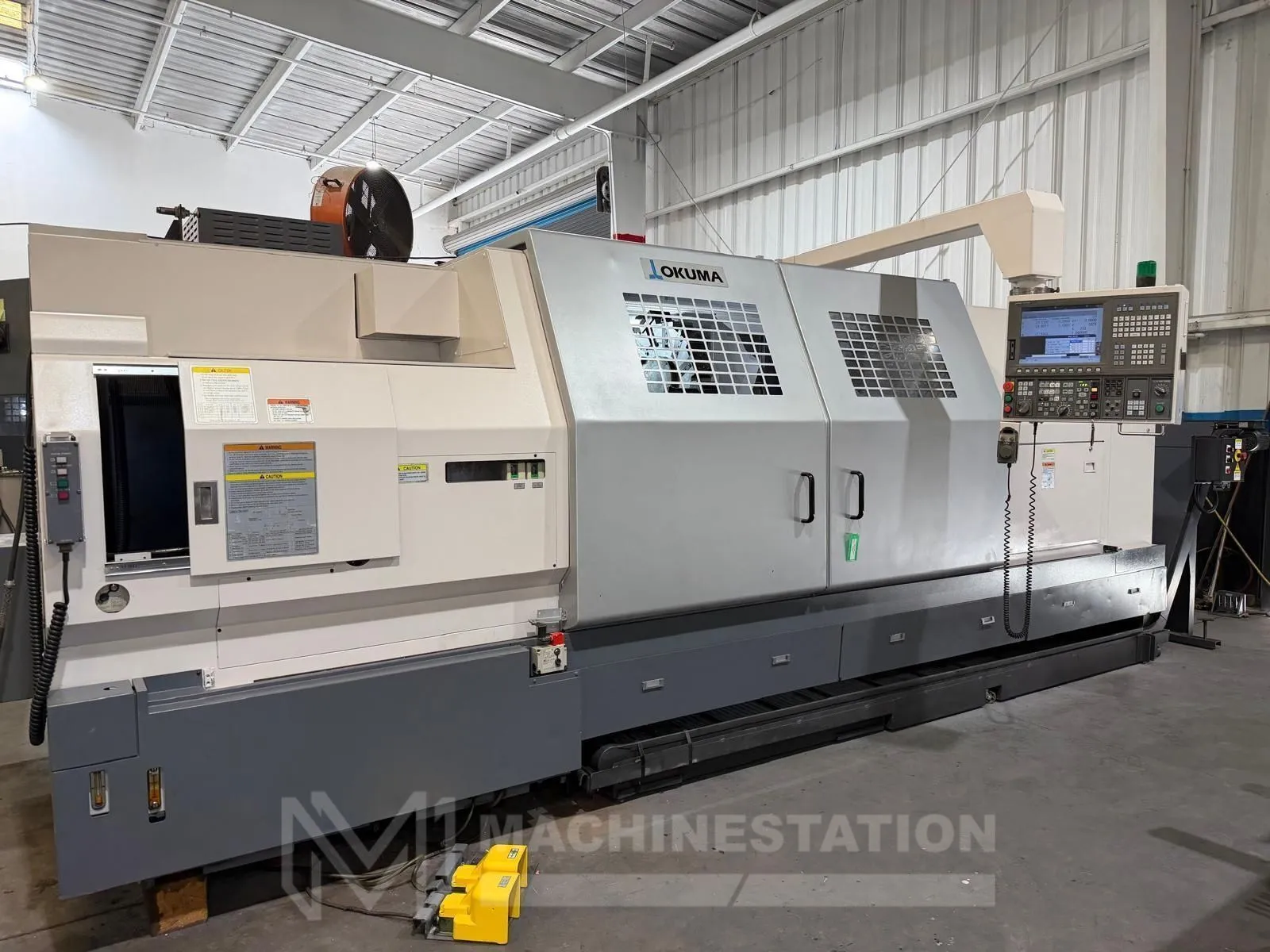

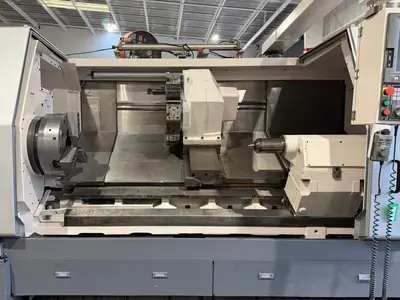

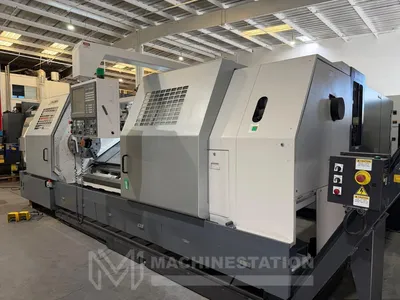

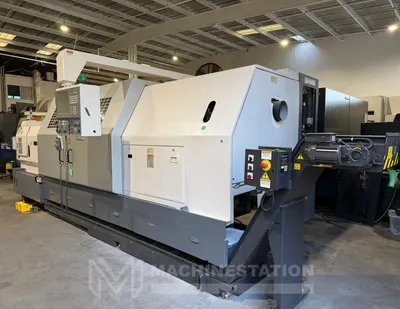

USED 2010 OKUMA LB-35II

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

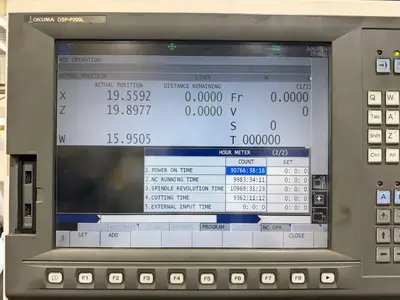

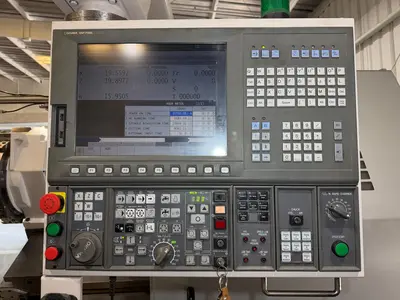

Okuma OSP-P200L CNC Control
Box Way Construction
40 HP High Torque Spindle
USB Ports

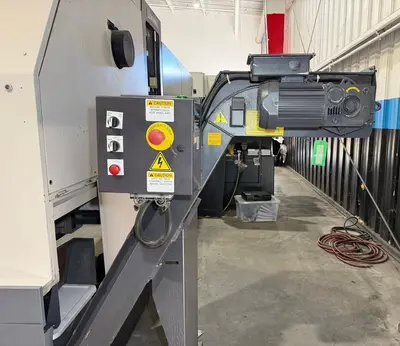

Coolant Tank

Capacity:
Max Turning Diameter: 18.11 inch
Max Turning Length: 118 inch
Swing Over Bed: 27.56 inch
Max Over Saddle: 16.93 inch
Max Bar Capacity: 6.0 inch

Travel:
X Axis Travel: 13.0 inch
Z Axis Travel: 120.0 inch
Rapid Traverse X Axis: 591 IPM
Rapid Traverse Z Axis: 787 IPM

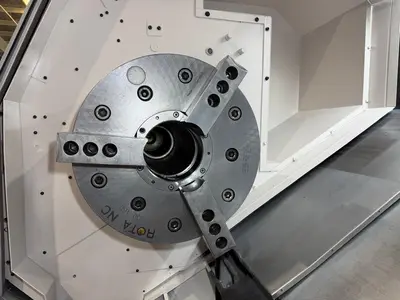

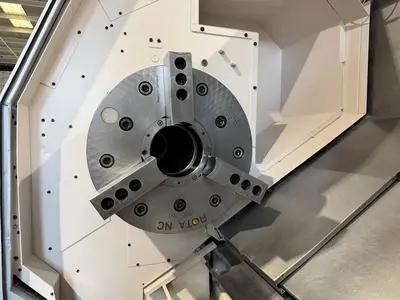

Spindle:
Spindle Nose: A2-15
Spindle Bore: 6.5 inch
Spindle Speed: 1400 RPM
Spindle Motor: 40 HP

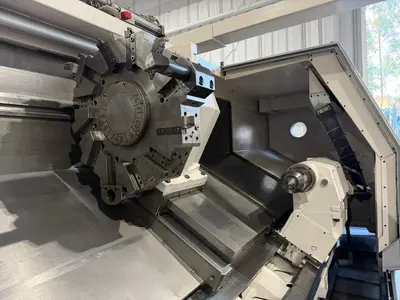

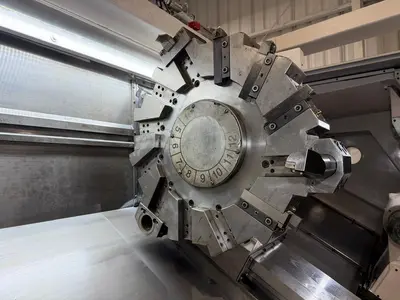

Turret:
Capacity: 12 Station Turret
Turning Tool Shank: 1.0 inch
Boring Bar Shank Diameter: 2.0 inch
Tool Change Time: 0.3 Sec.

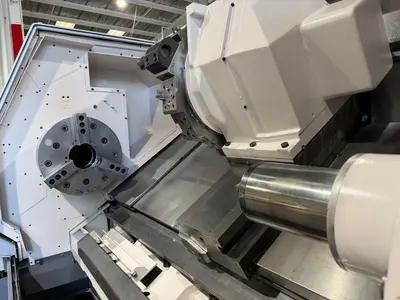

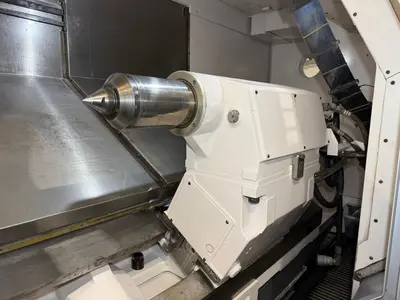

Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Dia.: 4.72 inch
Tailstock Quill Travel: 6.70 inch

General:

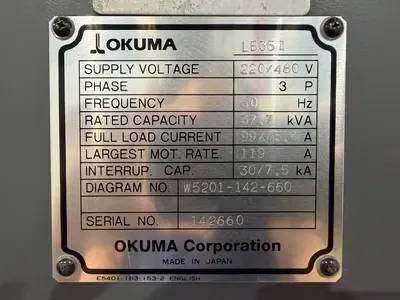

Power: 220/480v / 37.7kva / 3-Phase
Overall Dimensions: 275 inch x 105 inch x 92 inch High Approx.
Weight: 28,380 lbs. Approx.
