USED 2022 BOTTERO 353 BKM
Overview
2022 Bottero 353 BKM automatic glass cutting system designed for precision processing of large-format flat glass. The 353 BKM is part of Bottero’s automatic cutting table line and is commonly used for high-volume glass fabrication and production environments.
Manufacturer: Bottero
Model: 353 BKM
Year: 2022
Type: Automatic CNC Glass Cutting Equipment
Condition: Used
Serial Number: 30900400001704-08372_011
Configuration: Regular Size
Measured Table Size: Approximately 197" L x 114" W
Maximum Processable Glass Size: Approximately 144" x 108"
Metric Maximum Sheet Size: 3,650 x 2,750 mm
Maximum Glass Thickness: 19 mm / approximately 3/4"
Minimum Published Glass Thickness: 2 mm / approximately 5/64"
Maximum Cutting Speed: 150 m/min / approximately 5,906 IPM
Straight-Cut Accuracy: ±0.15 mm / approximately ±0.006"
Table / Material Handling

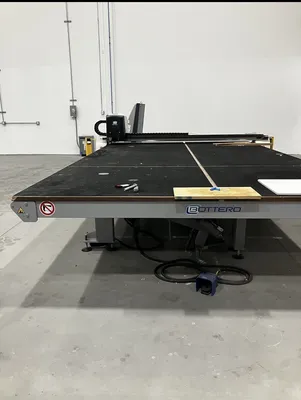

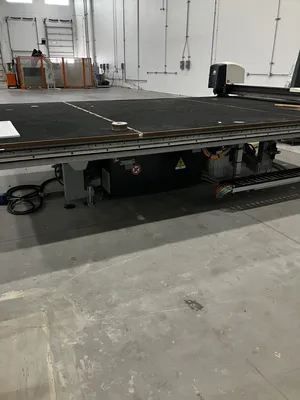

Automatic glass cutting table
Designed for monolithic flat glass
Integrated air-cushion table
Automated glass handling
Automatic cutting-pressure management
Programmable linear and shaped cutting
Breakout capability
Glass loading/positioning capability
Heavy-duty welded industrial machine structure
Cutting System

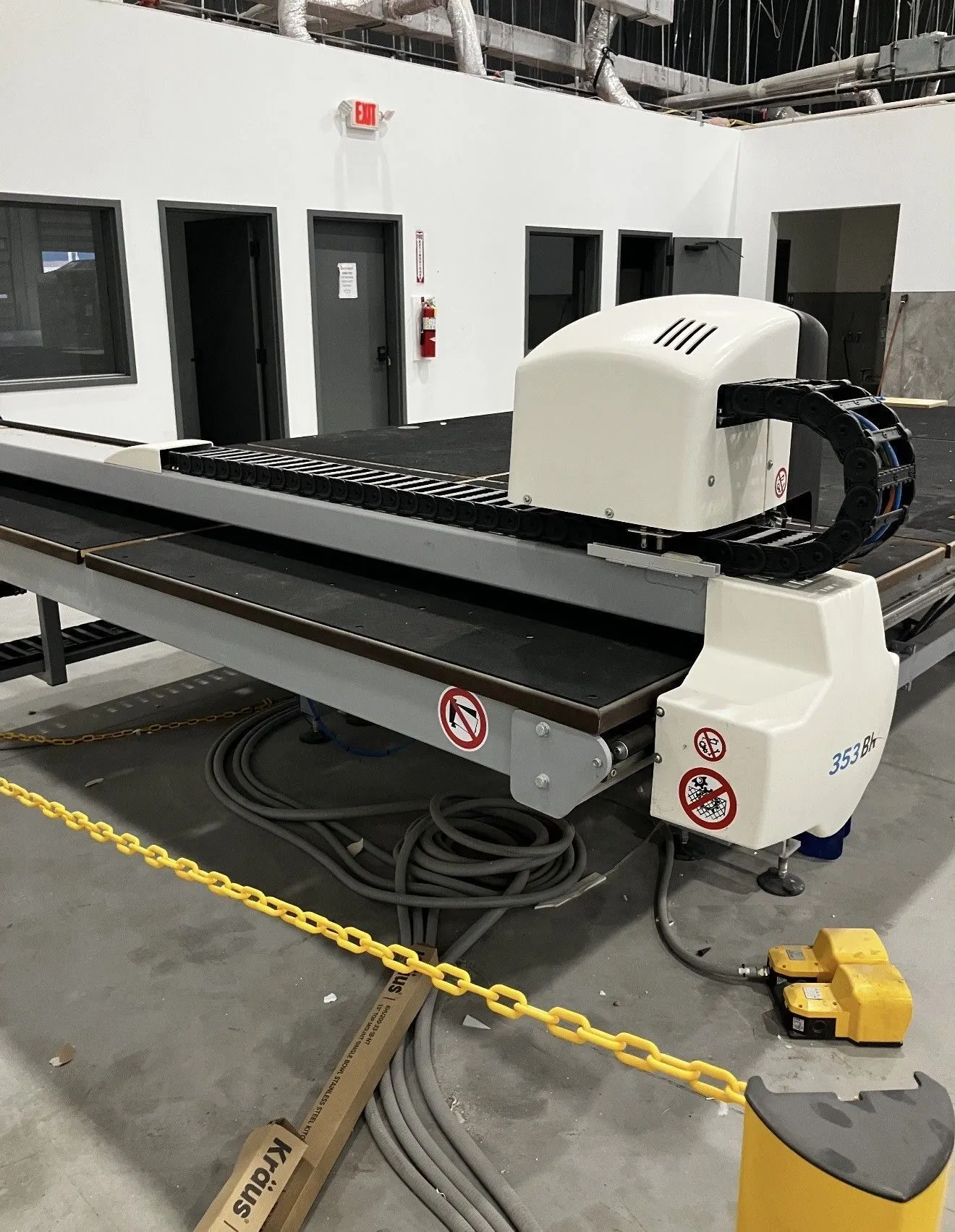

CNC-controlled cutting head
High-speed bridge and carriage movement
Automatic cutting-pressure control
Capable of straight and shaped glass cutting
Integrated cutting lubrication system
Precision bridge and carriage guide system
Control
CNC / computerized operator control
Industrial operator interface
Programmable cutting layouts
Support for optimized glass cutting patterns
CAD / shape-processing capability depending on installed software/options
Electrical Supply: 400 VAC
Phase: 3 Phase + PE
Frequency: 50 / 60 Hz
Installed Power, Regular Configuration: Approximately 10.25 kVA
Compressed Air Operating Pressure: 7 bar / approximately 102 PSI
Maximum Air Pressure: 10 bar / approximately 145 PSI
Maximum Standard Air Consumption: Approximately 70 NL/min
Working Surface Height: Approximately 930 mm ±40 mm / 36.6" ±1.6"
Published Maximum Weight, Regular Configuration: Approximately 1,760 kg / 3,880 lb
Applications
Suitable for processing monolithic flat glass used in:
Architectural glass fabrication
Commercial glazing
Window and door manufacturing
Interior glass
Furniture glass
Custom glass fabrication
General flat-glass production
Specs
Main Table 197x115x124

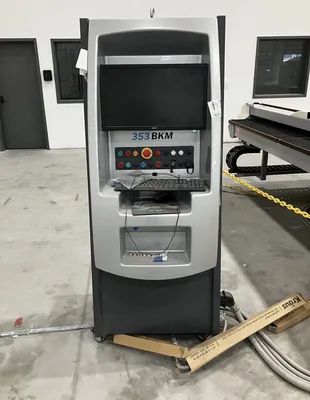

Control Box 29x25x70
Bus Plug/Electrical Pallet 44x40x49
Equipped With
Manufacturer: Bottero
Model: 353 BKM
Year: 2022
Type: Automatic CNC Glass Cutting Equipment
Condition: Used
Serial Number: 30900400001704-08372_011
Configuration: Regular Size
Measured Table Size: Approximately 197" L x 114" W
Maximum Processable Glass Size: Approximately 144" x 108"
Metric Maximum Sheet Size: 3,650 x 2,750 mm
Maximum Glass Thickness: 19 mm / approximately 3/4"
Minimum Published Glass Thickness: 2 mm / approximately 5/64"
Maximum Cutting Speed: 150 m/min / approximately 5,906 IPM
Straight-Cut Accuracy: ±0.15 mm / approximately ±0.006"
Table / Material Handling
Automatic glass cutting table
Designed for monolithic flat glass
Integrated air-cushion table
Automated glass handling
Automatic cutting-pressure management
Programmable linear and shaped cutting
Breakout capability
Glass loading/positioning capability
Heavy-duty welded industrial machine structure
Cutting System
CNC-controlled cutting head
High-speed bridge and carriage movement
Automatic cutting-pressure control
Capable of straight and shaped glass cutting
Integrated cutting lubrication system
Precision bridge and carriage guide system
Control
CNC / computerized operator control
Industrial operator interface
Support for optimized glass cutting patterns
CAD / shape-processing capability depending on installed software/options
Published Utility Requirements
Electrical Supply: 400 VAC
Phase: 3 Phase + PE
Frequency: 50 / 60 Hz
Installed Power, Regular Configuration: Approximately 10.25 kVA
Compressed Air Operating Pressure: 7 bar / approximately 102 PSI
Maximum Air Pressure: 10 bar / approximately 145 PSI
Maximum Standard Air Consumption: Approximately 70 NL/min
Published Physical Specifications
Working Surface Height: Approximately 930 mm ±40 mm / 36.6" ±1.6"
Published Maximum Weight, Regular Configuration: Approximately 1,760 kg / 3,880 lb
Applications
Suitable for processing monolithic flat glass used in:
Architectural glass fabrication
Commercial glazing
Window and door manufacturing
Interior glass
Furniture glass
Custom glass fabrication
General flat-glass production
