USED 2025 STV R10
Overview

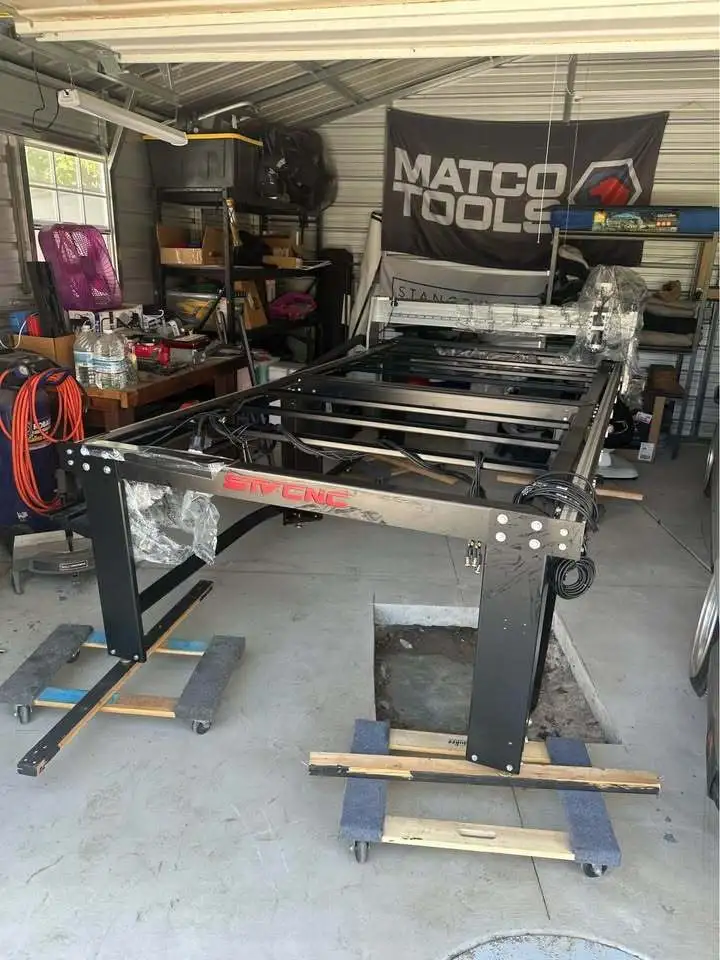

2025 STV R10 Modular Router. This router was lightly used and features a 5 × 10 Modular Router Table ( Cutting Envelope: 5′ x 10′ ). The STVCNC STVR10 is a robust, industrial-grade Modular Router Table that offers fast, precise linear motion for 2D/3D Contouring with a precise motion system and a sturdy, heavy-duty build. Our product line consists of prime-selected components and backed by a long list of great features, exceptional lifetime support all within an affordable price.
Specs
Router Table Specifications:
➤ Cutting Envelope Dimensions: 5’(W) x 10’(L)
➤ Breakdown: X = 60”, Y = 120”, Z-Axis travel = 5.75” inches Maximum
➤ Linear System: All Axis On Precision Ball Bearing Carriage Guide Rails
➤ Mechanical Drive System: X-Axis & Y-Axis Rack & Pinion, Made In USA
➤ Mechanical Drive System: Z-Axis – Full CNC’d Billet Precision Ball Lead-Screw
➤ System Interface: Linux OS
➤ Motion Accuracy: (+) or (-) 0.005” per 12″ inches
➤ Step Resolution: 0.0005” inches
➤ Default Maximum Travel Speed: 600″ inches per minute.
➤ Input Power: 110V AC 15A Circuit
➤ Table Surface: Slotted Support Braces to fasten a solid wasteboard down.
➤ Input Power: 110V AC for the Router Table
➤ System Ratio: 1:1 Direct Drive Gear Ratio
Equipped With
The Modular STV®R 10 Router Base Model includes::
➤ 5′ W x 10′ L Cutting Envelope Work Area
➤ Sturdy, Laser Cut Modular Frame (assembly required)
➤ (4) Industry Standard Motors & Mounts (1:1 Direct Drive Gear Ratio)
➤ 110V Floating Control Box w/ Magnetic Vent Cover & E-Stop
➤ Controller Ethernet Connectivity ( 6′ foot long cable)
➤ Lower Leg Brace Supports
➤ Upper Cross Brace Supports for Wasteboard
➤ Tri-Axis Hardened & Ground Linear Guide Rails w/ Gliding Carriages
➤ Advanced Cable Management & Automation Wiring
➤ Industrial Built Gantry & Interchangeable Cable Track Tray
➤ Z-Axis Billet Precision Ball Lead Screw for Spindle
➤ Important: Wasteboard, Wasteboard Fasteners and Dust Extractor Hose are not included.
Includes Spindle:
➤ Air-cooled 2.2 kW (3HP) Low-Noise* Spindle
➤ Speed: 24,000RPM
➤ Volts: 110V; Asynchronous 3 Phase Motor
➤ Material: Aluminum Protective Housing
➤ Directions: Spins Clockwise & Counterclockwise
➤ Certifications: CE, ISO9001
➤ Attached Cooling Fan for Heat Dissipation.
➤ Includes High Precision ER20 Collet for 1/4″ inch Tools/Router Bits. (CNC tool holder to lock your bit in place.)
➤ Includes High Precision ER20 Collet for 1/2″ inch Tools/Router Bits. (CNC tool holder to lock your bit in place.)
➤ Variable Frequency Driver (drives the speed of spindle)
➤ Pre-configured with our Industry Standard Settings to optimize Spindle’s Performance.
➤ 110V Single Phase Input, 110V 3-Phase Output
➤ Frequency: 50Hz/60Hz Input; 0-400Hz Output
➤ Over Voltage Protection
➤ Current limiting
➤ S-Curve Ramp-up/Ramp-down time (Acceleration/Deceleration)
➤ Low Electromagnetic Interference
Includes Mini PC & Control Software:
➤ Dedicated, Fanless Mini PC with 2.5 GHz Intel Dual-Core Processor & 4GB RAM.
➤ Optimum™ CNC Control Software Package Installed.
➤ Essential for 2D/3D Contouring
➤ Software OS: Linux
➤ File types: TAP, TXT, NC, DNC, ISO, CNC
➤ Ports: Audio, LAN1, LAN2, HDMI, COM1, COM2, USB 2.0, USB 3.0, VGA, WiFi, DC12V Unit.
➤ Important: The STV®R includes a MINI PC and necessary cabling. You will be required to source a Display monitor, keyboard and mouse.
