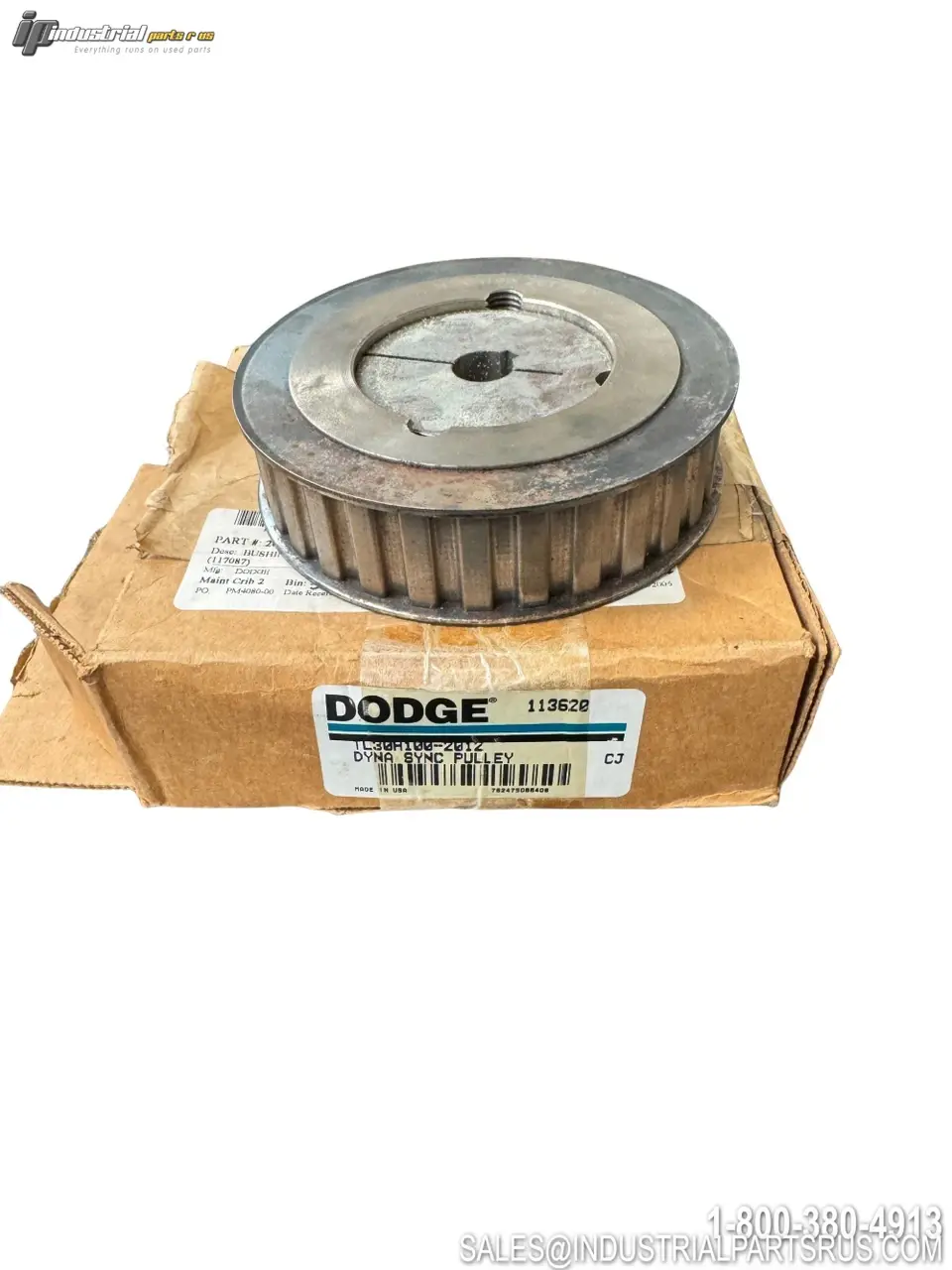

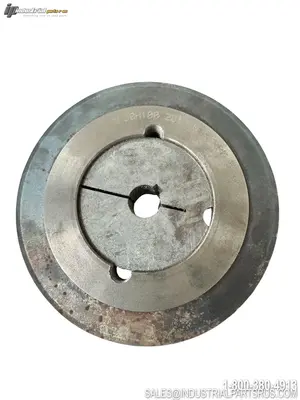

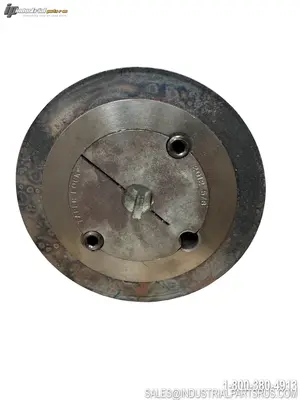

USED DODGE TL30H100-2012

The Dodge TL30H100-2012 is a Dyna-Sync Type KF1 timing belt pulley designed for synchronized, no-slip power transmission applications. It features a Taper-Lock bore that accepts a 2012-series bushing (sold separately), accommodating shaft diameters from 1/2 in to 2-1/8 in. The pulley is constructed from ductile iron with a black oxide finish and flanged steel flanges, providing reliable, low-maintenance performance with virtually no backlash.
Specification
Value
Brand
Dodge
Model / Part Number
TL30H100-2012
Manufacturer Part Number (MPN)
113620
Product Type
Timing Pulley (Dyna-Sync Sprocket)
Series / Style
Dyna-Sync Type KF1
Number of Teeth (Grooves)
30
Belt Pitch
1/2 in (H-Series)
Belt Width
1 in (1.062 in usable)
Outside Diameter
5.02 in
Pitch Diameter
4.775 in
Flange Diameter
5.02 in
Face Width
1.32 in
Hub Projection
0.06 in
Bore Type
Taper-Lock (requires 2012 bushing)
Bore Diameter Range
1/2 in to 2-1/8 in
Required Bushing
2012 Taper-Lock
Material
Ductile Iron
Flange Material
Steel
Finish
Black Oxide
Hub Configuration
Taper-Lock Hub
Drive Efficiency
~98%
Drive Ratio
8.5:1
Lubrication Required
No
Weight
4.33 lb
We warranty all items for 30 days from date of purchase.
