USED 2005 WEEKE OPTIMAT BHP 200

Lot Closes:: 10/13/2026 9:00:00 AM PT

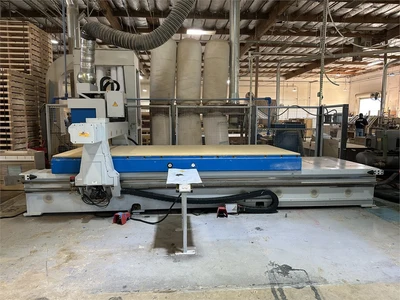

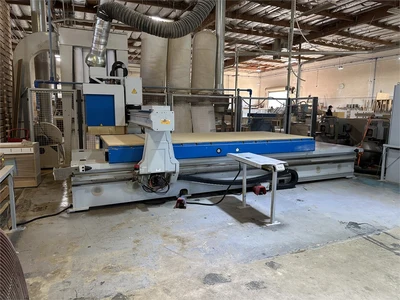

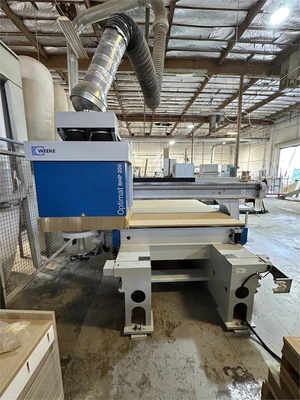

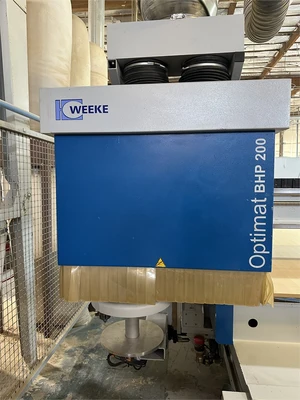

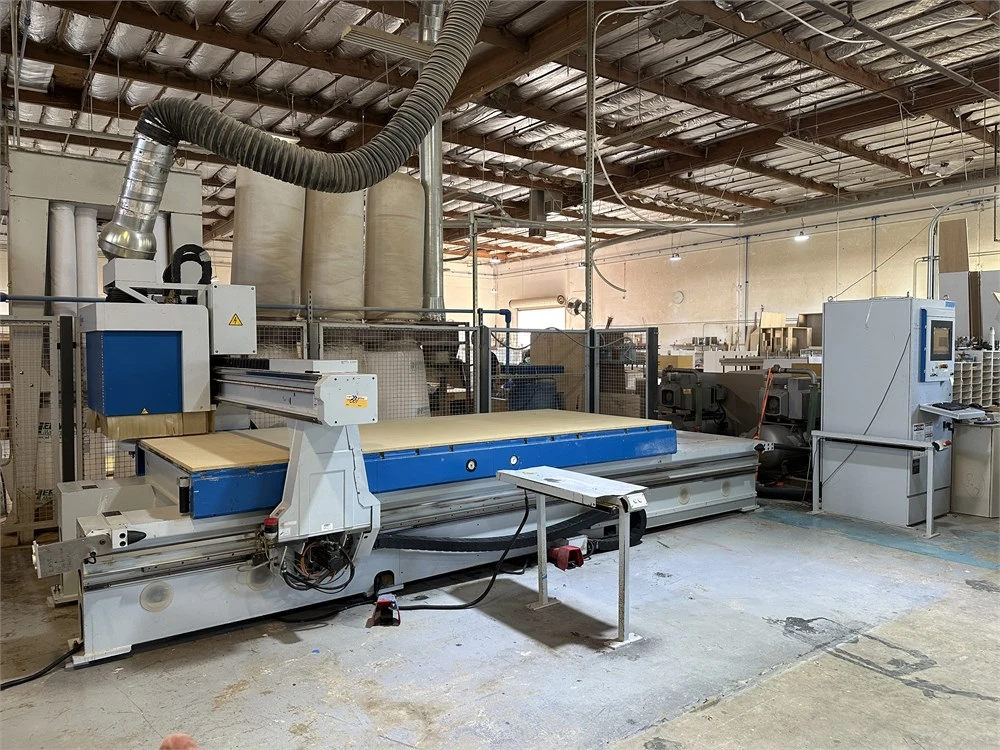

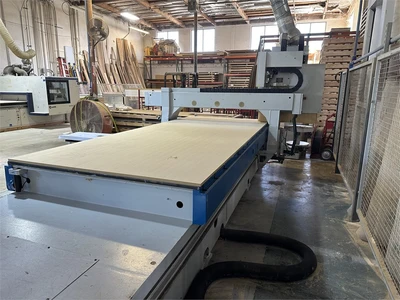

Weeke "BHP 200" CNC Router
See video of machine in operation

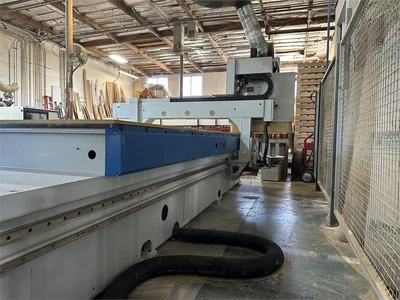

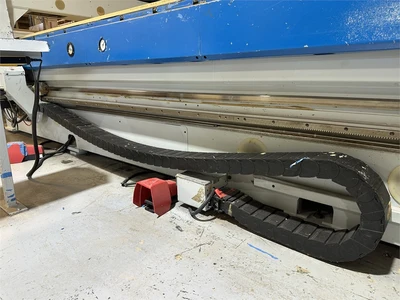

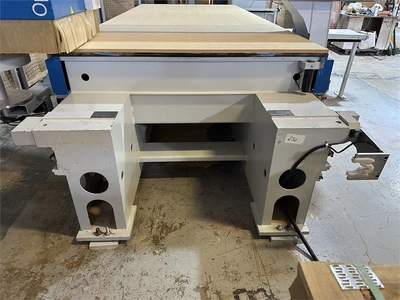

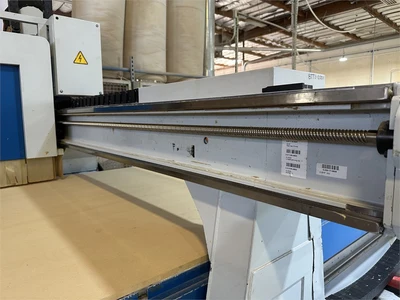

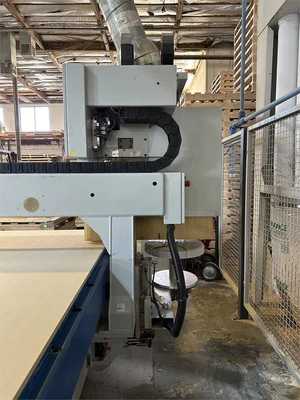

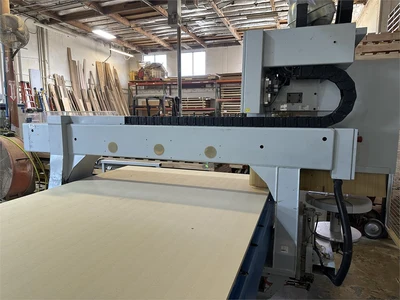

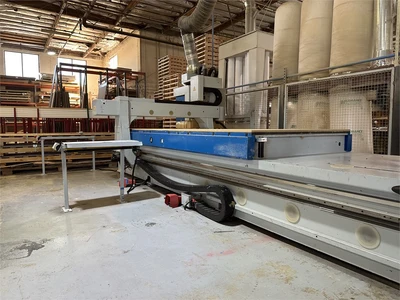

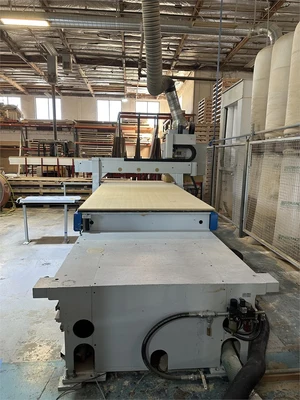

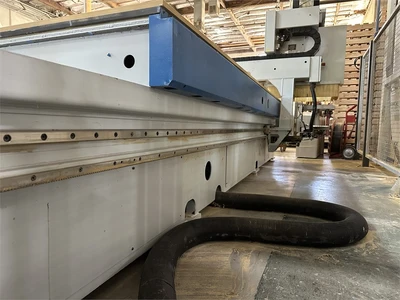

Fixed table, moving gantry design

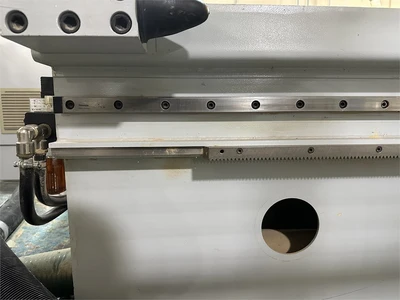

3,700 mm (145") length, 1,550 mm (61") width; and Z-axis 370 mm (14-1/2"); THK linear motion guides on all axes, feed speed on X-axis is 165 FPM, Y-axis 131 FPM and Z-axis is 65 FPM.  Axis stroke/positioning speed: X-axis 50 M/min., Y-axis 40 M/min. and Z-axis 20 M/min.

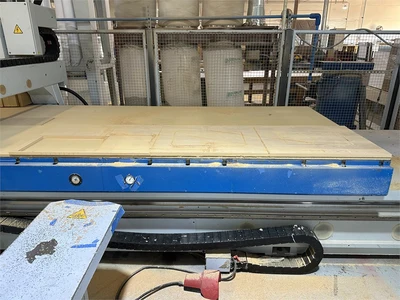

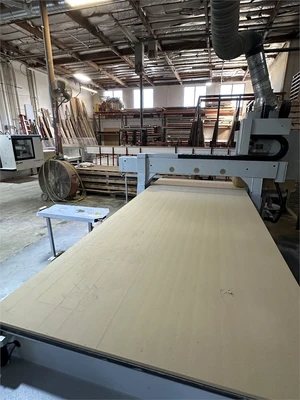

Phenolic router table with pneumatic reference pins

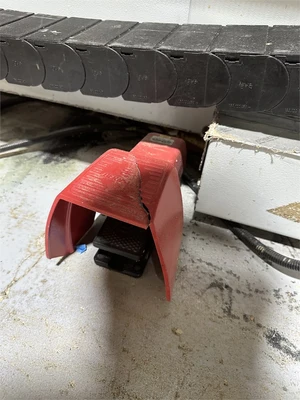

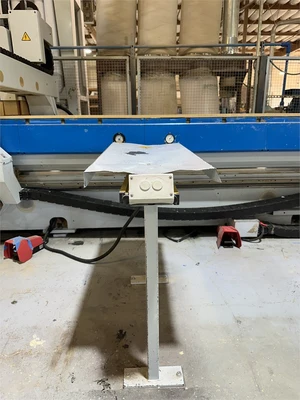

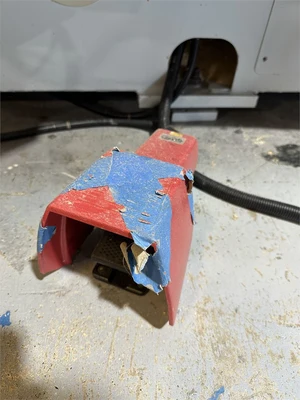

(2) foot pedal operation for independent vacuum zones

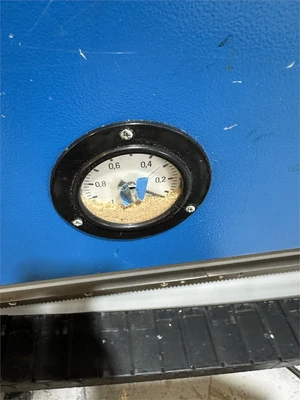

(2) vacuum gauges on front of machine, one per zone

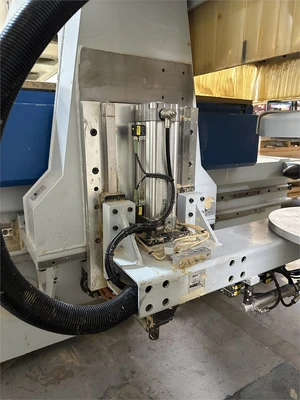

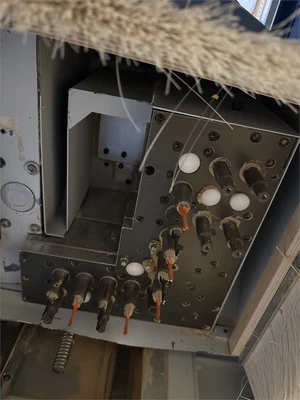

Boring unit
     (10) vertical spindles
     2 HP motor
     Variable speed, 1500 - 7500 RPM

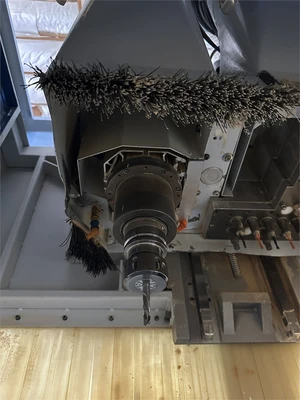

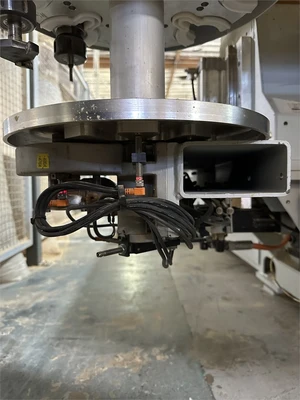

Router
     12 HP
     Variable speed, 1200 - 24000 RPM
     CW/CCW spindle rotation
     HSK, quick-change

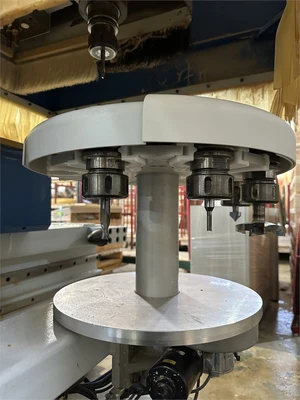

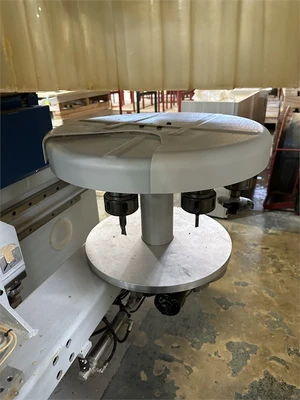

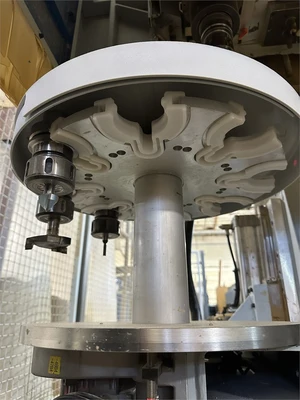

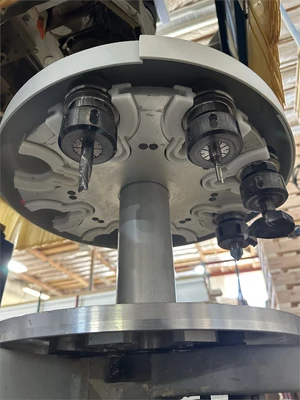

(8) position rotary tool changer
Remote tool change position on front left side of machine

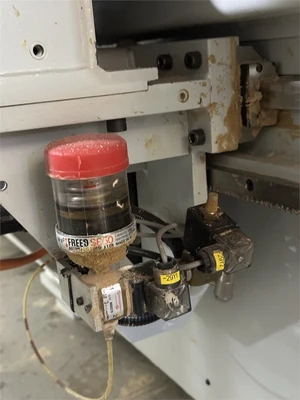

Automatic lubrication system
Sound enclosure

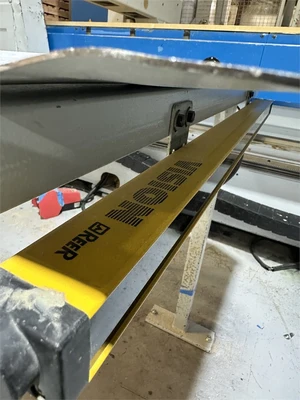

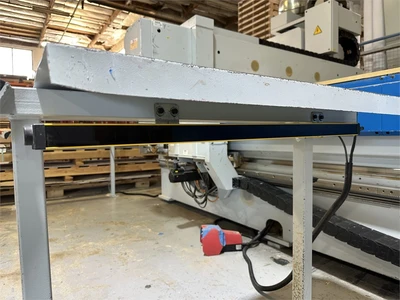

Front photo barrier
Safety fencing

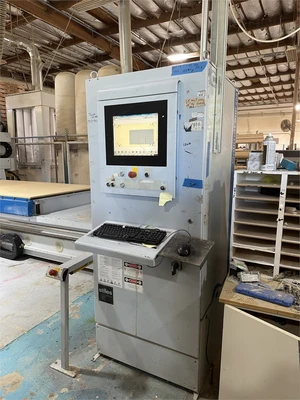

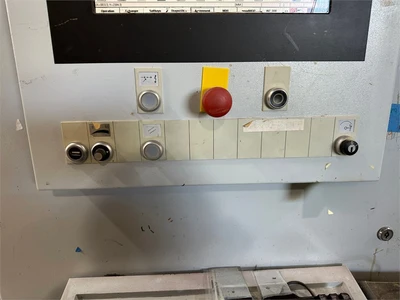

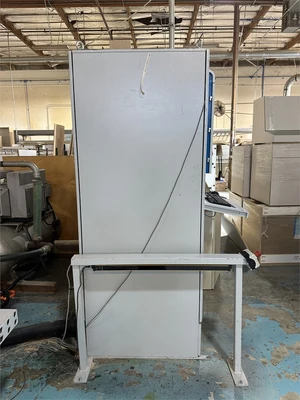

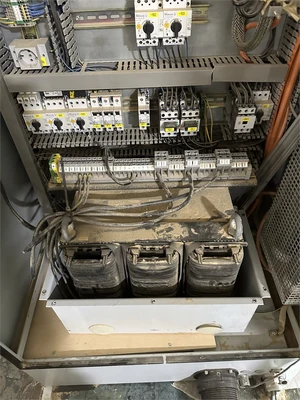

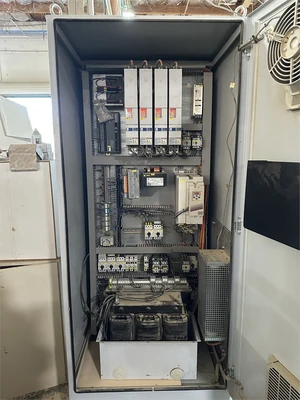

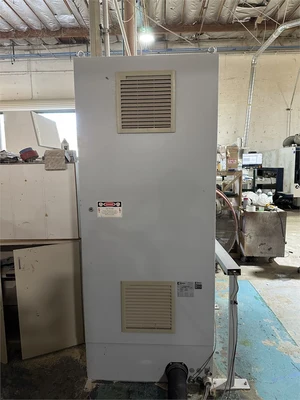

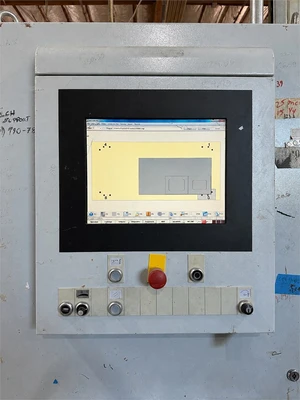

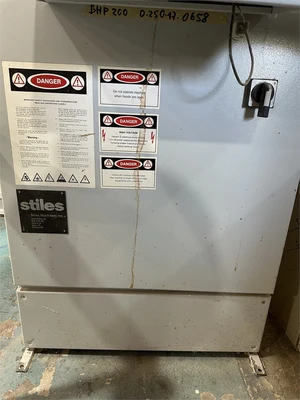

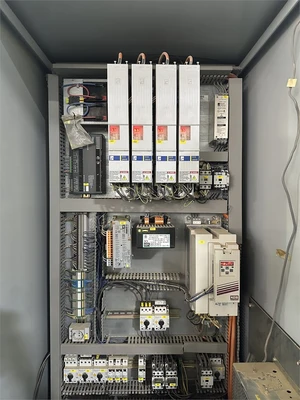

Control cabinet

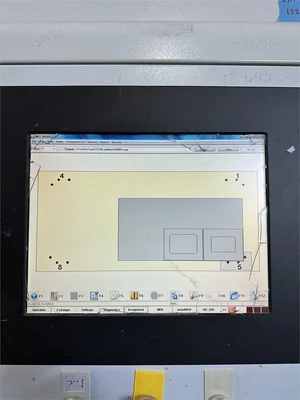

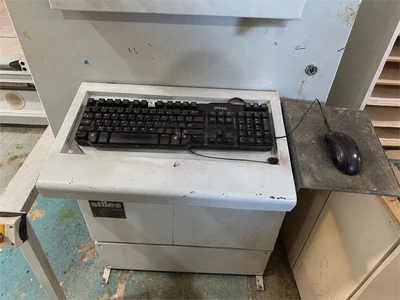

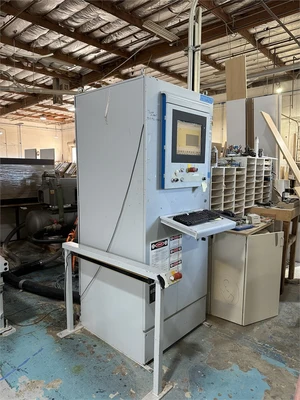

     PC with standard keyboard and mouse
     Windows operating system
Installed tooling and tool holders
Manuals

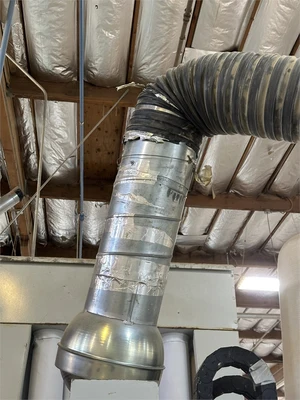

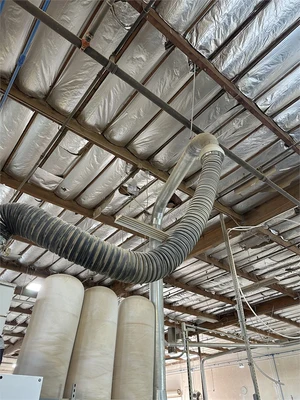

Dust collection flex hose
Vacuum pumps NOT included, offered in lots 002 and 003
Dust collection ducting (other than flex hose) NOT included
