COMPONENTS FOR HOT WASH LINE -PET

Bottle flake will do 1500–2000 pounds per hour heavy materials such as bucket or barrel refrains will do over 3000 pounds per hour all other major components -It’s rated well over 3000 pounds an hour or more.  Was setup to hot wash PET flake and regrind, they were also running Milk bottle flake with this line as well. The line was running up to 4 months ago and the grinder and boiler that was heating the water was sold off  – company  paid $300,000. for it..

WASH LINE COMPONENTS

RECYCLING SYSTEMS MODEL KS-20-70 TROMMEL SCREEN
APPROX 12 FT. L X 57 IN. DIAM. TROMMEL DRUM
2 IN. DIAM. SCREEN OPENINGS
COMPLETE WITH APPROX 60 IN. L X 26-1/2″  W OUT FEED CONVEYOR
NOTE: SUPPORT LEGS ON PALLET SHOWN IN PHOTO NOT INCLUDED

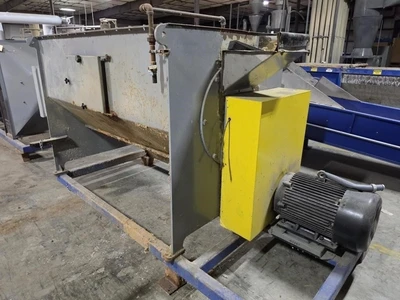

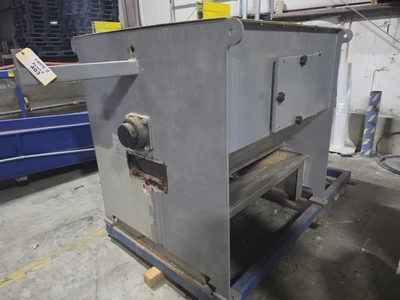

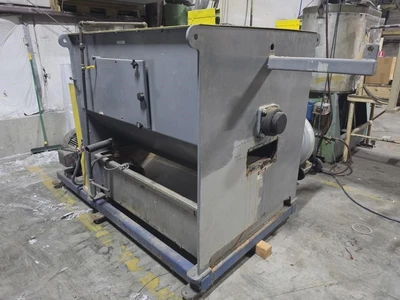

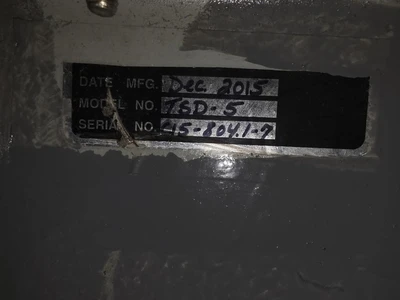

2015/2016 RECYCLING SYSTEMS:  TURBO DRYER MODEL TSD-5 FROM MILK BOTTLE WASH LINE
MFG. DEC 2015
WITH APPROX. 60″ PERFORATED ROTATING SCREENING DRUM
ENCLOSED STEEL HOUSING WITH FEED HOPPER

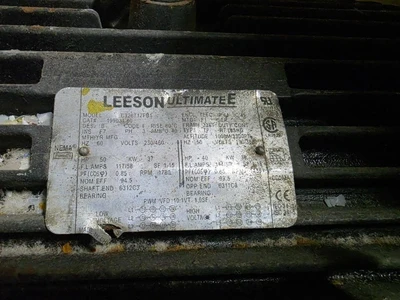

LEESON MODEL ULTIMATE C326T17FB1 TEFC 40 HP ELECTRIC MOTOR
37 Kw.
230/460V
3 PH
60 HZ.
1,780 RPM
FRAME 326T
HEAVY DUTRY STRUCTURAL BASE
MATERIAL DISCHARGE CHUTES

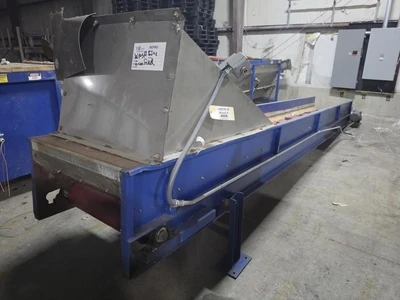

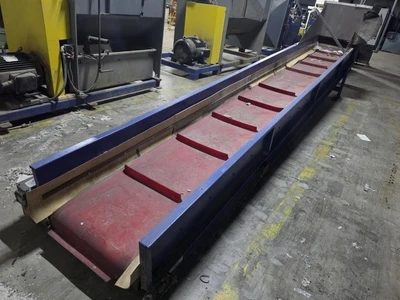

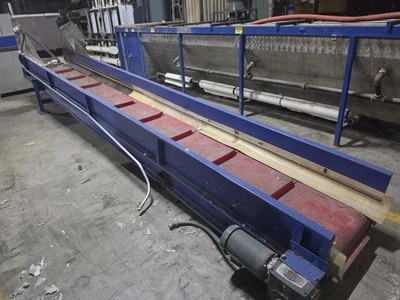

CUSTOM FABRICATED MATERIAL IN FEED CONVEYOR
APPROX 20 FT L X 25 IN. WIDE
TOP-DRIVE CONFIGURATION
MFG. APPROX 2015-2016
LINE WITH INCLINE BELT CONVEYORS STAINLESS STEEL
TANKS PIPING ELECTRIC MOTORS BLUE FRAME

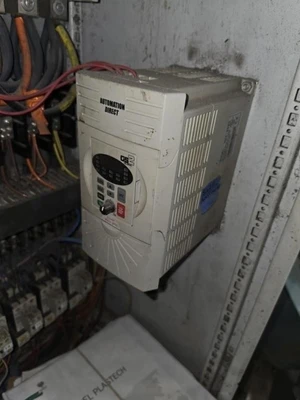

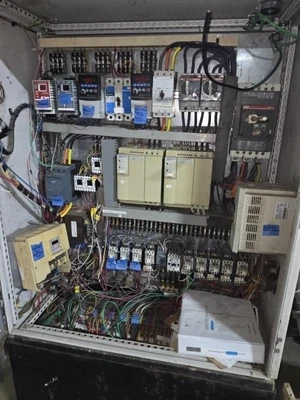

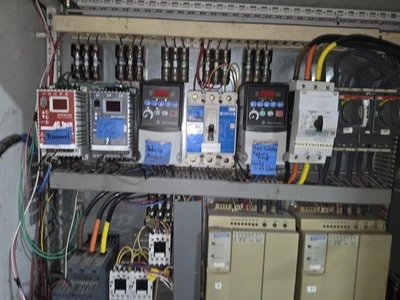

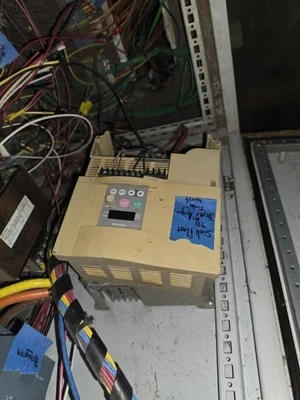

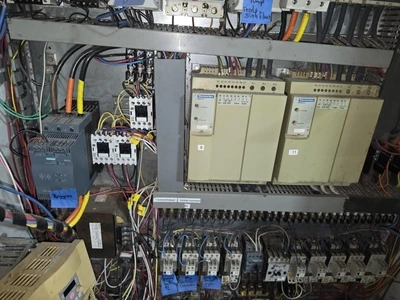

WASH LINE CONTROL PANEL

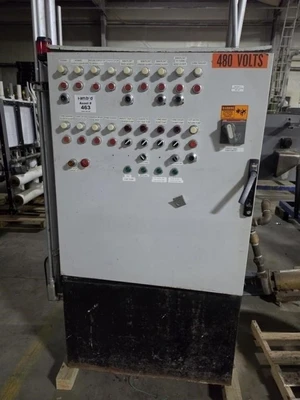

RECYCLING SYSTEMS WASH LINE CONTROL PANEL
480 VOLTS – 400 AMP
AUGER FEED 20′ WASH LINE

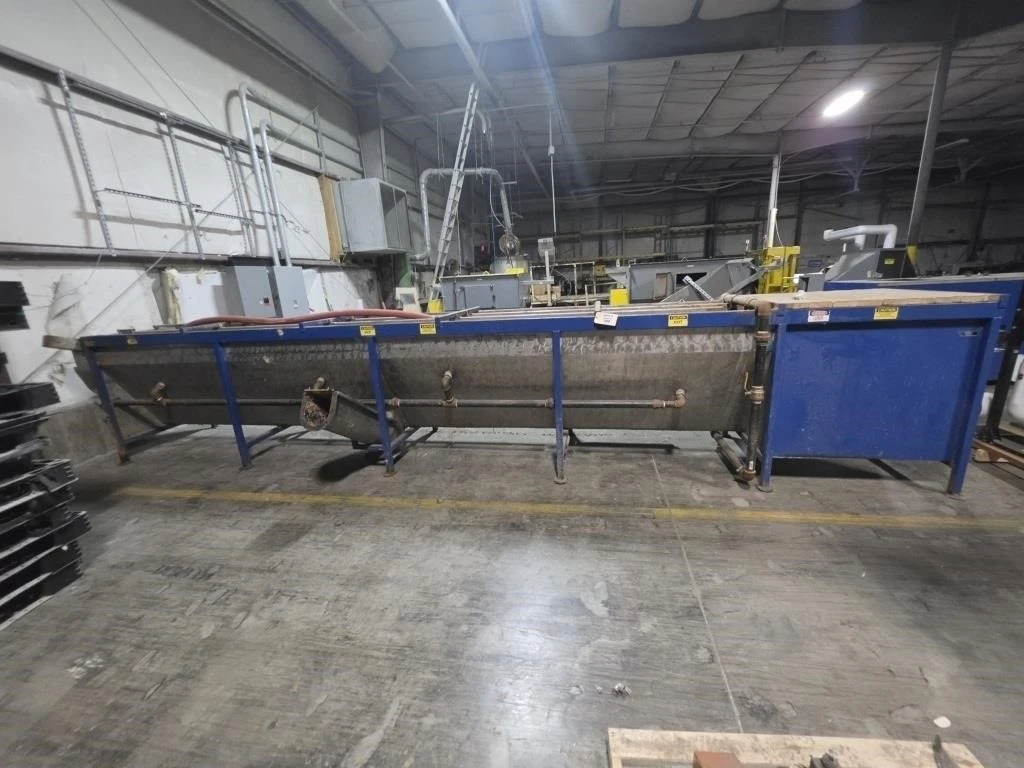

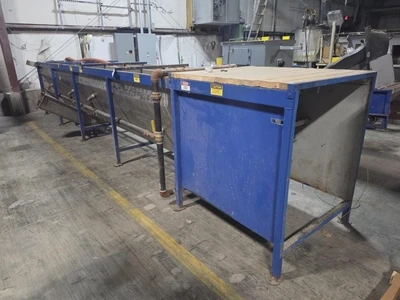

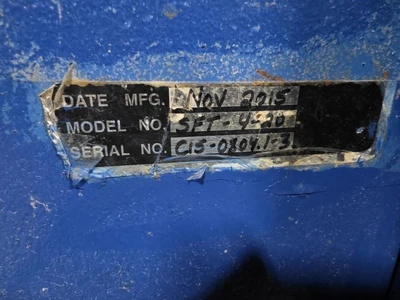

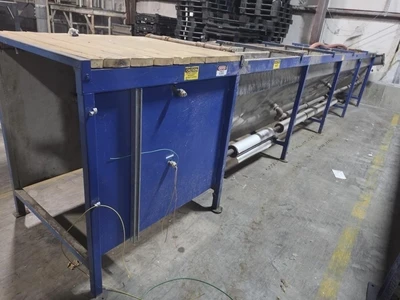

RECYCLING SYSTEMS TRIPLE-RAIL MATERIAL WASH TANK  MODEL SFT-4-20
APPROX 20 FT LONG X 38 IN. WIDE BX 39 IN. DEEP – MFG. 2015
COMPLETE WITH TRIPLE-RAIL MATERIAL FEED AUGERS
MATERIAL IN FEED AND DISCHARGE CHUTES
ASSOCIATED DRIVE MOTORS AND GEAR DRIVES

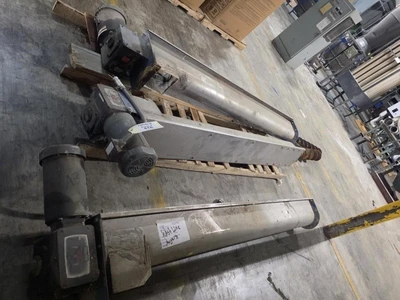

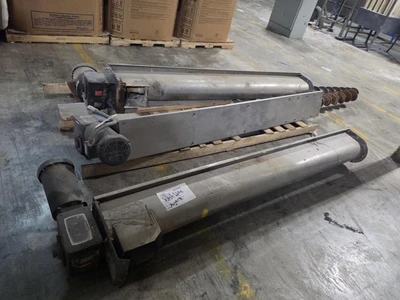

THREE (3) VARIOUS SIZED MATERIAL OUT FEED AUGER
CONVEYOR SECTIONS WITH ELECTRIC GEAR MOTORS

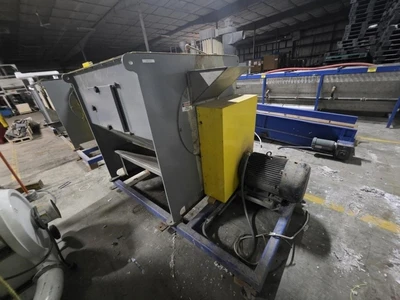

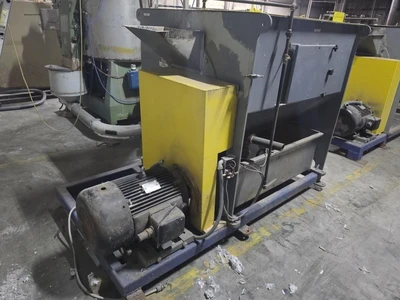

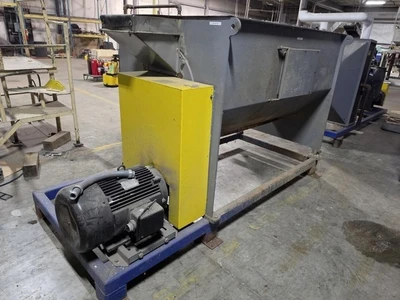

RECYCLING SYSTEM: TURBO WASHER WITH 40 HP MOTOR
2015/2016 RECYCLING TURBO MATERIAL WASHER MODEL TSW-7 FROM MILK BOTTE WASH LINE MFG. 2015

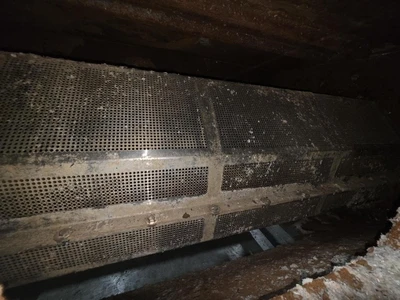

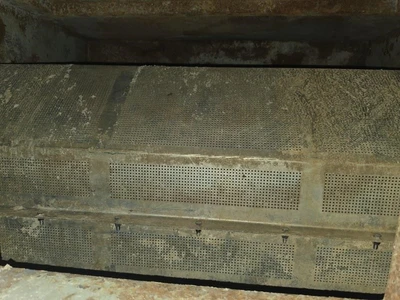

WITH APPROX 84″ PERFORATED ROTATING SCREENING DRUM
ENCLOSED STEEL HOUSING FEED HOPPER

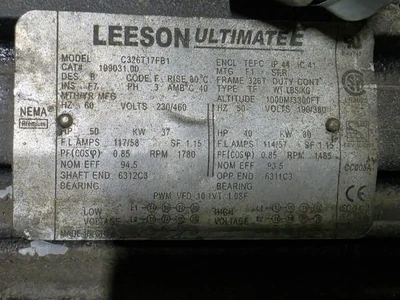

WITH LEESON ULTIMATE C326T17FB1 MOTOR – CAT 199031 B00 – 50 HP 7 KW – 3 PH 60 HZ 1780 RPM

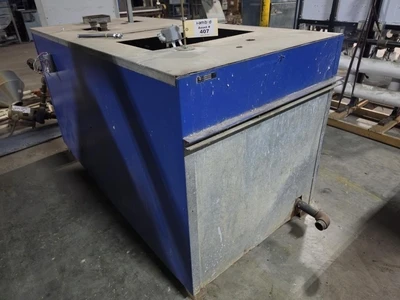

HOT WASH TANK

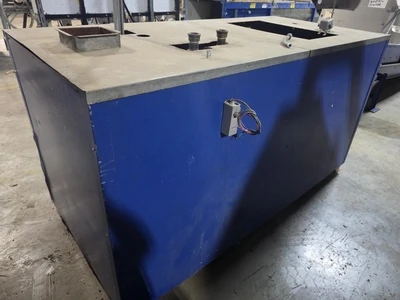

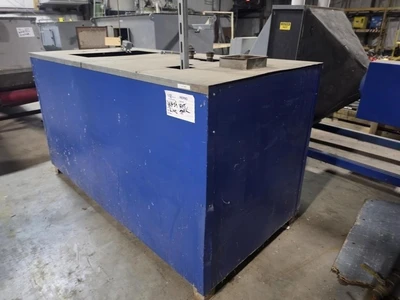

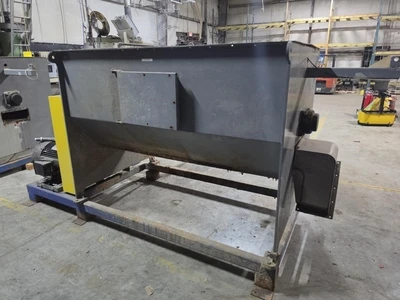

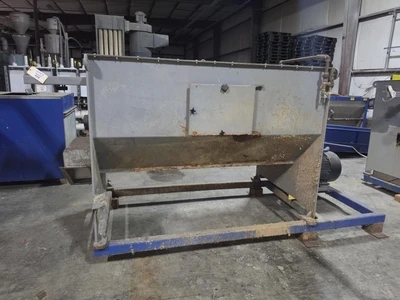

RECYCLING MATERIAL HOT WASH TANK
APPROX 96 IN. LONG X 45 IN. WIDE X 48 IN. HIGH
DUAL SIDED CONFIGURATION
HEAVY-DUTY WELDED STEEL CONSTRUCTION- MFG. 2015-2016

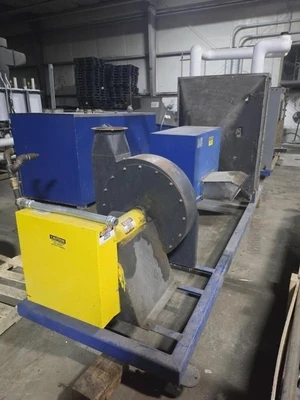

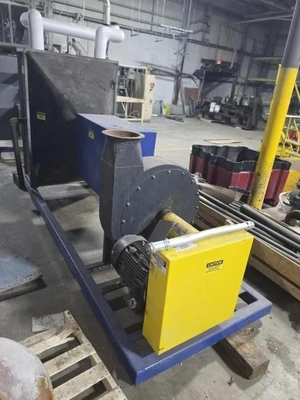

TURBO AIR DRYING UNIT WITH BLOWER
RECYCLING TURBO DRYING UNIT – MFG 2016
COMPLETE WITH APPRIX 30 IN. MATERIAL FEED BLOWER

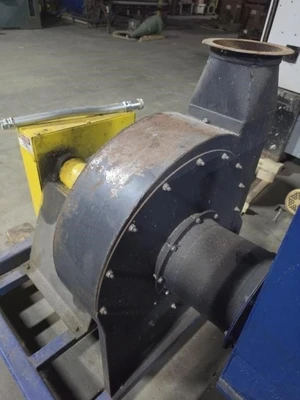

HEAVY DUTY CENTRIFUGAL BLOWER

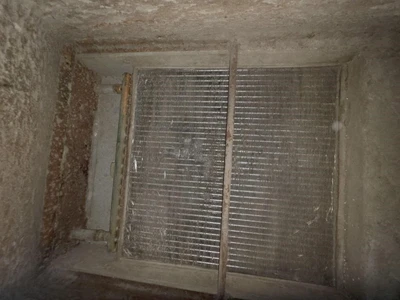

INSULATED HEATED DRYING CHAMBER WITH INTERNAL HEAT EXCHANGER
INLET AND OUTLET DUCT CONNECTIONS
STRUCTURAL STEEL SKID BASE
MATERIAL SURGE HOPPER
RECYCLING SYSTEMS MATERIAL SURGE HOPPER
APPRIX. 60 IN. IN DIAMETER X 60 IN. STRAIGHT SIDE CYLINDRICAL HOPPER
APPROX. 4 CUBIC YARD CAPACITY
COMPLETE WITH STAND, SUPPORT FRAME, AND ASSOCIATED COMPONENTS
