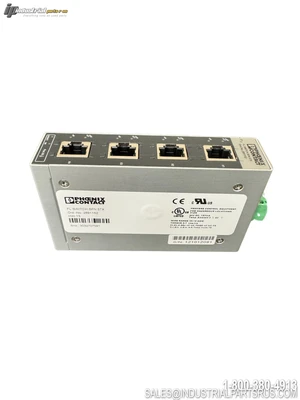

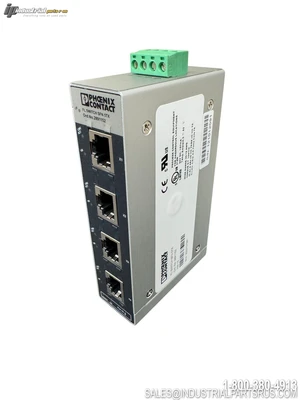

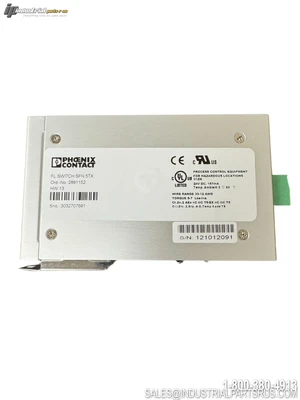

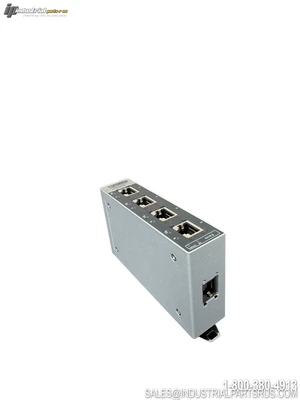

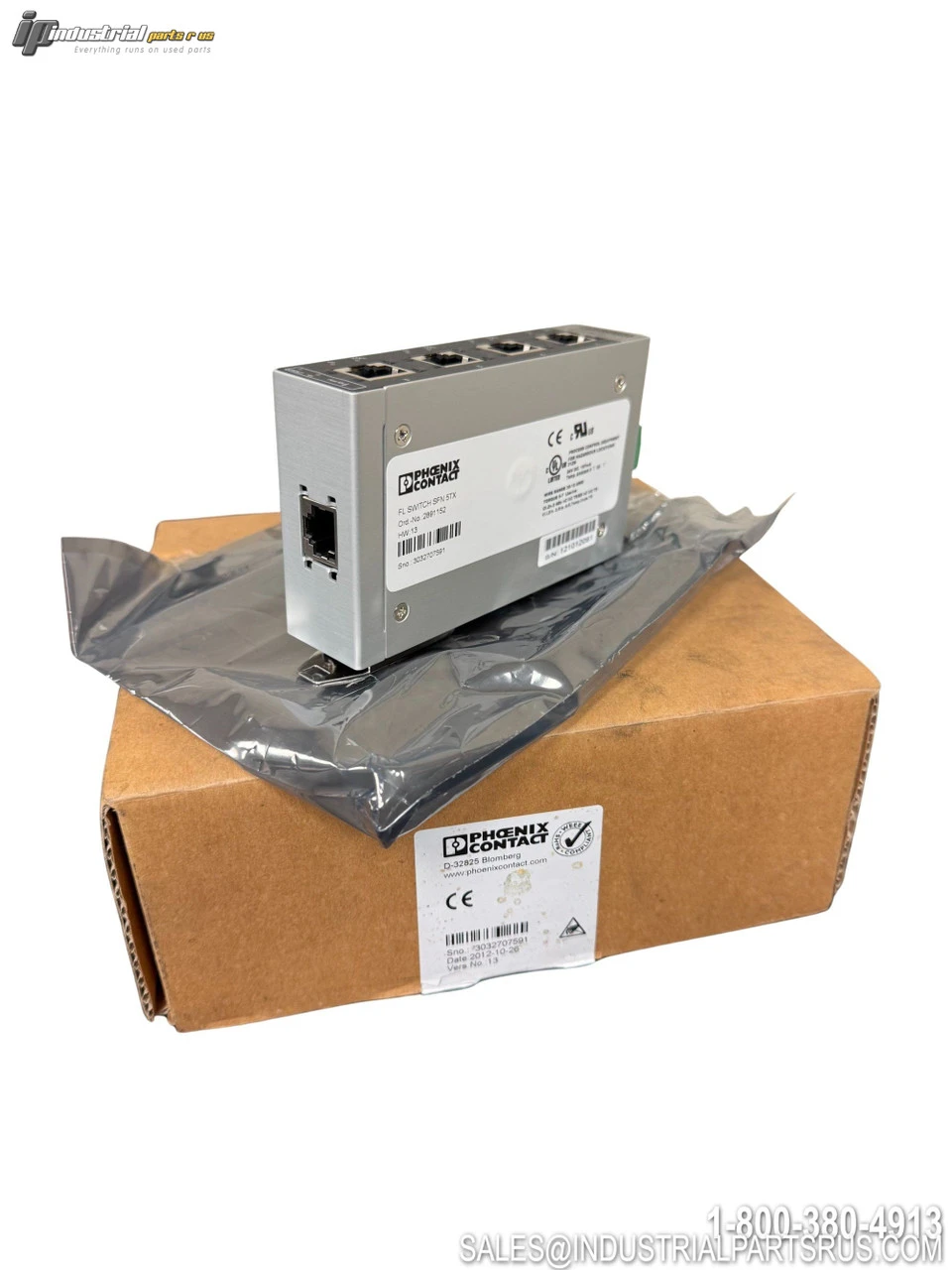

NEW PHOENIX CONTACT 2891152

The Phoenix Contact 2891152 (FL SWITCH SFN 5TX) is a 5-port unmanaged industrial Ethernet switch designed for reliable 10/100 Mbps networking in automation and control environments. It features five RJ45 ports with auto-negotiation and autocrossing for simplified installation, and integrates into 24 VDC industrial power systems via a COMBICON screw-terminal connection. Belonging to the Factoryline SFN series, this compact DIN rail-mounted switch supports Quality of Service (QoS) packet prioritization and local LED diagnostics for network status monitoring. Compliant with IEEE 802.3 communication standards and suitable for digital industrial network architectures.
Specification
Value
Brand
Phoenix Contact
Model / Part Number
2891152
Product Name
FL SWITCH SFN 5TX
Product Type
Industrial Ethernet Switch (Unmanaged)
Series
Factoryline SFN
Number of Ports
5 (RJ45)
Port Type
RJ45 (TP Copper), Screened
Network Speed
10/100 Mbps (Fast Ethernet)
Switch Type
Unmanaged, Store and Forward
Auto Negotiation
Yes (10/100 Mbps, Half/Full Duplex)
Auto Crossing (MDI/MDI-X)
Yes
Supply Voltage (Nominal)
24 VDC
Supply Voltage Range
9 VDC – 32 VDC
Typical Current Consumption
90 mA at 24 VDC
Max Current Consumption
205 mA at 9 VDC
Max Power Dissipation
2.16 W
Residual Ripple
3.6 VPP (within permitted voltage range)
Power Connection
COMBICON Screw Terminal, max 2.5 mm² conductor
Mounting Type
DIN Rail (NS 35), 30 mm width
Housing Material
Aluminum
Enclosure / IP Rating
IP20
Dimensions (W x H x D)
30 mm x 120 mm x 70 mm
Operating Temperature
0°C to +60°C (32°F to 140°F)
QoS (Quality of Service)
Yes — Packet Prioritization
LED Diagnostics
LNK/ACT (Green), 100 Mbps Speed (Yellow), Supply (Green)
Transmission Medium
Copper (Twisted Pair)
Fiber Optic Ports
0
Wire Range
30–12 AWG
Certifications / Approvals
CE, UL Listed (File E140324, E199827), cULus, Class I Div. 2, RoHS
Manufacturer Status
Obsolete / Discontinued
We warranty all items for 30 days from date of purchase.
