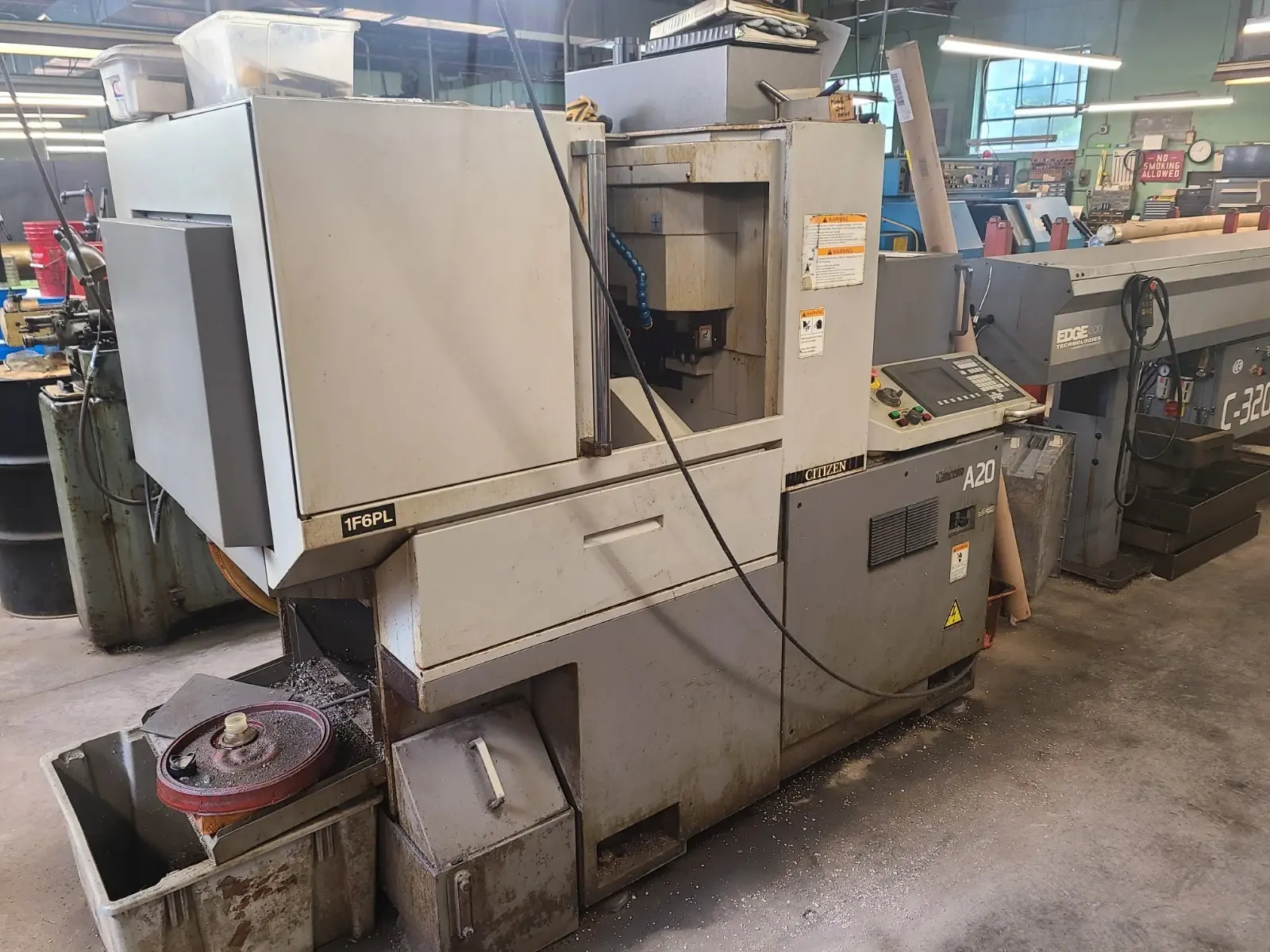

USED 2007 CITIZEN A20
Overview
Used Swiss Type Automatic Screw Machine. Features: 0.79" chuck and turning dia, 6.5" machining length, bar capacity 0.79", one turret, 5 hp, 8,000 RPM. Includes Fanuc 18i-TB control, live tooling, Y-axis milling, sub spindle. 84"x47"x71", 5070 lbs.
Specs
CHUCK SIZE 0.79"
MACHINING LENGTH 6.5"
BAR CAPACITY 0.79"
# OF TURRETS 1
TURNING DIA 0.79"
POWER 5 hp
MAX RPM 8,000 RPM
DIMENSIONS 84 x 47 x 71
WEIGHT 5070
Maximum machining diameter 20 mm (0.787")
Maximum machining length 165 mm (6.50") per chucking
Main spindle speed 8,000 rpm
Back spindle speed 8,000 rpm
Main spindle motor 3.7 kW (about 5 hp)
Gang live tool speed 8,000 rpm maximum
Main spindle drilling / tapping 10 mm / M8
Back machining drilling / tapping 8 mm / M6
Tool positions 17 published for the A20VIPL
Machine weight Approximately 2,300 kg (5,070 lb)
Equipped With
CONTROL Fanuc 18i-TB), C320 Barfeeder Needs Repair, LIVE TOOLING, Y-AXIS MILLING, SUB SPINDLE.
