USED REXROTH 0608701016

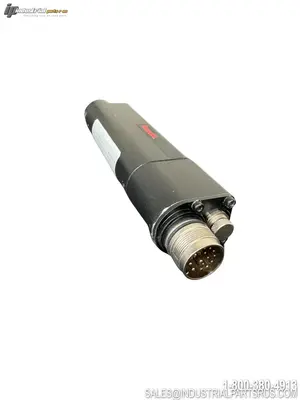

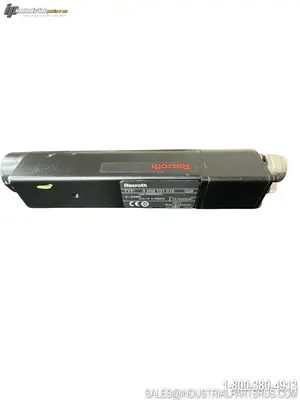

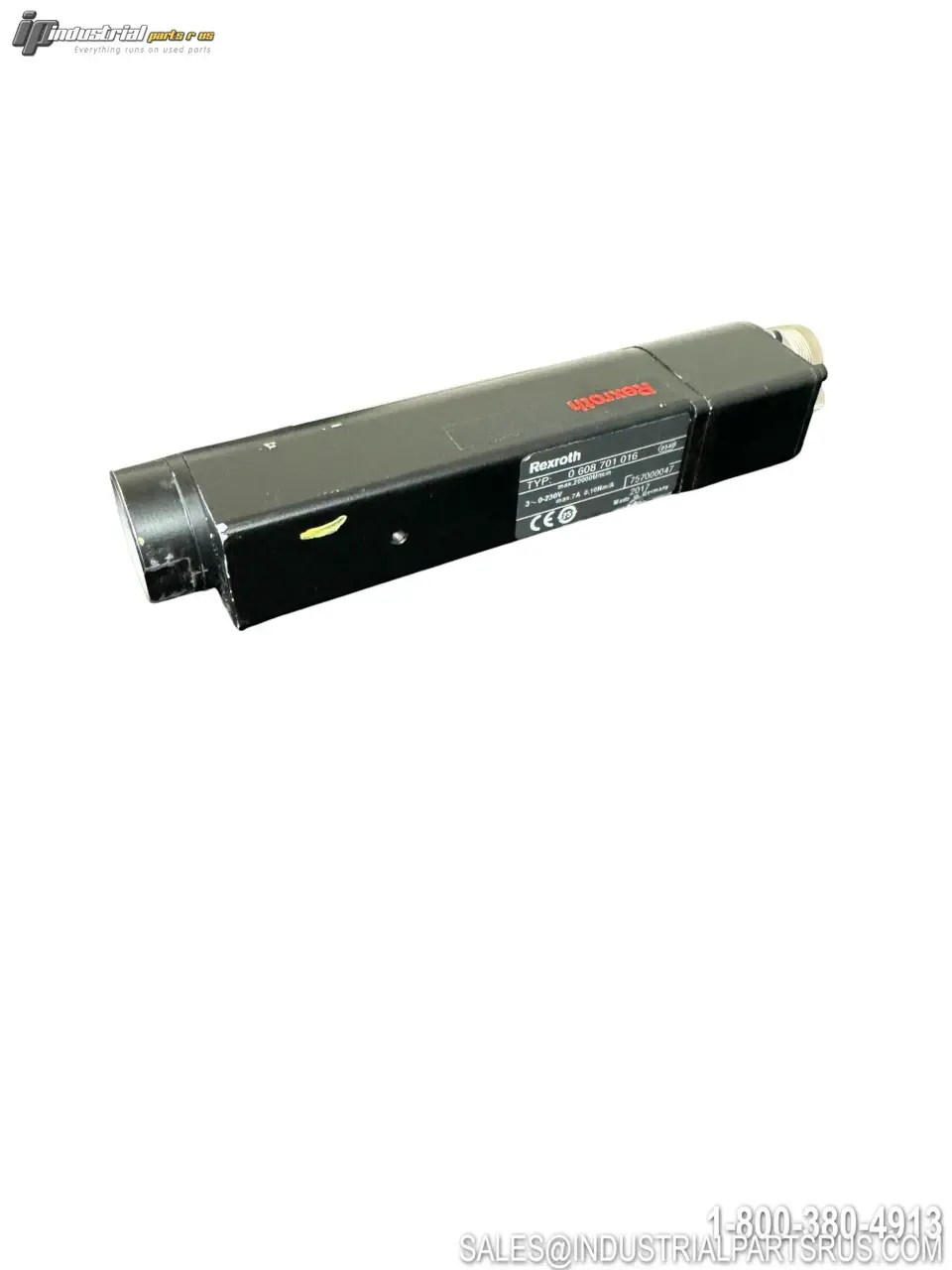

The Bosch Rexroth 0608701016 is an EC302 SZ2 EC (electronically commutated) servo motor from the Rexroth System 300 tightening technology series. It is engineered for use in precision screwdriving and tightening spindle applications, delivering controlled torque up to 0.6 Nm at speeds up to 20,000 RPM. This motor interfaces via a 14-pin connector and operates on a 3-phase variable voltage supply from 0 to 230 VAC, controlled by a compatible Rexroth power module such as the LT303 servo amplifier.
Specification
Value
Brand
Bosch Rexroth

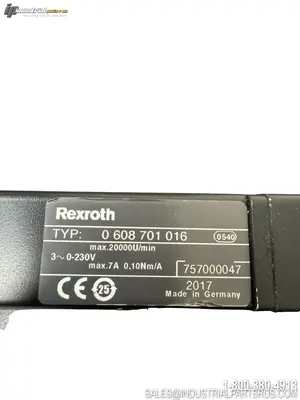

Model / Part Number
0608701016
Type Code
EC302
Size Designation
SZ2 (Size 2)
Series
System 300
Motor Type
EC Motor (Electronically Commutated / Brushless)
Application
Tightening Spindle / Screwdriving
Rated Voltage
3~ 0–230 VAC
Maximum Current
0.7 A
Torque Constant
0.1 Nm/A
Rated Torque
0.6 Nm
Peak / Max Torque
0.7 Nm
Maximum Speed
20,000 RPM
Connection Type
14-Pin
Weight
0.8 kg (approx. 0.85 kg shipped)
Compatible Amplifier
Rexroth LT303 / LT304 Servo Amplifier
Compatible Gearbox
Rexroth 0608720043 (3GE Series Planetary Gearbox)
We warranty all items for 30 days from date of purchase.
