USED FILLER SPECIALTIES INC. AWFS3010L

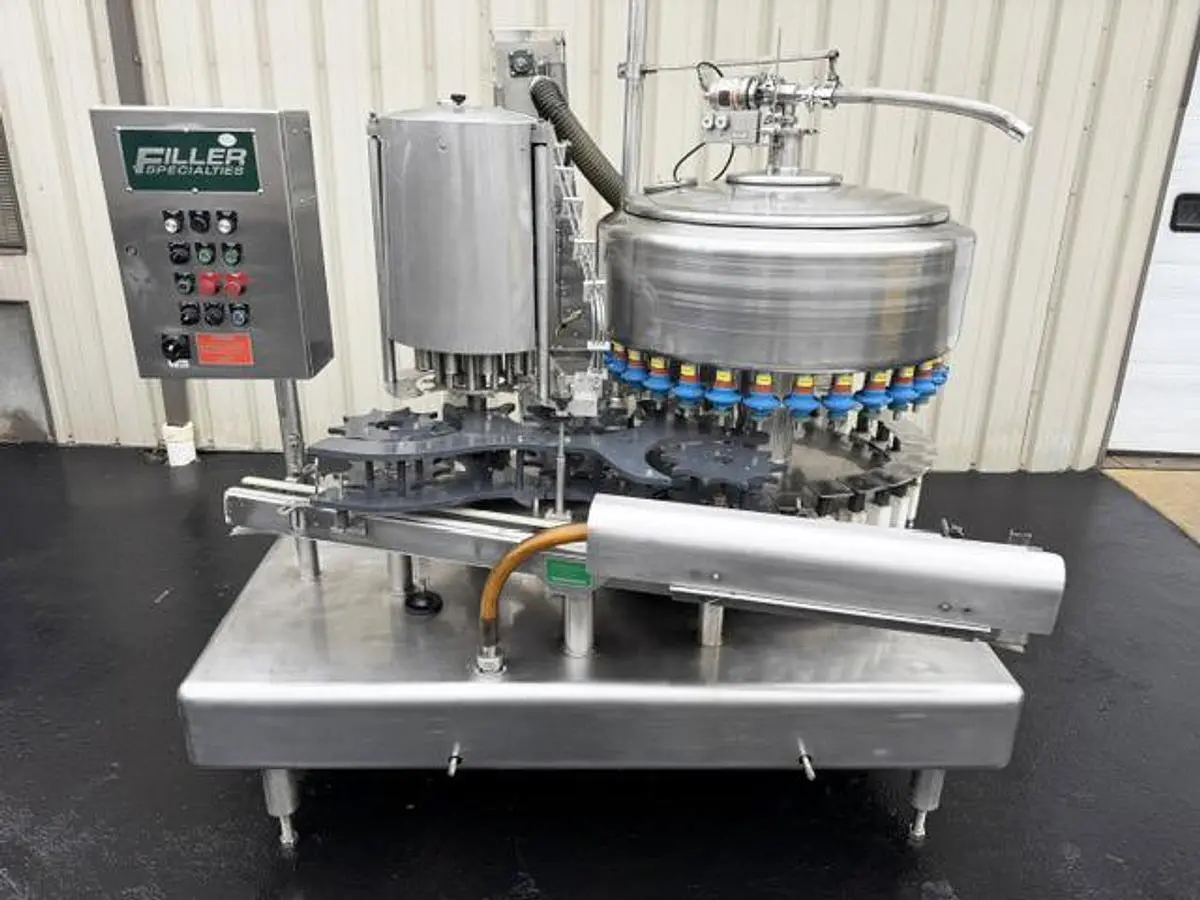

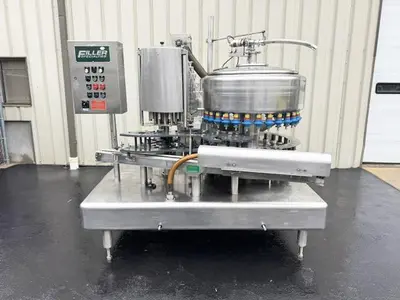

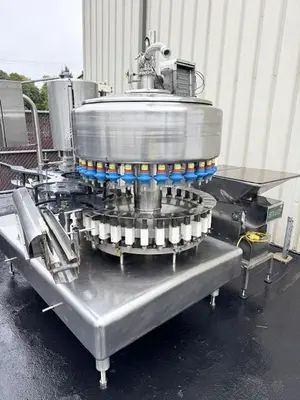

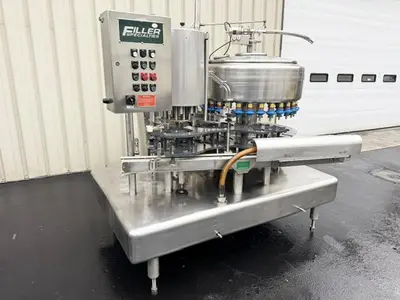

used Filler Specialties 30/10 Mono-Block Bottle Filler-Capper with Waterfall Style Cap Sorter-Feeder

The Filler Specialties 30/10 is an automated stainless-steel rotary monobloc system that combines a 30-valve liquid filler and a 10-head screw capper onto a single compact production unit. Gravity filling systems are fast, accurate, reliable, and affordable with very low annual operating costs.

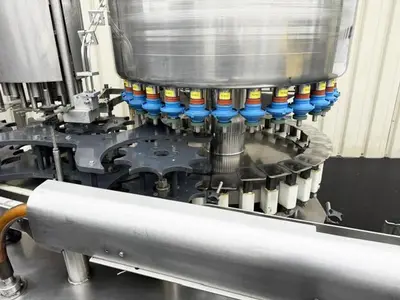

Using the basic principles of gravity, containers fill to a specific level with no electronic controls.  Containers are raised to the filling valves, where they are positively sealed to the valve sleeves. As containers continue their upward travel, the valves open.  Once opened, it vents air in the container to the fill bowl and product flow begins. Once product levels in the container reach the bottom of the valve sleeve, the valve’s air vent is blocked and the product flow stops.  Fill level is simply adjusted by adding or removing spacers from the valve sleeve. Since containers seal with the filling valves during the filling process, it vents any foam generated back to the fill bowl rather than escape out the top of the container.

Details and Specifications:
- Model Number AWFS3010L

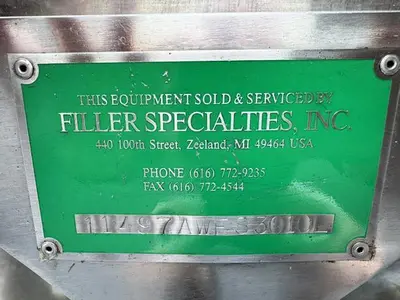

- Serial Number 11497AWFS3010L
- Manufacturer: Filler Specialties Inc., Zeeland Michigan
- Stainless Steel Construction

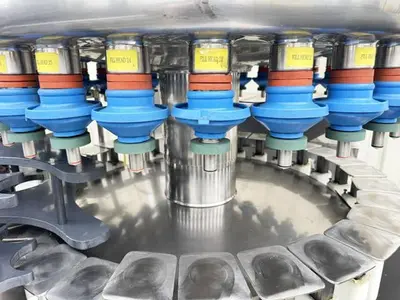

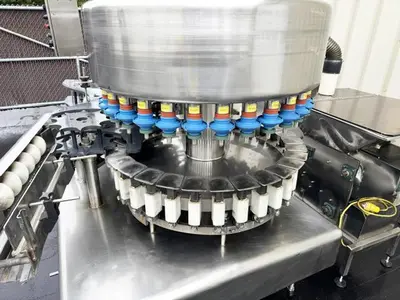

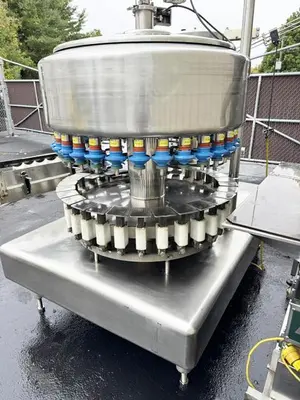

- Gravity Type Rotary Bottle Filler with 30 Filling Valves
- 0.75” Diameter Filling Valve Nozzles
- Filling Valve Pitch 4.25”
- 10-Head Rotary Screw Capper for 28mm Flat Plastic Screw Caps
- Right to Left (Counter-Clockwise) Operation

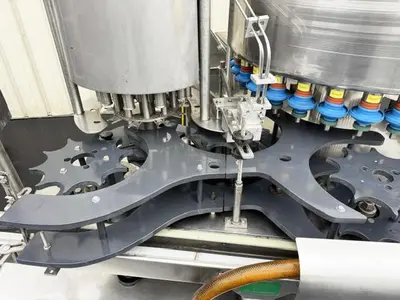

- Timing Screw Bottle Infeed Mechanism
- 84” Long x 4.5” Wide Pull Through Table Top Conveyor Section
- Conveyor Elevation 38” (adjustable)

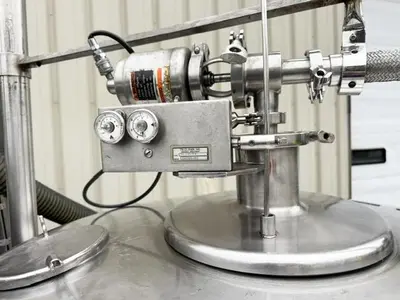

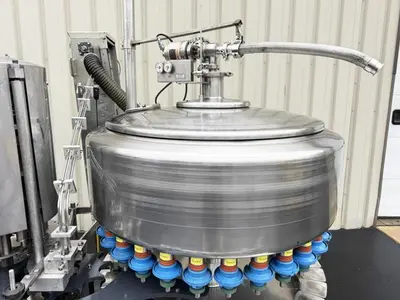

- TriClover Ladish Product Bowl Float Control
- Pneumatic Product Infeed Control Valve
- Includes (2) Existing Bottle Change Over Parts for 16oz/500ml, 1/1.5liter round PET bottles
- Filler Specialties Model FS12ES Waterfall Style Cap Sorter Feeder
- Existing Cap Chute

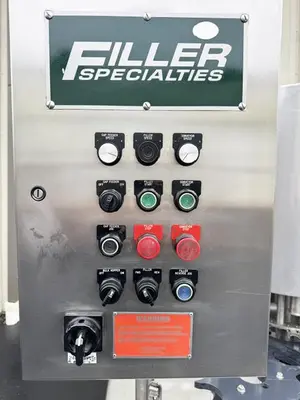

- Operator Control Panel with E-Stop
- Variable Speed Controls
- Threaded Floor Leveler Legs
- Electrical 240 Volt, 3 Ph, 60 Hz,
- 2 HP Filler Drive Motor, 1725 RPM, 208-230/460 Volt, 3 Ph, 60 Hz, 6.5-6.2/3.1 Amp,
- .5 HP Hopper Drive Motor,
- Condition: Used
- Filler Dimensions 92” L x 68” W x 96” H
- Cap Sorter Dimensions 60” L x 32” W x 93” H
