Pneumatic Dual-Station Flip Fixture / Machine Base Table USED
Overview

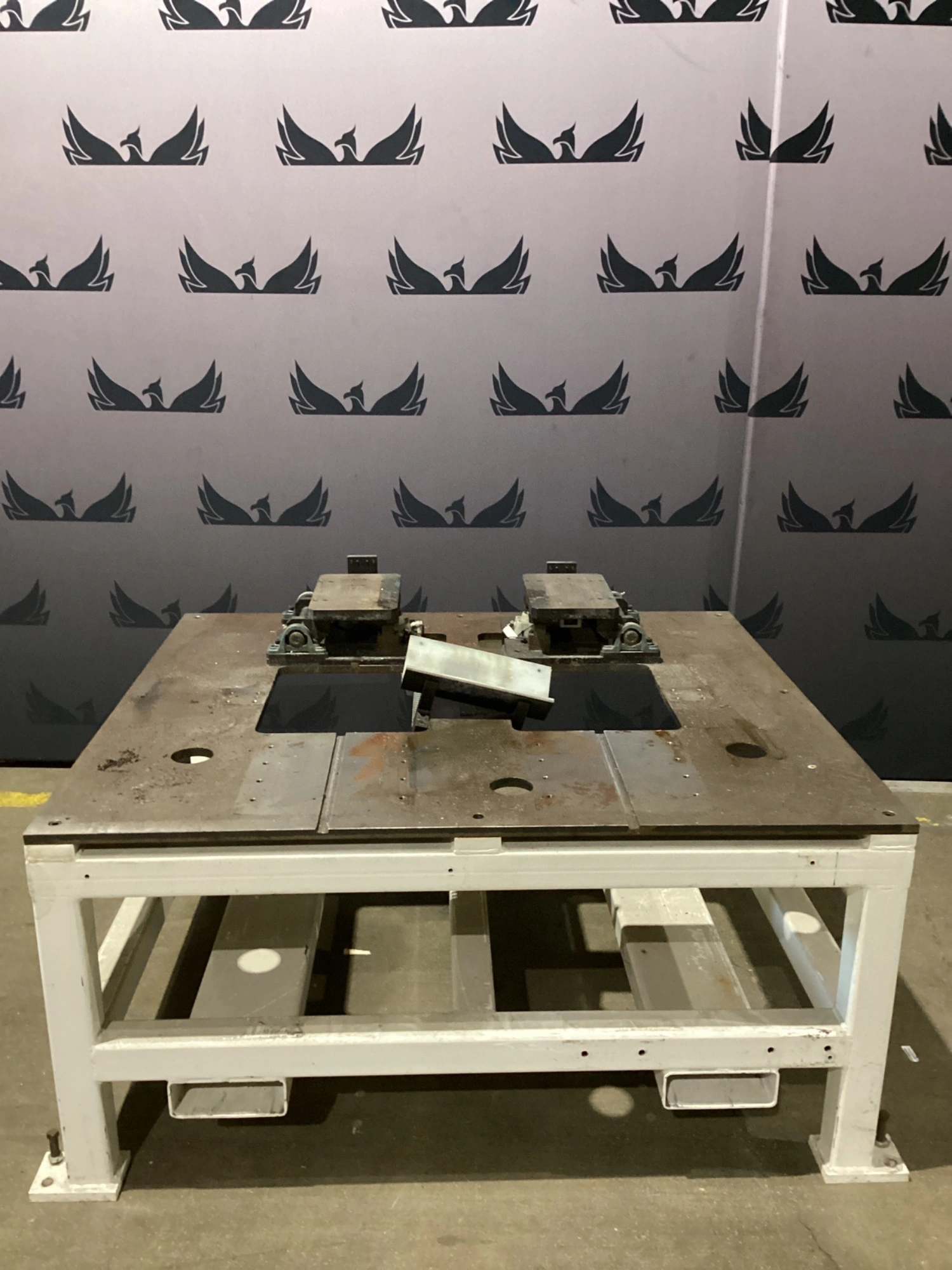

This listing is for a USED pneumatic dual-station flip fixture with fabricated machine base table. Two independently configured pivoting fixture stations provide workpiece positioning and reorientation within production, robotic welding, or automation equipment, with bearing-supported shafts, machined fixture plates, pneumatic hardware, and integrated utility routing.
Specs
IDENTIFICATION
Manufacturer: Not specified
Model / Part Number: Not specified
Product Type: Dual-station flip fixture
Condition: USED
YOM: n/a

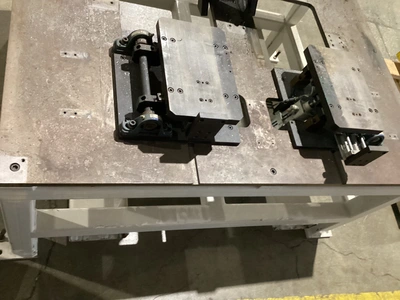

FIXTURE CONFIGURATION
Number of Fixture Stations: 2
Fixture Function: Workpiece positioning / reorientation
Fixture Motion: Pivoting
Fixture Platforms: 2
Platform Construction: Machined metal
Fixture Stations: Independently configured
Mounting Hole Patterns: Present
Specific Workpiece Tooling: Not specified

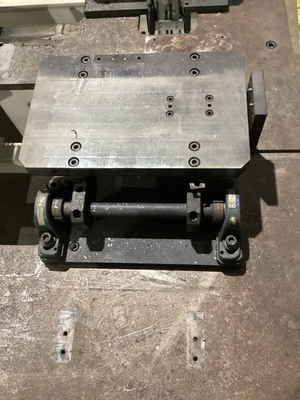

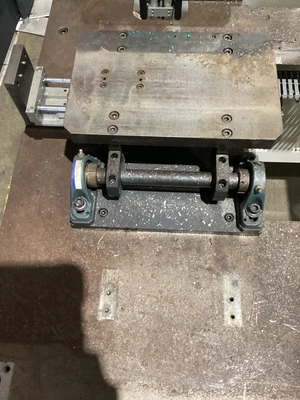

PIVOT SYSTEM
Pivot Shafts: Present
Bearing Supports: Pillow block style
Bearings per Pivot Shaft: 2
Shaft Retention Hardware: Present
Fixture Rotation: Present
Rotation Angle: Not specified
Position Stops: Present
PNEUMATIC SYSTEM
Actuation Type: Pneumatic
Pneumatic Hardware: Present
Pneumatic Connections: Present
Actuation Configuration: Fixture integrated
Operating Pressure: Not specified
Actuator Manufacturer: Not specified
Actuator Model: Not specified
FIXTURE PLATES
Fixture Plate Material: Metal
Fixture Plate Finish: Machined
Tapped / Drilled Holes: Present
Replaceable Tooling: Not specified
Fixture Plate Dimensions: Not specified
UTILITY MANAGEMENT
Cable Carrier: Present
Utility Routing Openings: Present
Through-Table Routing: Present
Field Connections: Present

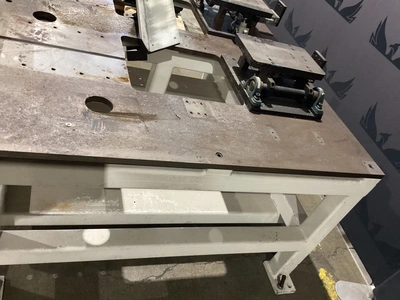

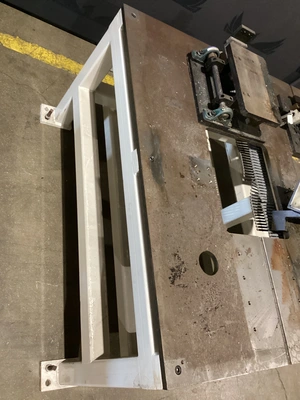

MACHINE BASE
Base Type: Fabricated machine table
Frame Construction: Welded structural steel
Tabletop: Heavy steel plate
Fixture Mounting Surface: Drilled / machined
Floor Mounting Feet: 4
Floor Anchor Provisions: Present
Forklift Pockets: 2
Lower Frame: Open structural design
INSTALLATION
Installation Type: Floor mounted
Station Arrangement: Side-by-side
Machine Integration: Production / automation equipment / robotic welding
Service Access: Open-frame base
