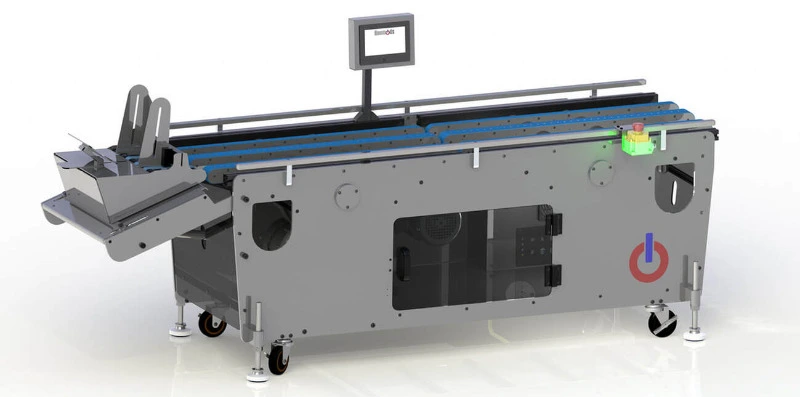

USED 2024 LINEMODS VMC 206

Quality Without Compromise:

Linemods VMC line vacuum transport/finishing conveyors - Quality
without compromise, from the innovative vacuum system to the powder
coated aluminum frames. Perform quick, easy, tool-less setups with
the highest quality deck components available – We have
designed this conveyor line from the ground up to cover the most
demanding of environments. Plow folding, scanning, ink jetting or
placement - Linemods VMC line provides outstanding performance and
operator versatility and will prove to be the most user-friendly
conveyor available today. ​

Design:

Tool-less design – No tools needed to perform most
set-ups/changeovers

Vacuum belt construction is of a friction resistant backer with
a 55D rubber cover, perforated for vacuum integration – The
slippery backer provides an extremely low coefficient of friction
(belt to fixed surface)

Each segment of transport is vacuum regulated (2 segments
per tube). This vacuum system is engineered for consistent; even
pull-down - “loaded” or “open deck” –
STALL RESISTANT AND POWERFUL

Component design – All pivot points have bushings -
expense not a factor in assembly – all components designed to
last

2-year warranty – We are confident with our
parts/equipment designs and back new equipment

Vacuum System Engineered for Application:

Self-modulating

Quiet

Powerful

Stall-resistant

Efficient

Expandable

Two tube widths available to handle most any job (1” and
2”) - Design promotes quick removal if desired or easy
adjustment – Belts can be changed in minutes. Vacuum tubes
are split into two chambers – this ensures constant vacuum
where you need it the most.

Skewable (stream separation and side register)

Built in side guides (quick register – full length)

Adjustable (built in scales to streamline set-ups)

Removable (without tools in minutes)

Custom belts/transports available​ 3’ and 5’
lengths (standard builds)

Attributes:

Advanced technology vacuum system

AC Vector Drive

Bi-directional

3/8” Powder coated aluminum frames

Clutched handwheel

Adjustable height (6”)

Rubber coated vacuum conveyor belts

Interchangeable 1” & 2” drives

Split vacuum chambers

Tool-less adjustments

Cantilevered infeed and discharge

Adjustment scales

Integrated encoder mount

I/O: Start, Stop, Feed and Speed

Product Capacity:

Width: Min. Width: 1-20+” / Max. Width: 21”

​Product thickness range: .05mm - 13mm

​VMC Configuration: (3'x3’)

Max Speed: 450’- 600’ minute

Gross weight: 525 lbs

Electrical: 200-240v 1 Ph / 30amps ​
