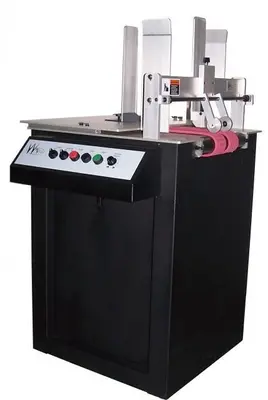

USED 2017 WALCO SYSTEMS VF200 VF400
Overview
VF200
VF400
See the VF200 in
action!
The
VF200 offers a radically innovative design not available anywhere
else.
Every
part in this feeder - from the precision machined guides,
to the sealed shaft locking collar bearings - was designed to
take an outstanding amount of abuse. Over 50 inches of two (2)
2-1/2 inch wide belts offer an astonishing amount of
friction. Add vacuum to the equation and you have a machine
capable of pulling any product.
Like all
Walco Systems products, the Evolution series feeders
are designed for the high capacity use demanded by today's
commercial environment.
Employing
every concept that makes up the VF200, the VF400 ups the ante and
allows for wider pieces to be fed. Designed primarily for
cardboard, this machine allows products to contact 180 square
inches of natural gum rubber belting.
Specifications
VF200
Material
Specs
Size: Min. 3"W x 5"L - Max 19.5"W x 28"L
Material Thickness: 1" Max (In
Standard Configuration)
Electrical: 110 VAC 1-Phase 10 Amp
Circuit
Interlock: Dry Contact (Low Volt)
Standard
Operator Controls: Power (on/off),
Vacuum (on/off), Stop, Jog, Start, Feed Speed
Physical: 24"L x 23.5"W x 33-36"
H
Specifications
VF400
Material
Size: Min. 3"W x 5"L - Max 41"W x 28"L
Material Thickness: 1" Max (In
Standard Configuration)
Electrical: 110 VAC 1-Phase 5
Amp Circuit
Interlock: Dry Contact (Low Volt)
Standard
Operator Controls: Power (on/off),
Vacuum (on/off), Stop, Jog, Start, Feed Speed
Physical: 24"L x 50.5"W x 33-36" H
Additional Information
Watch
VF200 in Action (#1)
Watch
VF200 in Action (#2)
Watch
VF400 in Action
Download Brochure
Features
Quick
and Easy Setup
Variable
Speed Transport
Adjustable
Infeed Product Guides
Ergonomic
Operator Panel
Feeds
Wide Variety of Products
High
Capacity Feed Hopper
Independently
Controlled Self-Contained Vacuum
Non-Proprietary
Components
Uncompromising
Drivetrain
High
Torque Gear Drive Motor
Steel
Drive Pulleys
12" Wide
Steel Rollers
Large
Diameter Steel Shafts
Sealed
Shaft Locking Collar Bearings
Feeds
Bags
Envelopes
Heavy
Card Stocks
Corrugated
Cardboard
Jewel
Cases
Perfect
Bound Books
Calendars
Sheet
Stocks
Options
Speed
Following
Allows
Walco Systems feeders & transports to maintain
matching belt speeds, using one speed control.
Demand
Feed
Allows
Walco Systems feeders to feed one piece on a demand
signal.
Which
Walco Systems VF Feeder is the right one for me?
