USED 2024 LINEMODS RSC 2012
Overview

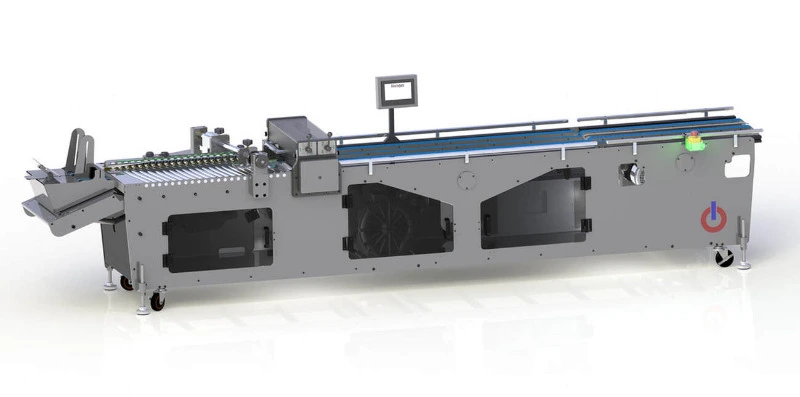

Linemods RSC 2012 Register /
Creasing Conveyors
Linemods equipment is designed with a balance of easy
operation, longevity and innovation from over 25 years of
experience in the post press/production environment – All
equipment equipped with a 2-year built-in warranty.
Specs
Quality Without Compromise:
Register / Creasing / Perforating / Slitting / Tipping / Folding
Conveyor Vacuum Transport Base – Provides means for
precision registration, creasing, slitting and perforation -
whether in-line or at a 90 – Quality without compromise
– Dual shaft creasing module provides versatility.
VMC section(s) perform plow folding, product tipping, flipper
plate and other processes with easy intuitive set-up. – Our
conveyors use the latest technology in vacuum modulation –
the most effective systems available today.
Effectively crease and fold 20# bond to heavy cover stock in C,
Z, single/double gate & pocket folders.
Attributes:
Virtually all tool-less adjustments
Easy set-ups/maintenance
3/8” Powder coated aluminum frames
Automatic vacuum modulation
Side register with micro side and skew adjustment
Tractor drive infeed
Urethane nip wheels w/ball bearings
Ultra precise creasing/slitter module
VMC vacuum transport system
Ultra-smooth VFD vector-based speed following drive system
I/O: Start, Stop, Feed and Speed (Master of Slave)
Optional Components:
Feeder/rack
Transfer module
Scanners and cameras
Doubles detection
Plows
Tipper plate
Up/Down QC diverters
Rota-Flip
Product Capacity:
Width: Min. Width: 2-20.5” (Optional up to 40")
Length: 5"-24” (Direction of Travel)
Product thickness range: .05mm - 13mm
VMC Configuration: (5'x3')
Max Speed: 450’ minute
Gross weight: 1050 lbs
Electrical: 200-240v 1 Ph / 50amp
Units can
be customized for your application - Right to left option also
available
Accessories:
