NEW STREAMFEEDER CONVERGE C-900 AND C-1200 TIP-ON FEEDERS

Overview:

The Converge Series Tip-on Feeders are designed to
be a modular, high-speed accurate placing feeder. Precision
placement of products onto carrier targets is performed
consistently and accurately at high speed. The modular design
allows Converge feeders to be easily integrated to existing
equipment such as folder/gluers, vacuum bases, conveyors, or
configured as part of a turn-key attaching system.

Feed a wide variety of flat and multi-thickness
products including cards,coupon, and more up to 24,000 pieces per
hour (business card).

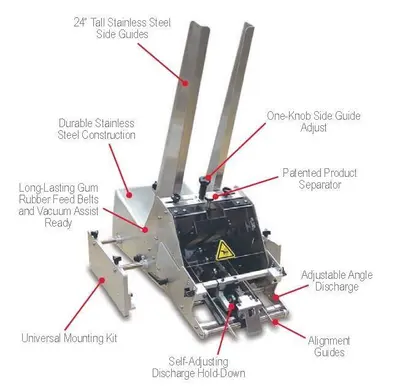

Standard
Features:

Long lasting natural gum rubber feed belt with
vacuum assist ready.

●
One-knob side guide
adjust ●
Adjustable discharge
angle ●
Servo
motor/controller
●
Encoder
●
Pushbutton operator
interface ●
Universal
mount for most
bases ●
Stainless steel
construction ●
High
performance product
sensor ●
System I/O
interface ●
Variable adjust
placement position ●
Discharge guides to
ensure side-to-side registration ●
No-adjust
hold-down.

Applications:
(ask us about
your application)

Mailing Systems / Flighted Infeeds /
Conveyors / Vacuum Transports / Folders/Gluers /Box
Packaging.

Products:    (ask us about
your products)

Plastic Cards / Collapsed Cartons / Folded
Documents / Manuals / Coupons / Magnets /Cardstock / Envelopes
Booklets / Backer Board / Business Cards and more.
