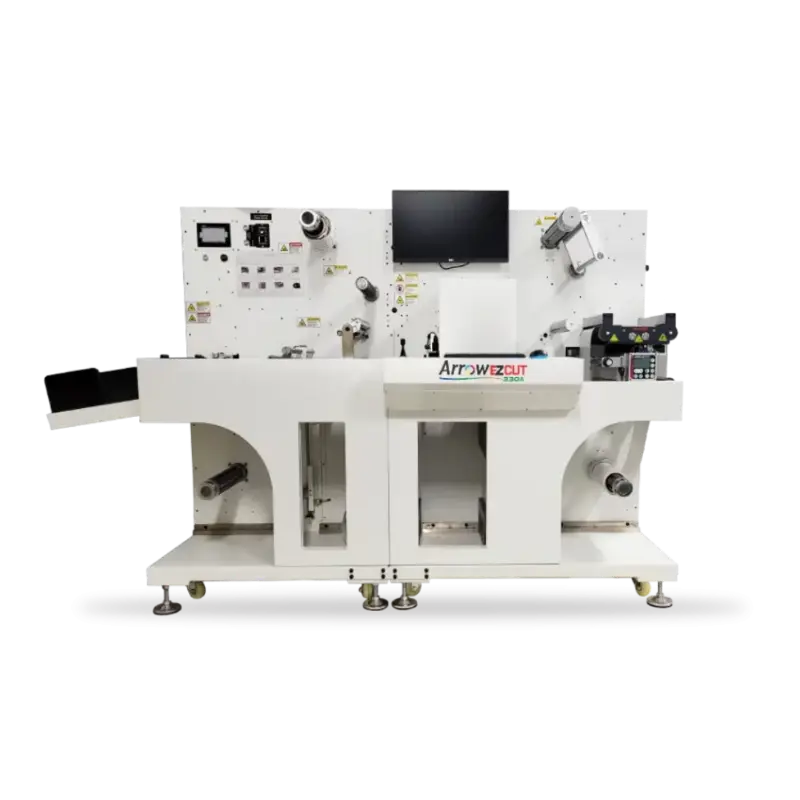

NEW ARROWJET EZCUT 330A
Overview
Roll-to-Roll or Roll-to-Sheet Label Cutter
The Arrow EZCut 330A is the world's first
roll-to-roll and roll-to-sheet digital blade
finishing system! It allows customers to digitally die-cut label
stock and convert it either roll to roll, or roll to sheet with an
inline sheeting unit.
The high speed cutting head is designed to run at speeds up to
9m’/min, and it can be equipped with up to 4 cutting heads at
once!
Max. Media diameter 450mm
Specs
Cutting label size: Max. 330mm x 600mm
4 cutting heads
9m/min cutting speed
Cutting accuracy: 0.05mm
Web guide: BST (made in Germany)
Slitter: 4 (Max. 15), ring blade type
Code scanner: CCD camera
Dimensions (WxLxH): 119.5cm x 200cm x 157.5cm
1200 kgs
100-240V AC, 2000W
Built-in sheeter, lamination backliner rewinder, 2nd(Up)
rewinder
Smartest Blade Finisher on the
Market
The Arrow EZCut 330A is also the first blade cutter designed
with the end user in mind. It features an intuitive software which
is easy to learn, as well as an inline barcode reader for automatic
job changes.
In addition to lamination, slitting, and waste removal, the
Arrow EZCut 330A also features an automated web guide to ensure
your product is running smooth through the machine at all
times.
The Arrow EZCut 330A is perfect for short to medium length print
finishing, and even more enticing is the ability to automatically
sheet to size without any additional equipment. You can use the
sheeting system inline with cutting, or as an offline solution to
cut roll products to any length needed!
• All-In-One solution
Lamination, Rewinder for the Lamination Backing, matrix removal,
slitting,
trimming, sheeting
• Artificial Intelligence applied
CCD camera recognizes barcode to select job automatically Distance
between heads can be adjusted automatically by job data
• Trajectory Optimization
It automatically calculates optimal usage of heads in each step of
cutting for a specific job
• 9m/min cutting speed
• Max. 350mm x 600mm size label
cutting
• Embedded PC with big LCD touch
screen
