NEW CAPITAL MAILING EQUIPMENT IM2 -IM4 UV

UV Curable Print Solution

Mailing- Printing - Bindery
- Packaging - Web -Newspaper

Addressing - Marking -
Coding - Barcode - Labels - Polybags and
More!

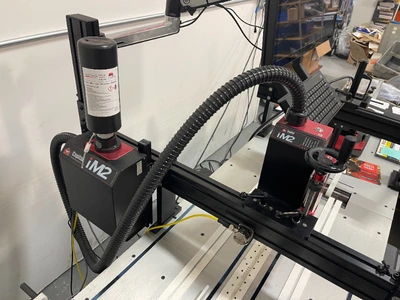

The high resolution iM2 and iM4 printers provides a versatile,
cost-effective solution to meet the need for variable data printing
on a range of coated and uncoated substrates. Capable of printing
addresses, barcodes, 2D codes, QR codes, numbering, logos and
graphics, the iM2 or the iM4 are suitable for mailing, packaging
and addressing applications, as well as labels, tickets, security, plastic cards, and business
form applications.

The very small footprint and modular design of the iM2 or iM4
means that it is easily and quickly integrated into mailing lines,
webs and card lines. With all the printer electronics and ink
delivery systems built into the printhead assembly, it is designed
for maximum uptime.

UV Curable Print Solution

Now you can print on those difficult substrates with a UV ink
curable system. With a UV Inkjet system, you will be able
to print on items such as un-coated and coated postcards, High
gloss stocks, credit cards, poly bag, and more. (Send us your samples for
testing)

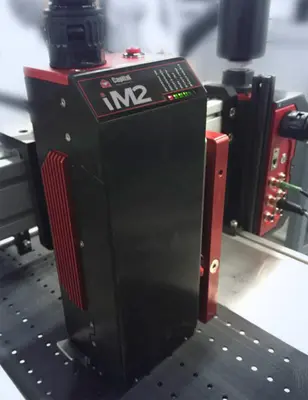

The high-resolution CME iM2 printer provides a versatile,
cost-effective solution to meet the need for variable data printing
on a range of coated and uncoated substrates. Capable of printing
addresses, barcodes, 2D codes, QR codes, numbering, logos and
graphics, the CME iM2 is suitable for mailing and addressing
applications, as well as labels, tickets, security, plastic cards
and business form applications. The very small footprint and
modular design of the CME iM2 means that it is easily and quickly
integrated into mailing lines, webs and card lines. With all the
printer electronics and ink delivery systems built into the
printhead assembly, it is designed for maximum uptime.

Compact Size

One of the key design mandates for the CME iM2 was a small
footprint. Not only is the printhead compact, so is the interface
enclosure. For the first time, trying to find space on your
equipment for bulky ink handling systems and print heads is no
longer a concern. Whatever available space you have, the CME iM2
can fit!

Groundbreaking Design

Simplicity is the key to the CME iM2 design. From the patented
ink delivery system to the electronics, housing and interface
connectors, the CME iM2 has been designed with ease of use in
mind.

The CME iM2 uses a single pump and sensor to measure the ink
pressure and to pump the ink directly from the supply to the print
head as ink is being consumed while printing. Since there is no air
reservoir for meniscus control there are no issues with ink flow,
or flooding air sensors or valves (there are none).

With the head mounted directly to the manifold, the design
greatly reduces the number of connections, tubes and failure points
where leaks can occur.

The CME iM2 incorporates an integrated manifold heater that can
preheat the ink before it reaches the head allowing the ink to flow
better and operate much more reliably at higher speeds, resulting
in less nozzle outs.

The head can be changed in the field without disassembling the
ink delivery system and or any of the ink delivery connections. The
system can be installed, primed, and operational in less than 1
hour.

Software that Delivers

The iM2 has multiple capabilities regarding software. It ships
with a standard GUI based upon the proven Inc.Jet software, or
alternatively, it can be supplied with a set of tools to enable
custom software development.

With the standard GUI, you can be up and running within minutes
from design of the basic job template to hitting the Start button
and being in production! Bring in databases and easily build a
template that fully utilizes the power of dynamic text, bitmaps,
counters and so much more. Insert Lot codes, expiry dates and any
of over 100 different barcodes.

There are tens of thousands of solid high performing
installations of this software installed globally, so there is
never a fear of poorly developed software that doesn't have the
flexibility and power you need. Proven repeatedly to perform.

The software is a proven enterprise level solution that will
help you monitor, manage and maximize your print stream. And what's
more, its completely free with eternal updates!

Applications

Postcards

Mail

Packaging

Bindery

Newsprint

Plastic Cards

Folders

Labels

Tickets

Tags

Inserters

Stitchers

Poly Bags

and more!
