USED LABCONCO 2247300

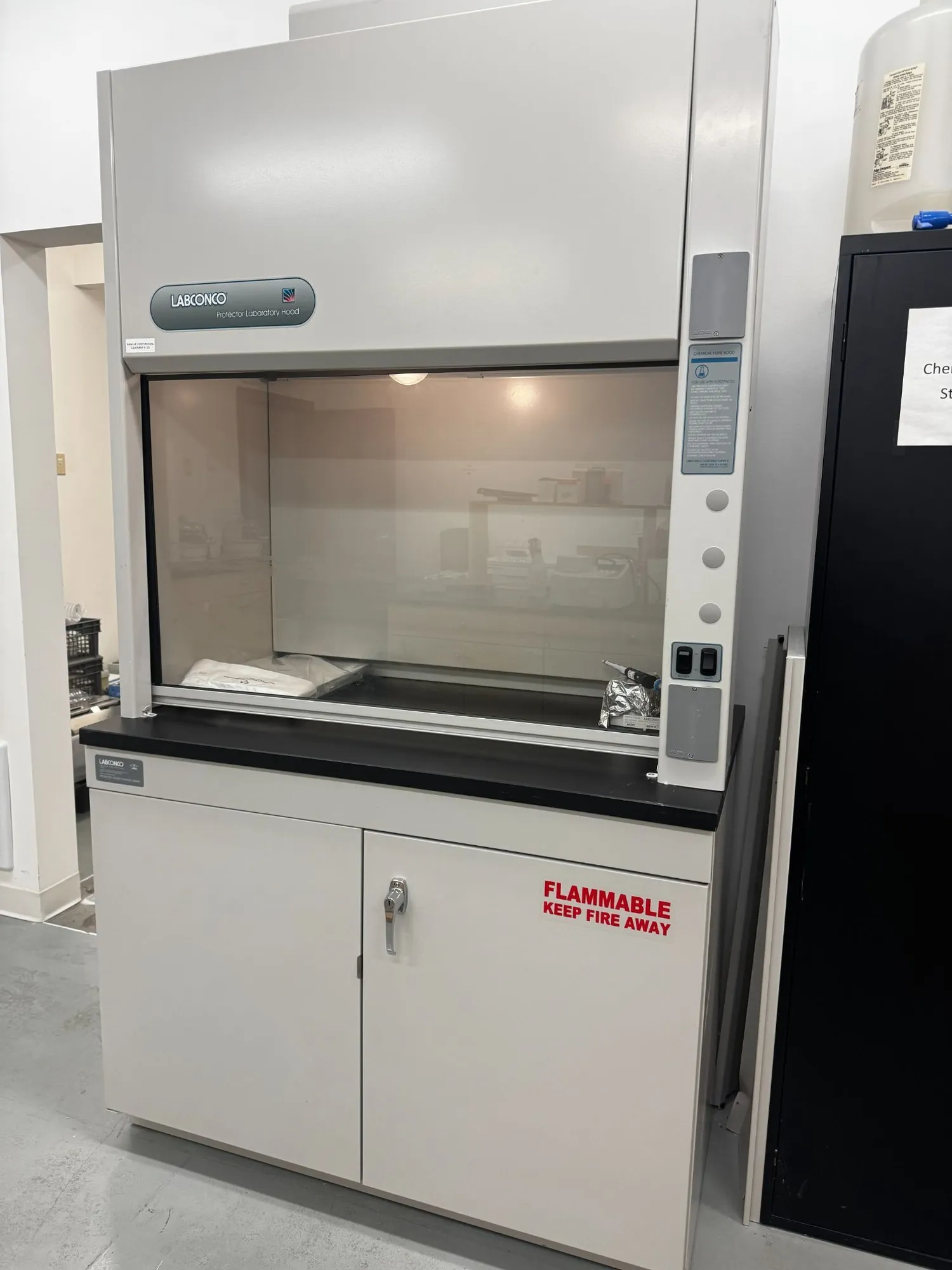

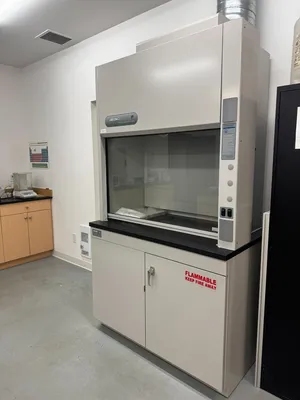

Labconco Basic 47 laboratory fume hood designed for general-purpose laboratory work and light-duty chemical handling. The hood features a bypass airflow design, vertical-rising tempered safety glass sash, adjustable baffle, curved air foil, epoxy-coated steel construction, vapor-proof lighting, and an integral blower. The 4-foot hood provides approximately 720 CFM airflow at 100 feet per minute face velocity and is suitable for laboratories, educational facilities, and general chemical applications.

Specifications
Type: General Purpose Laboratory Fume Hood

Manufacturer: Labconco

Model: 2247300

Series: Basic 47

Nominal Width: 47 in. (4 ft.)

Overall Dimensions: 47 W × 25 D × 53 H in.

Overall Dimensions: 119.4 W × 63.5 D × 134.6 H cm

Interior Width: Approximately 43.2 in.

Sash Opening Width: 41.25 in.

Sash Opening Height: 26 in.

Viewing Height: 27.1 in.

Exhaust Duct Connection: 10.3 in. outside diameter

Airflow: 720 CFM at 100 FPM

Face Velocity: 100 FPM (50.8 cm/s)

Airflow Design: Bypass

Blower: Integral

Blower Motor: 1/3 HP

Electrical: 115 V, 60 Hz

Current: Approximately 6.8 A

Lighting: Vapor-proof incandescent

Sash: Vertical-rising, tempered safety glass

Construction: Epoxy-coated 16-gauge steel

Interior/Exterior Color: Glacier white

Approx. Shipping Weight: 370 lb. (168 kg)
