USED 2019 ROLL-IN EF1459
Overview

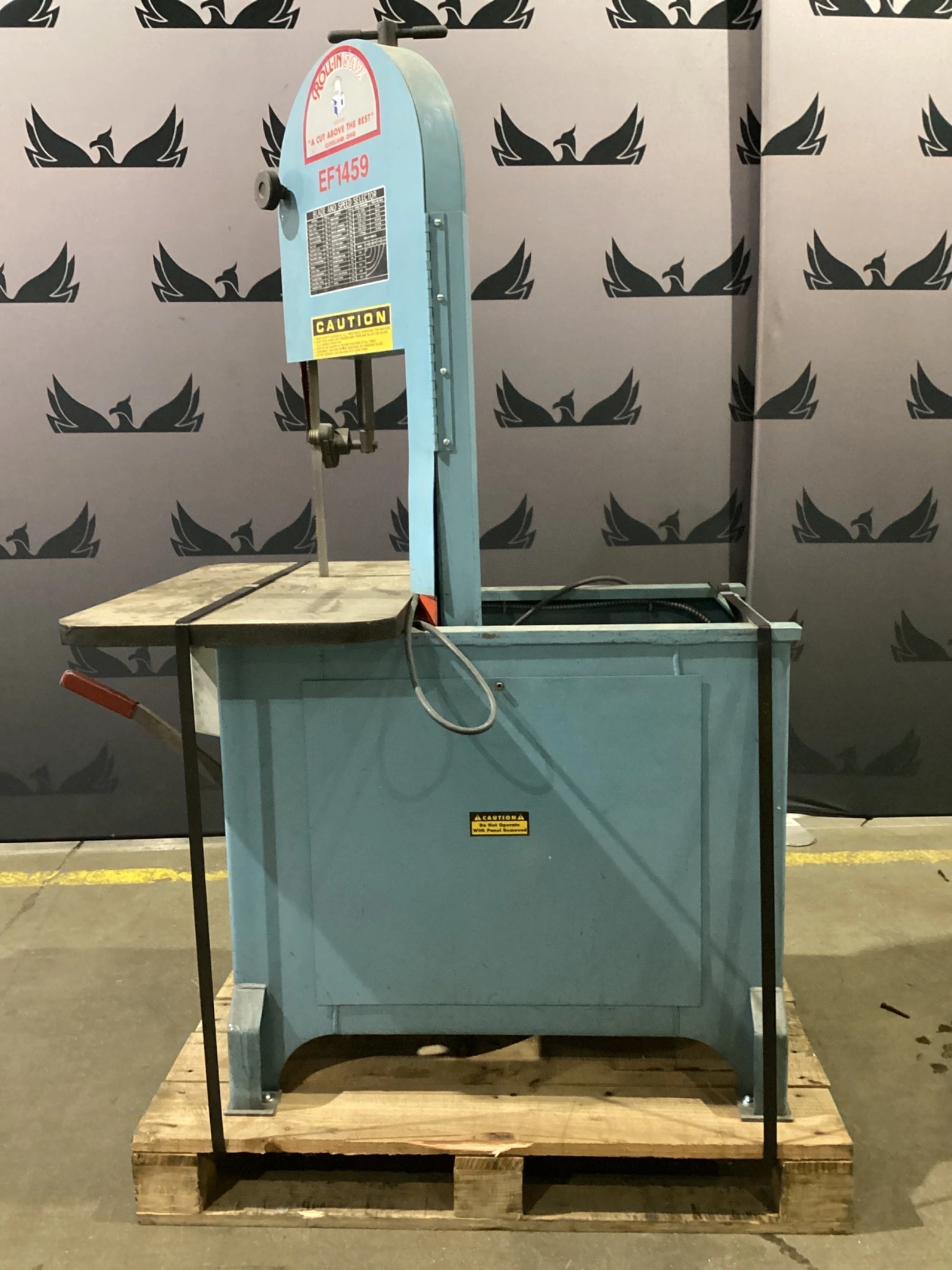

This listing is for a USED Roll-In Saw EF1459 vertical bandsaw. The machine provides a stationary worktable and vertically oriented blade for contour cutting, straight cutting, and general-purpose material processing, with selectable blade and cutting-speed configurations and 110 V single-phase electrical service.
Specs
IDENTIFICATION
Manufacturer: Roll-In Saw
Model: EF1459
Product Type: Vertical bandsaw
Serial Number: 18142EF
Condition: USED
YOM: 2019-03-14
CUTTING CONFIGURATION
Feed System: Gravity feed
Blade Travel Into Work: 9 in
Miter Cut Angle Range: 0° to 45°
Bevel Cut Angle Range: N/A
Capacity Under Guides: 14-1/2 in
Throat: 8-3/4 in
CUTTING CAPACITY AT 90°
Round Capacity: 8.5 in
Rectangular Capacity: 14.5 x 8.5 in
BLADE
Supplied Blade Type: Bi-metal
Supplied Blade Width: 3/4 in
Supplied Blade Thickness: 0.035 in
Accepted Blade Widths: 1/4, 3/8, 1/2, 5/8, 3/4 in
Blade Tension Adjustment: Present
Upper Blade Guide: Adjustable
BLADE SPEEDS
Speed 1: 70 fpm
Speed 2: 140 fpm
Speed 3: 270 fpm
Speed 4: 525 fpm

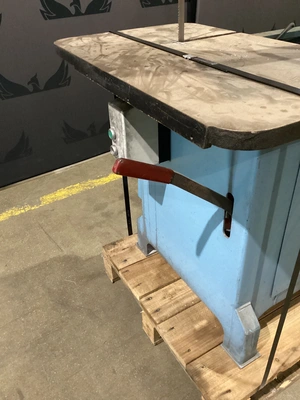

WORKTABLE
Table Construction: Precision-ground cast iron
Table Dimensions: 18-1/2 x 30 in
Table Height: 30 in from floor
Table Height Basis: Without casters
MOTOR / ELECTRICAL
Installed Supply Voltage: 110 VAC
Installed Phase: Single phase
OEM Motor Power: 1 HP
Single-Phase Voltage: 110 / 220 VAC
Single-Phase Frequency: 60 Hz
Three-Phase Motor Option: 1 HP
Three-Phase Voltage Option: 220 / 440 VAC
Three-Phase Frequency: 60 Hz
BLADE PREPARATION
Blade Welder: Present
Blade Grinder: Present
Blade Preparation Equipment: Integrated
CONSTRUCTION / INSTALLATION
Machine Configuration: Floor standing
Upper Wheel Enclosure: Present
Lower Wheel Enclosure: Present
Machine Base: Integrated

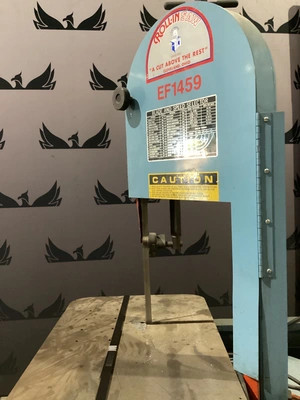

Blade / Speed Selector Chart: Present
