New | in-Stock

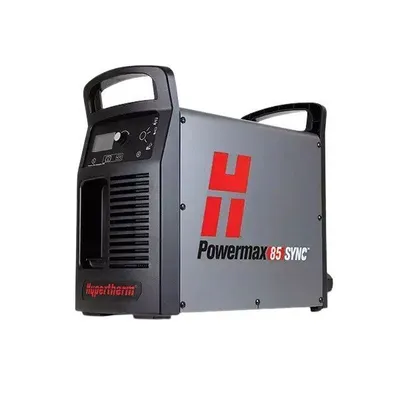

NEW LONE STAR Powermax85 Sync

Florida, United States
3,928Listings|10Followers
Overview
Specs
Input Voltage
200–480 V, 1-PH, 50/60 Hz | 200–600 V, 3-PH, 50/60 Hz
Kilowatt Output
12.2 kW
Input Current
200/208/240/480, 1-PH 70/68/58/29 A @ 12.2 kW
Output Current
25-85 A
Rated Output Voltage
143 VDC
Open Circuit Voltage (OCV)
305 VDC
Dimensions with Handles
483 mm D; 233 mm W; 430 mm H (19" D; 9.2" W; 17" H)
Weight w/7.6 m (25') torch
32 kg (67 lbs.)
Gas Supply
Clean, dry, oil-free air or nitrogen
Optimum Inlet Gas Pressure
7.6–8.3 bar (110–120 psi)
Minimum Inlet Gas Pressure
5.2 bar (75 psi)
Input Power Cable Length
3 m (10')
Power Supply Type
Inverter - IGBT
Engine Drive Requirement
20 kW for a full 85 A output
Certifications
CSA-Certified for use in the Americas and Asia, except China

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Power Supply
WARRANTY: 1 YEAR – Torches

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
