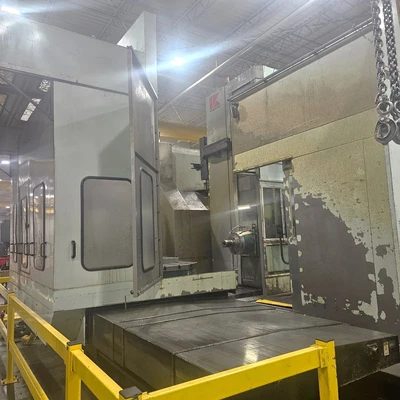

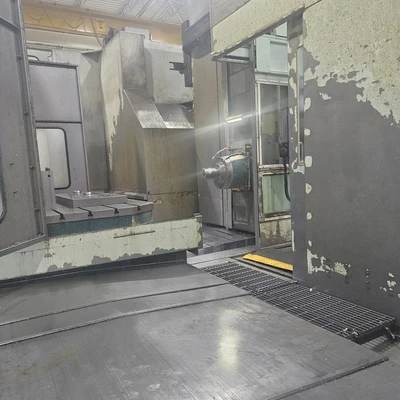

USED 2003 KURAKI KBM-13E.A CNC TABLE TYPE HORIZONTAL BORING MILL

Full 4th Axis B-Axis Rotary Table - .001 Degree

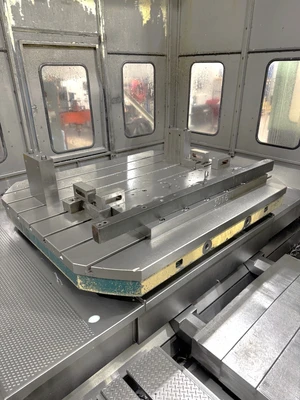

T-Slotted 70.87" x 86.61" Rotary Table

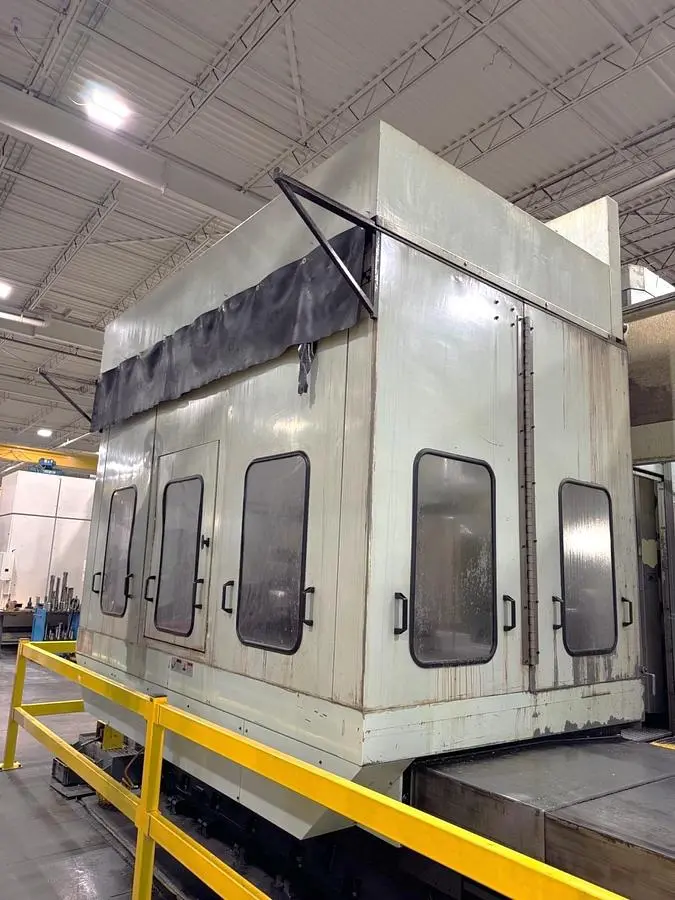

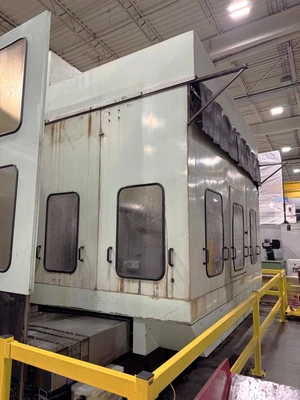

Full Coolant Splash and Chip Guard Enclosure
60 Station Tool Changer
1000 PSI Chip Blaster High Pressure Coolant Through the Spindle
Chip Conveyor
Hand Held Remote Jog Handle
Variable 3 Speed
Steel Way Covers
Scale Feedback on all Axis'

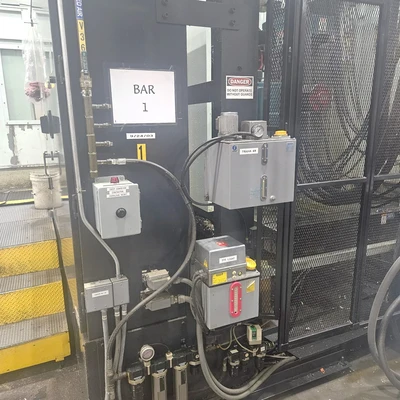

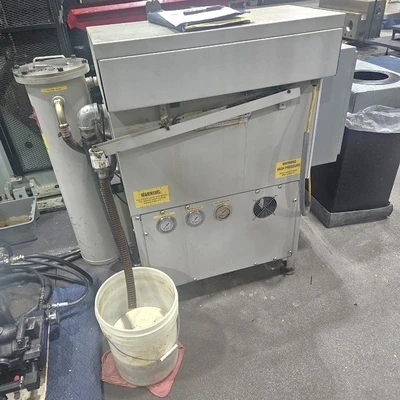

Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface

**Can be inspected under power in plant**

**Cutting Hours Approximately 30,000**

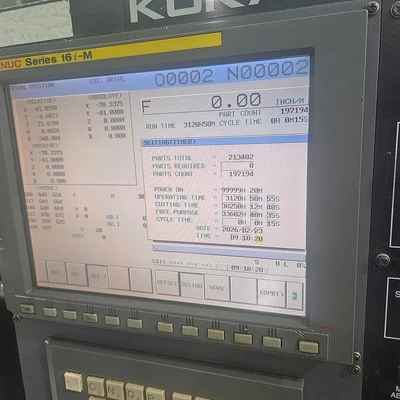

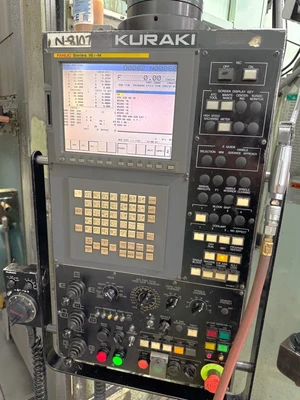

The 2003 Kuraki KBT-13E.A CNC table type horizontal boring mill offers advanced functionality with its full 4th axis table and CNC control by Fanuc 16iMB. Designed for precision and versatility, it features a substantial table size of 70.87" x 86.61" capable of accommodating up to 20,000 lbs. The machine provides extensive travel with X, Y, Z, and W axes covering 157.48", 90.55", 51.18", and 25.59" respectively, ensuring ample machining versatility.

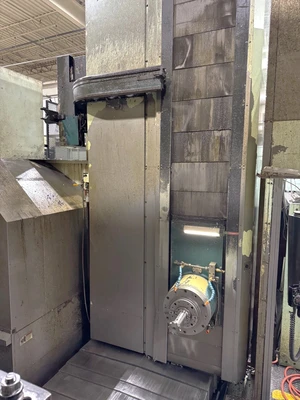

Equipped with a powerful 60 HP spindle motor operating at speeds ranging from 5 to 4,000 RPM, it allows for efficient cutting operations using the BT #50 spindle taper. The 60 station automatic tool changer enhances productivity by reducing manual interference, while the machine's rapid traverse rates of 394 IPM and cutting feedrates of 157 IPM contribute to brisk operations. Coolant through spindle functionality aids in maintaining temperature during extended machining processes.

With overall machine dimensions of 269" x 268" x 190" and weighing 81,300 lbs., this sturdy piece of equipment is suitable for large-scale industrial applications. Whether machining complex parts or heavy workpieces, the Kuraki KBT-13E.A stands out as a reliable choice for precision engineering tasks.
