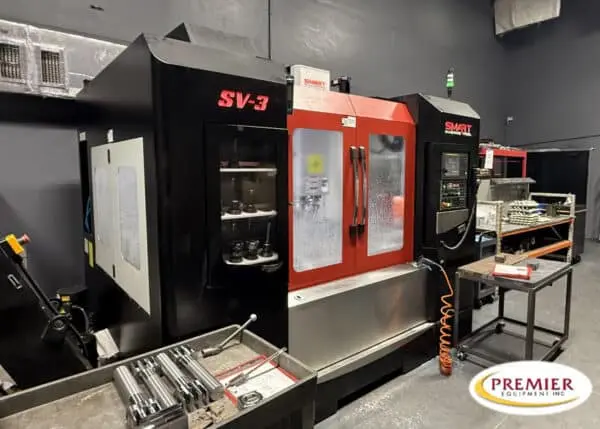

Smart Machine Tool SV-3 with Rotary Table – **2022
Overview
**2022 Smart Machine Tool SV3 CNC Mill
CNC Vertical Machining Center
Specs
TABLE SIZE: 49.21” x 23.62”
Table Load Capacity: 2,205 lbs
X TRAVEL: 43.31”
Y TRAVEL: 24.62”
Z TRAVEL: 23.62”
Distance from Table Top to Spindle Nose: 5.91” – 29.53”
Distance from Colu8mn to Spindle Center: 25.59”
SPINDLE TAPER: CAT40 (BIG PLUS)
SPINDLE SPEED: 10,000 RPM
SPINDLE HP: 20/25 HP
Spindle Torque: 94 ft-lbs (30 min)
Rapids (XYZ): 1417 IPM
Cutting Feerate: 394 IPM
MAGAZINE CAPACITY: 30
Floor Space (L x W x H) : 156” x 93” (Including Chip Conveyor)
Equipped With
Fanuc system 0i-MF CNC control
10,000 RPM Spindle
30 Tool Double Arm ATC
Full Enclosed Splash Guard
Coolant Bed Flush
Rigid Tapping
Big Plus Spindle
Manual Guide i
Lift Up Conveyor
Renishaw Receiver and GUI Software
CTS Prep
4 Axis Prep
Renishaw Probe and Tool Setter
High Speed Machining, 200 look ahead
Smart Model CNC-250R Rotary Table
290 PSI Coolant Thru Spindle
**Purchased and Installed New in 2022
