USED PARKER 5-945-135

Manufacturer Information
Parker Freeze Dry
Parker Freeze Dry manufactures commercial and production-scale freeze-drying equipment for food, ingredients, agricultural products, and other compatible materials. Freeze dryers remove moisture through controlled freezing and vacuum sublimation, helping produce shelf-stable products while preserving many desirable product characteristics.
This custom Parker Freeze Dry Model 5-945-135 is a large production system with an approximately 2,700-liter chamber, five heated product carts, 270 aluminum trays, a dual-phase Busch vacuum system, and an outdoor refrigeration/cooling package.
Description

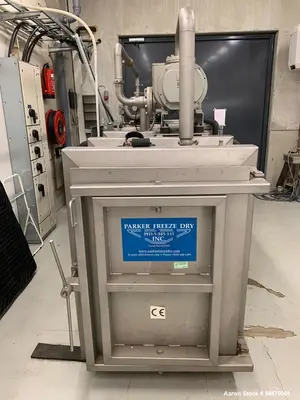

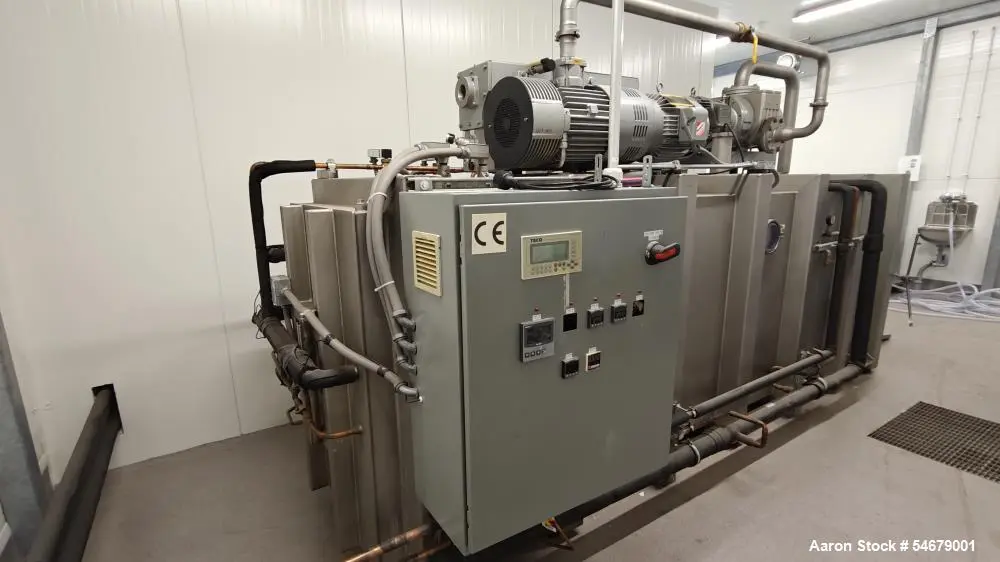

Available for sale is a used Parker Freeze Dry custom production freeze dryer, Model 5-945-135, featuring an approximately 2,700-liter chamber and a nominal 453 kg ice condenser capacity.

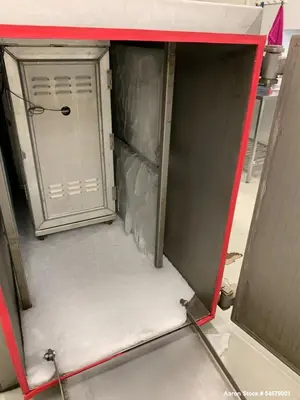

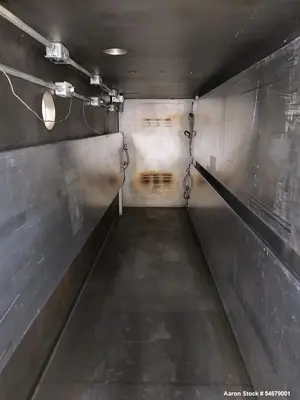

Internal chamber dimensions are approximately 1,200 mm x 850 mm x 3,400 mm. Product handling is provided by five carts, each containing 27 heated shelves and having an approximate stated product capacity of 100 kg per cart. This provides 135 heated shelves across the five carts.
Two complete tray sets are included, consisting of 135 aluminum 18" x 26" trays per set, for 270 trays total.

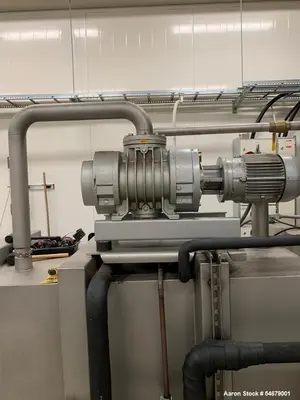

Vacuum is provided by a dual-phase Busch system incorporating an RA0255 main vacuum pump and WV1500 booster pump. The vacuum system was overhauled in 2021 and serviced in 2023.

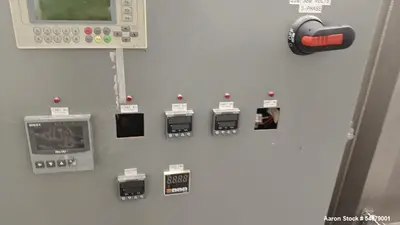

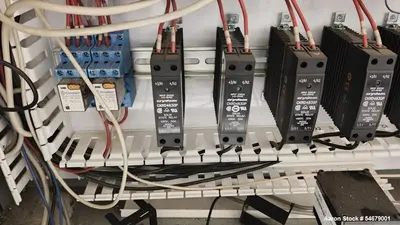

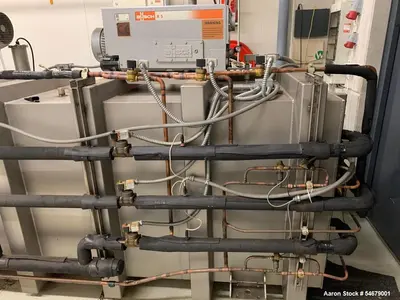

Process heat is managed through a programmable West ProVU heat control system with four West 6100+ controllers and bus control. The package also includes an outdoor cooling unit with refrigeration and hot-gas de-icing. The refrigeration compressor is reported to have undergone rebuild/overhaul work in 2022/2025.
The system is CE-marked and operates on 400V, 50 Hz, 3-phase electrical service. Potential applications include production-scale freeze drying of compatible foods, pet treats, nutraceutical products, specialty ingredients, and agricultural materials.
Specifications

Specification
Details

Manufacturer
Parker Freeze Dry

Model
5-945-135

Equipment Type
Production Freeze Dryer / Lyophilizer

Condition
Used

Chamber Capacity
Approx. 2,700 L

Internal Chamber Dimensions
Approx. 1,200 x 850 x 3,400 mm

Ice Condenser Capacity
Nominal 453 kg

Product Carts
(5)

Heated Shelves Per Cart
(27)

Total Heated Shelves
(135)

Approx. Product Capacity Per Cart
100 kg

Trays
(270) Total

Tray Size
18" x 26"

Tray Construction
Aluminum

Tray Sets
(2) Complete Sets of 135

Main Vacuum Pump
Busch RA0255

Main Pump Electrical
Max. 25A at 400V

Booster Pump
Busch WV1500

Booster Electrical
Max. 20A at 400V

Vacuum System Service
Overhauled 2021; Serviced 2023

Heat Controls
West ProVU Programmable System

Controllers
(4) West 6100+

Control Configuration
Bus Control

Cooling System
Outdoor Refrigeration Unit

De-Icing
Hot-Gas De-Icing

Compressor Service
Rebuilt / Overhauled 2022/2025

Certification Marking
CE-Marked

Electrical
400V / 50 Hz / 3-Phase

Typical Applications

Production-scale freeze drying
Food dehydration
Pet food freeze drying
Nutraceutical processing
Specialty ingredient drying
Agricultural product preservation
High-value food preservation
Low-temperature moisture removal
Batch lyophilization
Shelf-stable product manufacturing
Specialty food processing
Commercial freeze-dried product production

Products This Freeze Dryer Could Be Used For

Freeze-dried fruits
Freeze-dried vegetables
Meat products
Pet food
Pet treats
Nutraceutical ingredients
Specialty food ingredients
Herbs
Agricultural products
Prepared food components
High-value specialty ingredients
Other compatible freeze-dried products

Actual batch capacity, cycle time, final moisture, and product suitability depend on product composition, initial moisture, loading depth, freezing conditions, shelf temperature, vacuum profile, condenser loading, and validated process parameters.
Frequently Asked Questions

How large is the freeze-drying chamber? The chamber has an approximate volume of 2,700 liters, with internal dimensions of approximately 1,200 mm x 850 mm x 3,400 mm.

What is the ice condenser capacity? The system has a stated nominal ice condenser capacity of approximately 453 kg.

How much product handling equipment is included? The system includes five product carts with 27 heated shelves each, for 135 shelves total. Each cart has an approximate stated product capacity of 100 kg.

How many trays are included? Two complete sets of 135 aluminum 18" x 26" trays are included, providing 270 trays total.

Has the vacuum and refrigeration equipment been serviced? The Busch vacuum system was overhauled in 2021 and serviced in 2023. The refrigeration compressor is reported to have been rebuilt/overhauled in 2022/2025.

Can Aaron Equipment assist with shipping and logistics? Yes. This is a substantial multi-component production system. Aaron Equipment can assist with dismantling and rigging coordination, loading, domestic and international freight, customs documentation, and logistics planning for the freeze dryer, carts, vacuum equipment, cooling system, trays, and associated components.
