USED KLOCKNER/MOELLER NZM6B/ZM6-63-CNA

The Klockner/Moeller NZM6B/ZM6-63-CNA (catalog designation NZM6B-63/ZM6-63) is a 3-pole molded case circuit breaker (MCCB) built on a 63A frame and equipped with the ZM6-63 adjustable thermal-magnetic trip module. It provides adjustable thermal overload protection from 40–63A and adjustable magnetic (instantaneous) short-circuit protection from 400–800A, making it well-suited for motor branch circuit protection, feeder circuits, and main switchboard applications. Conforming to IEC/EN 60947-2, UL 489, and CSA C22.2 No. 5.1, this breaker is designed for demanding industrial environments including mining, pulp & paper, food processing, nuclear power, and marine applications. Currently manufactured by Eaton Corporation (formerly Klockner/Moeller).
Specification
Value
Brand
Klockner/Moeller
Model / Part Number
NZM6B/ZM6-63 (NZM6B-63/ZM6-63)
Product Type
Molded Case Circuit Breaker (MCCB)
Frame / Continuous Current Rating
63A
Number of Poles
3-Pole
Rated Voltage (AC)
600V AC (rated up to 690V AC)
Frequency
50/60 Hz
Trip Module

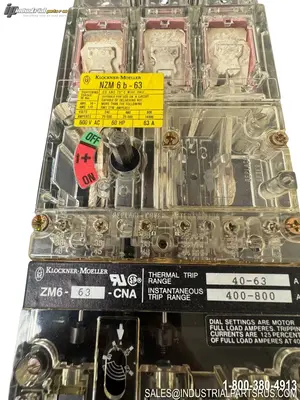

ZM6-63 — Adjustable Thermal-Magnetic
Thermal Trip Range (Overload)
40–63A (Adjustable)
Magnetic Trip Range (Instantaneous)
400–800A (Adjustable)
Short-Circuit Interrupting Capacity @ 240V/480V
25kA
Short-Circuit Interrupting Capacity @ 600V
14kA
HP Rating — 3-Phase @ 230V
20 HP
HP Rating — 3-Phase @ 460V
40 HP
HP Rating — 3-Phase @ 575–600V
60 HP
Trip Type
Inverse Time, Thermal-Magnetic
Standards / Certifications
UL 489, CSA C22.2 No. 5.1, IEC/EN 60947-2, CE Marked
Terminal Type
Cable / Field-Wiring Terminals (Line & Load)
Operating Handle
Sold Separately
Series / Product Family
NZM6 / NZM6B
Manufacturer (Current)
Eaton Corporation (formerly Klockner/Moeller)
Typical Applications
Motor Protection, Feeder Circuits, Main Switchboards
We warranty all items for 30 days from date of purchase.
